ATS-HE20 Series

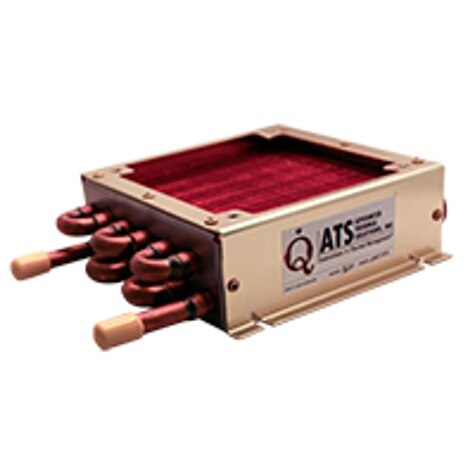

Heat Exchangers Heat Exchanger with No Fan, Tube to Fin, Liquid-to-Air, 147x147x45mm (LxWxH)

Part	Attachment Method	Power - Cooling	Weight	Voltage	Product Type	Dimensions - Overall Length	Dimensions - Overall Width	Dimensions - Overall Height
Advanced Thermal Solutions Inc. ATS-HE22-C6-R0	Bolt On	64 W	6.3 lbs	48 V	Active Heat Exchanger	10.06 in	9.04 in	2.64 in
Advanced Thermal Solutions Inc. ATS-HE22-C2-R0	Bolt On	64 W	6.3 lbs	12 VDC	Active Heat Exchanger	10.06 in	9.04 in	2.64 in
Advanced Thermal Solutions Inc. ATS-HE22-C4-R0	Bolt On	64 W	6.3 lbs	24 V	Active Heat Exchanger	10.06 in	9.04 in	2.64 in
Advanced Thermal Solutions Inc. ATS-HE22-C7-R0	Bolt On	64 W	6.3 lbs	48 V	Active Heat Exchanger	10.06 in	9.04 in	2.64 in
Advanced Thermal Solutions Inc. ATS-HE22-C3-R0	Bolt On	64 W	6.3 lbs	12 VDC	Active Heat Exchanger	10.06 in	9.04 in	2.64 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

3D models and CAD resources for this part

Technical documentation and resources
