AI-50150N
ActiveMueller Electric Co

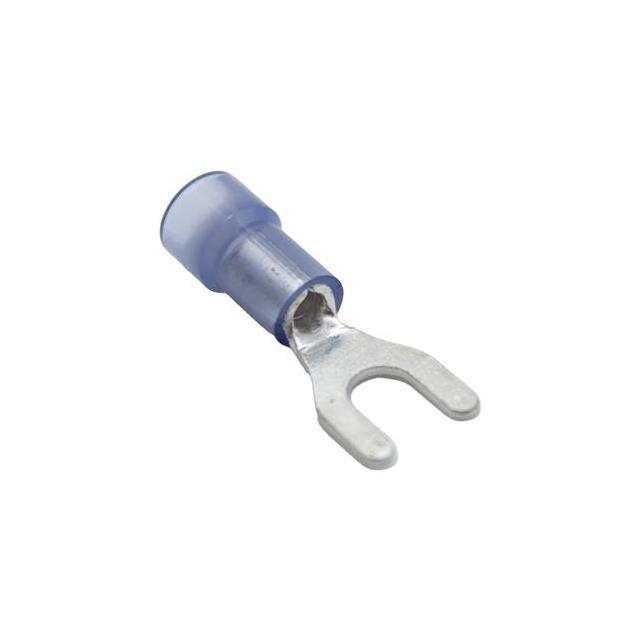

FORK / SPADE TONGUE TERMINAL, 16AWG TO 14AWG, #8, NYLON (POLYAMIDE)
AI-50150N
ActiveMueller Electric Co
FORK / SPADE TONGUE TERMINAL, 16AWG TO 14AWG, #8, NYLON (POLYAMIDE)
Description
General part information
AI-50150N
Blue 8 Stud Spade Terminal Connector Crimp 14-16 AWG
Technical Specifications
Parameters and characteristics for this part
| Specification | AI-50150N |
|---|---|
| Color | Blue |
| Contact Finish | Electro-Tin |
| Contact Material | Copper Alloy |
| Insulation | Insulated |
| Length - Overall | 0.95 in |
| Length - Ring Center to Termination | 0.303 in |
| Material - Insulation | Polyamide, PA, Nylon |
| Mounting Type | Free Hanging (In-Line) |
| Stud/Tab Size | 8 Stud |
| Terminal Type | Standard |
| Termination | Crimp |
| Tongue Inside Opening | 0.175 in |
| Width - Outer Edges | 0.344 in |
| Wire Gauge (AWG) (Max) | 16 AWG |
| Wire Gauge (AWG) (Min) | 14 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
