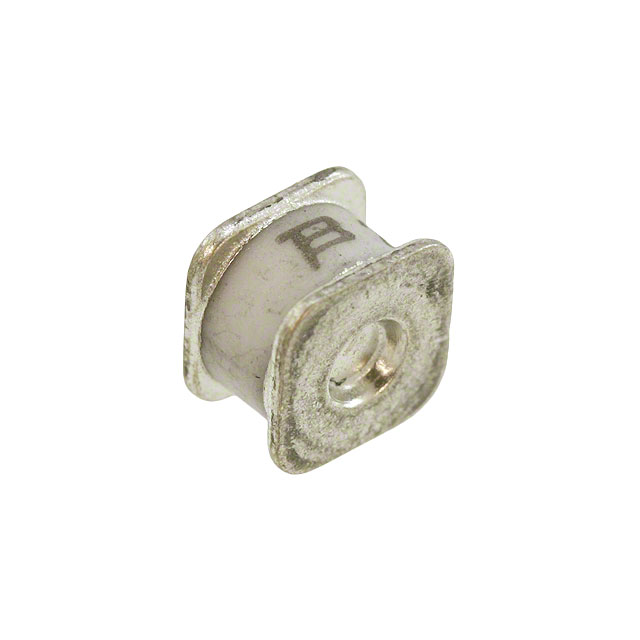

2093-250-SM-RPLF - 2093-250-SM-RPLF

2093-250-SM-RPLF

Active
Bourns Inc.

GAS DISCHARGE TUBE (GDT), HIGH VOLTAGE, 2093 SERIES, 2.5 KV, SMD, 5 KA, 3.2 KV

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet
2093-250-SM-RPLF - 2093-250-SM-RPLF

2093-250-SM-RPLF

Active
Bourns Inc.

GAS DISCHARGE TUBE (GDT), HIGH VOLTAGE, 2093 SERIES, 2.5 KV, SMD, 5 KA, 3.2 KV

Deep-Dive with AI

DocumentsDatasheet

Technical Specifications

Parameters and characteristics for this part

Specification2093-250-SM-RPLF
Fail ShortFalse
Impulse Discharge Current (8/20µs)3000 A
Impulse Discharge Current (8/20µs)3 kA
Mounting TypeSurface Mount
Number of Poles2
Package / Case2-SMD Cylinder Square End
Tolerance20 %
Voltage - DC Spark Over (Nom)2500 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyCut Tape (CT) 1$ 1.43
5$ 1.19
10$ 1.09
50$ 0.91
100$ 0.84
250$ 0.75
Digi-Reel® 1$ 1.43
5$ 1.19
10$ 1.09
50$ 0.91
100$ 0.84
250$ 0.75
Tape & Reel (TR) 800$ 0.66
1600$ 0.61
2400$ 0.58
4000$ 0.54
5600$ 0.52
8000$ 0.51
NewarkEach (Supplied on Cut Tape) 500$ 0.70

Description

General part information

2093-250-SM-RPLF

Gas Discharge Tube 2500 V 3000A (3kA) ±20% 2 Pole Surface Mount

Documents

Technical documentation and resources

Datasheet

Datasheet
