A3CKB-1418M
ActiveTE Connectivity AMP Connectors
IDC CABLE - AKC14B/AE14M/APK14B
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsRibbon Cable Assembly Length Guide
A3CKB-1418M
ActiveTE Connectivity AMP Connectors
IDC CABLE - AKC14B/AE14M/APK14B
Deep-Dive with AI
DocumentsRibbon Cable Assembly Length Guide
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | A3CKB-1418M | A3CKB Series |
|---|---|---|
| Cable Termination | IDC | IDC |
| Color | Ribbon, Multiple | Ribbon, Multiple |
| Connector Type | Socket to Plug | Socket to Plug |
| Contact Finish | Gold | Gold |
| Contact Finish Thickness | 0.76 Ám | 0.76 Ám |
| Contact Finish Thickness | 30 Áin | 30 Áin |
| Features | Polarizing Key | Polarizing Key |
| Length | - | 152.4 mm |
| Length | - | 6 " |
| Length | - | 0.5 ' |
| Length [x] | 457.2 mm | 457.2 - 914.4 mm |
| Length [x] | 1.5 ft | 1.5 - 3 ft |
| Number of Positions | 14 | 10 - 64 |
| Number of Positions | - | 16 |
| Number of Rows | 2 | 2 |
| Pitch - Cable | 0.05 " | 0.05 " |
| Pitch - Cable | 1.27 mm | 1.27 mm |
| Pitch - Connector | 0.1 in | 0.1 in |
| Pitch - Connector | 2.54 mm | 2.54 mm |
| Shielding | Unshielded | Unshielded |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 18.06 | |
| 10 | $ 14.96 | |||
| 25 | $ 13.89 | |||
| 50 | $ 13.13 | |||
| 100 | $ 12.41 | |||
| 250 | $ 11.52 | |||
| 500 | $ 10.90 | |||
A3CKB Series
IDC CABLE - AKC34B/AE34G/APK34B
| Part | Cable Termination | Connector Type | Pitch - Connector | Pitch - Connector | Pitch - Cable | Pitch - Cable | Length [x] | Length [x] | Contact Finish | Number of Positions | Contact Finish Thickness | Contact Finish Thickness | Color | Features | Number of Rows | Shielding | Number of Positions | Length | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors A3CKB-3436M | IDC | Socket to Plug | 0.1 in | 2.54 mm | 0.05 " | 1.27 mm | 3 ft | 914.4 mm | Gold | 34 | 0.76 Ám | 30 Áin | Multiple, Ribbon | Polarizing Key | 2 | Unshielded | ||||
TE Connectivity AMP Connectors A3CKB-1418M | IDC | Socket to Plug | 0.1 in | 2.54 mm | 0.05 " | 1.27 mm | 1.5 ft | 457.2 mm | Gold | 14 | 0.76 Ám | 30 Áin | Multiple, Ribbon | Polarizing Key | 2 | Unshielded | ||||
TE Connectivity AMP Connectors A3CKB-1036M | IDC | Socket to Plug | 0.1 in | 2.54 mm | 0.05 " | 1.27 mm | 3 ft | 914.4 mm | Gold | 10 | 0.76 Ám | 30 Áin | Multiple, Ribbon | Polarizing Key | 2 | Unshielded | ||||
TE Connectivity AMP Connectors A3CKB-3018M | IDC | Socket to Plug | 0.1 in | 2.54 mm | 0.05 " | 1.27 mm | 1.5 ft | 457.2 mm | Gold | 30 | 0.76 Ám | 30 Áin | Multiple, Ribbon | Polarizing Key | 2 | Unshielded | ||||
TE Connectivity AMP Connectors A3CKB-6418G | IDC | Socket to Plug | 0.1 in | 2.54 mm | 0.05 " | 1.27 mm | 1.5 ft | 457.2 mm | Gold | 64 | 0.76 Ám | 30 Áin | Polarizing Key | 2 | Unshielded | |||||
TE Connectivity AMP Connectors A3CKB-1436M | IDC | Socket to Plug | 0.1 in | 2.54 mm | 0.05 " | 1.27 mm | 3 ft | 914.4 mm | Gold | 14 | 0.76 Ám | 30 Áin | Multiple, Ribbon | Polarizing Key | 2 | Unshielded | ||||
TE Connectivity AMP Connectors A3CKB-4036M | IDC | Socket to Plug | 0.1 in | 2.54 mm | 0.05 " | 1.27 mm | 3 ft | 914.4 mm | Gold | 40 | 0.76 Ám | 30 Áin | Multiple, Ribbon | Polarizing Key | 2 | Unshielded | ||||
TE Connectivity AMP Connectors A3CKB-2018G | IDC | Socket to Plug | 0.1 in | 2.54 mm | 0.05 " | 1.27 mm | 1.5 ft | 457.2 mm | Gold | 20 | 0.76 Ám | 30 Áin | Polarizing Key | 2 | Unshielded | |||||
TE Connectivity AMP Connectors A3CKB-2618G | IDC | Socket to Plug | 0.1 in | 2.54 mm | 0.05 " | 1.27 mm | 1.5 ft | 457.2 mm | Gold | 26 | 0.76 Ám | 30 Áin | Polarizing Key | 2 | Unshielded | |||||
TE Connectivity AMP Connectors A3CKB-1636M | IDC | Socket to Plug | 0.1 in | 2.54 mm | 0.05 " | 1.27 mm | 3 ft | 914.4 mm | Gold | 0.76 Ám | 30 Áin | Multiple, Ribbon | Polarizing Key | 2 | Unshielded | 16 |
Description
General part information
A3CKB Series

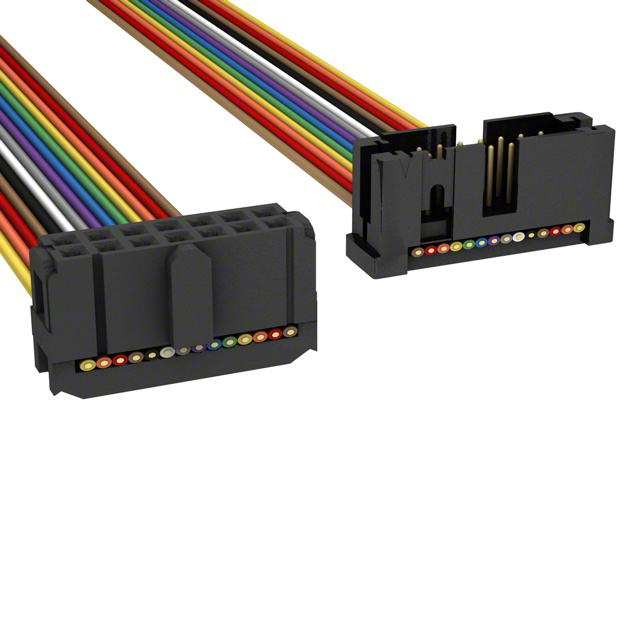

14 Position Cable Assembly Rectangular Socket to Plug 1.50' (457.20mm)
