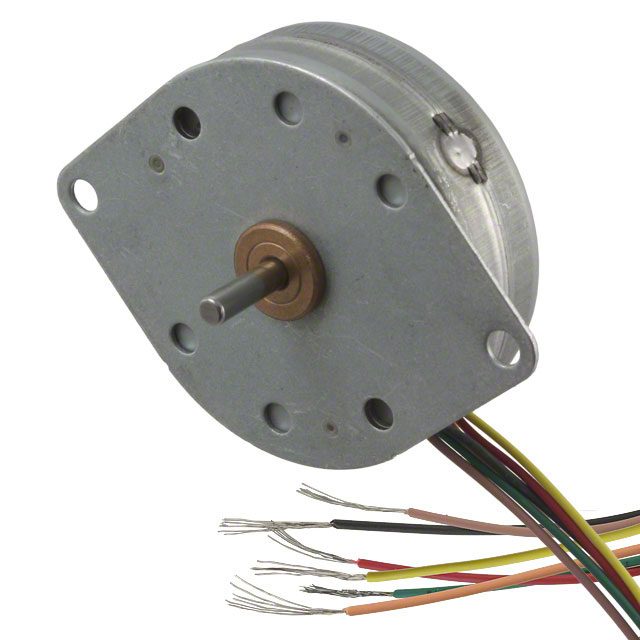

42S048D2U
ActivePortescap
STEPPER MOTOR PM UNIPOLAR 12V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
42S048D2U
ActivePortescap
STEPPER MOTOR PM UNIPOLAR 12V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 42S048D2U |
|---|---|
| Accuracy | 15 % |
| Coil Resistance | 75 Ohms |
| Coil Type | Unipolar |
| Current Rating (Amps) | 160 mA |
| Diameter - Shaft [diameter] | 3 mm |
| Diameter - Shaft [diameter] | 0.118 in |
| Features | Round Shaft |
| Length - Shaft and Bearing [x] | 11.43 mm |
| Length - Shaft and Bearing [x] | 0.45 " |
| Mounting Hole Spacing | 1.95 in |
| Mounting Hole Spacing | 49.48 mm |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 C |
| Rotor Inertia | 9.5 gcm˛ |
| Size / Dimension [diameter] | 42 mm |
| Size / Dimension [diameter] | 1.65 in |
| Step Angle | 7.5 ° |
| Termination Style | Wire Leads |
| Torque - Holding (oz-in / mNm) | 44.5 mNm |
| Torque - Holding (oz-in / mNm) | 6.3 oz-in |
| Type | Permanent Magnet |
| Voltage - Rated | 12 VDC |
| Weight | 87.54 g |
| Weight | 0.193 lb |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
42S048 Series
Unipolar Stepper Motor Permanent Magnet Frame Size 48.0 Step 160 mA 12VDC
