100025457
ActiveTelegartner Inc
2.2-5 PLG STR SD/SD S G10
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
100025457
ActiveTelegartner Inc

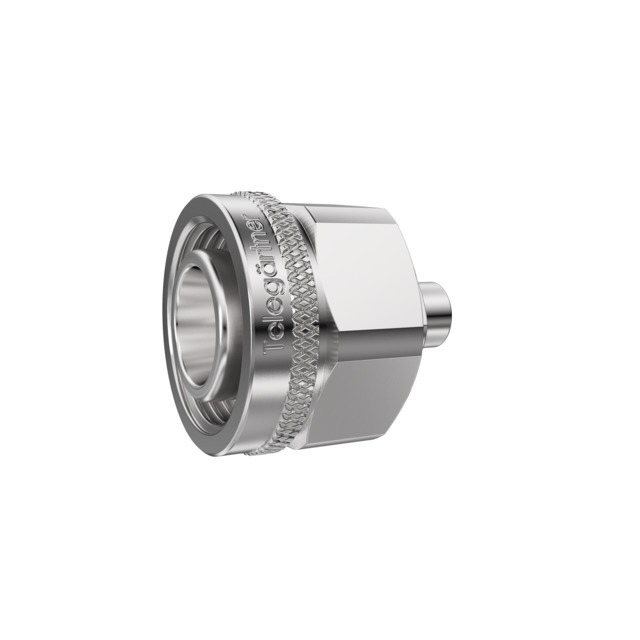

2.2-5 PLG STR SD/SD S G10
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 100025457 |
|---|---|
| Body Finish | Silver |
| Cable Group | RG-402 |
| Center Contact Plating | Silver |
| Connector Style | 2.2/5 |
| Connector Type | Male Pin, Plug |
| Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Frequency - Max [Max] | 6000 MHz |
| Housing Color | Silver |
| Impedance | 50 Ohms |
| Ingress Protection | IP68 - Dust Tight, Waterproof |
| Mounting Type | Free Hanging (In-Line) |
| Number of Ports | 1 |
| Operating Temperature [Max] | 90 °C |
| Operating Temperature [Min] | -55 °C |
| Shield Termination | Solder |
| Voltage Rating | 1000 VDC |
J01460A0 Series
| Part | Body Finish | Shield Termination | Housing Color | Connector Style | Impedance | Frequency - Max [Max] | Connector Type | Center Contact Plating | Ingress Protection | Dielectric Material | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Number of Ports | Contact Termination | Cable Group | Cable Group | Voltage Rating | Center Contact Material | Body Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Telegartner Inc | White Bronze | Clamp | Silver | 2.2/5 | 50 Ohms | 3 GHz | Male Pin Plug | Silver | IP68 - Dust Tight Waterproof | Polytetrafluoroethylene (PTFE) | Free Hanging (In-Line) | 85 °C | -40 °C | 1 | Crimp Solder | |||||
Telegartner Inc | White Bronze | Clamp | Silver | 2.2/5 | 50 Ohms | 5 GHz | Male Pin Plug | Silver | IP67 - Dust Tight Waterproof | Polytetrafluoroethylene (PTFE) | Free Hanging (In-Line) | 90 °C | -55 °C | 1 | Crimp Solder | 0.25 in | Flex | |||
Telegartner Inc | Silver | Solder | Silver | 2.2/5 | 50 Ohms | 6000 MHz | Male Pin Plug | Silver | IP68 - Dust Tight Waterproof | Polytetrafluoroethylene (PTFE) | Free Hanging (In-Line) | 90 °C | -55 °C | 1 | Solder | 1000 VDC | ||||
Telegartner Inc | Silver | Solder | Silver | 2.2/5 | 50 Ohms | 6000 MHz | Male Pin Plug | Silver | IP68 - Dust Tight Waterproof | Polytetrafluoroethylene (PTFE) | Free Hanging (In-Line) | 90 °C | -55 °C | 1 | Solder | RG-402 | 1000 VDC | |||
Telegartner Inc | Silver | Solder | Silver | 2.2/5 | 50 Ohms | 6000 MHz | Male Pin Plug | Silver | IP68 - Dust Tight Waterproof | Polytetrafluoroethylene (PTFE) | Free Hanging (In-Line) Right Angle | 90 °C | -55 °C | 1 | Solder | RG-401 | Brass | Brass |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 17.14 | |
| 5 | $ 16.28 | |||
| 10 | $ 15.42 | |||
| 25 | $ 14.74 | |||
| 50 | $ 13.54 | |||
| 100 | $ 13.20 | |||
| 250 | $ 12.43 | |||
Description
General part information
J01460A0 Series
2.2/5 Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Solder
