Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | X-NUCLEO-53L1A1 | VL53L1 Series |
|---|---|---|
| - | - | |
| Contents | Accessories, Board(s) | Accessories, Board(s) |
| Function | Light, 3D Time-of-Flight (ToF) | Light, 3D Time-of-Flight (ToF) |
| Interconnect System | Arduino R3 Shield | Arduino R3 Shield |
| Operating Temperature | - | 85 °C |
| Operating Temperature | - | -20 C |
| Output Type | - | I2C |
| Platform | Nucleo | Nucleo |
| Sensing Distance | - | 314.96 in |
| Sensing Distance | - | 8 m |
| Suggested Programming Environment | STM32Cube | STM32Cube |
| Type | Sensor | Sensor |
| Utilized IC / Part | VL53L1CX | VL53L1CX |
| Voltage - Supply | - | 3.5 V |
| Voltage - Supply | - | 2.6 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 34.80 | |
VL53L1 Series
Time-of-Flight (ToF) long-distance ranging sensor with advanced multizone and multiobject detection
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Output Type | Sensing Distance | Sensing Distance | Voltage - Supply [Max] | Voltage - Supply [Min] | Contents | Platform | Suggested Programming Environment | Function | Type | Utilized IC / Part | Interconnect System |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
STMicroelectronics VL53L1CBV0FY/1 | 85 °C | -20 C | I2C | 314.96 in | 8 m | 3.5 V | 2.6 V | |||||||
STMicroelectronics VL53L1CBV0FY/1 | ||||||||||||||
STMicroelectronics VL53L1CBV0FY/1 | ||||||||||||||
STMicroelectronics VL53L1CBV0FY/1 | ||||||||||||||

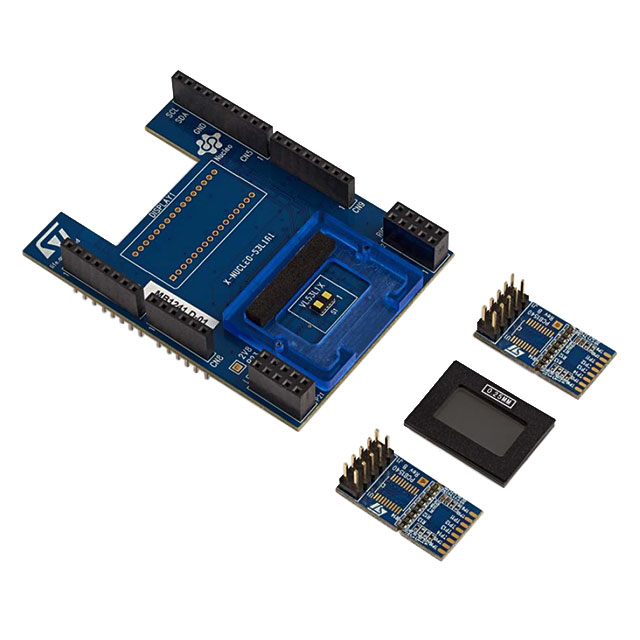

STMicroelectronics X-NUCLEO-53L1A1 | Accessories, Board(s) | Nucleo | STM32Cube | Light, 3D Time-of-Flight (ToF) | Sensor | VL53L1CX | Arduino R3 Shield | |||||||
STMicroelectronics X-NUCLEO-53L1A1 |
Description
General part information
VL53L1 Series
The VL53L1 is a laser-ranging ToF sensor. It covers applications requiring long distance ranging up to 800 cm (ranging mode), multizone ranging (scanning mode), and low-power (autonomous mode). A comprehensive application note (AN5573) provides technical details on the programming interface including its bare driver. The API (application programming interface) enables the device to be controlled and managed in these three modes, to meet the requirements of all applications.
With patented algorithms and ingenious module construction, the VL53L1 is also able to detect different objects within the FoV (field of view). Its depth information (histogram) is at 60 Hz.
Scene browsing and multizone detection are now possible with the VL53L1, thanks to a software customizable detection array. This provides a quicker "touch-to-focus", or minidepth map use cases.
