1217243-1
ActiveTE Connectivity AMP Connectors

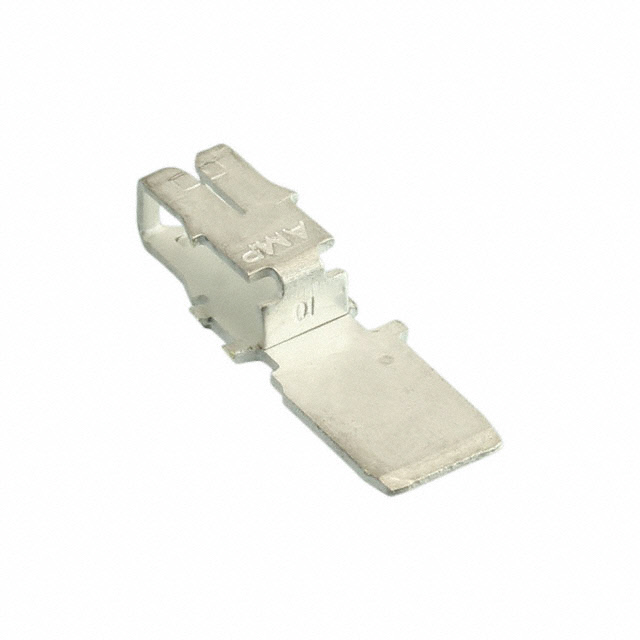

CONN MAG TERM 23-27AWG QC 0.187
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1217243-1
ActiveTE Connectivity AMP Connectors
CONN MAG TERM 23-27AWG QC 0.187
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 1217243-1 |
|---|---|
| Features | QC .187 |
| Size | 2 Liter |
| Style | 300 |
| Terminal Type | Box IDC |
| Termination | Quick Connect |
| Wire Gauge [Max] | 27 AWG |
| Wire Gauge [Min] | 23 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.23 | |
| 10 | $ 0.19 | |||
| 25 | $ 0.18 | |||
| 50 | $ 0.17 | |||
| 100 | $ 0.17 | |||
| 250 | $ 0.15 | |||
| 500 | $ 0.15 | |||
| 1000 | $ 0.14 | |||
| 2500 | $ 0.13 | |||
| Tape & Reel (TR) | 13000 | $ 0.12 | ||
| 26000 | $ 0.11 | |||
| 39000 | $ 0.11 | |||
| 65000 | $ 0.10 | |||
| 91000 | $ 0.10 | |||
1217243 Series
CONN MAG TERM 23-27AWG QC 0.187
| Part | Termination | Wire Gauge [Min] | Wire Gauge [Max] | Terminal Type | Features | Size | Style |
|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 1217243-1 | Quick Connect | 23 AWG | 27 AWG | Box IDC | QC .187 | 2 Liter | 300 |
Description
General part information
1217243 Series
Terminal Magnetic Connector 300 23-27 AWG Quick Connect
Documents
Technical documentation and resources
