CS45SL2GA220JAGKA
ActiveTDK Corporation
SUPPRESSION CAPACITOR, 22PF, X1/Y2 ROHS COMPLIANT: YES
CS45SL2GA220JAGKA
ActiveTDK Corporation
SUPPRESSION CAPACITOR, 22PF, X1/Y2 ROHS COMPLIANT: YES
Description
General part information
CS45SL2GA220JAGKA

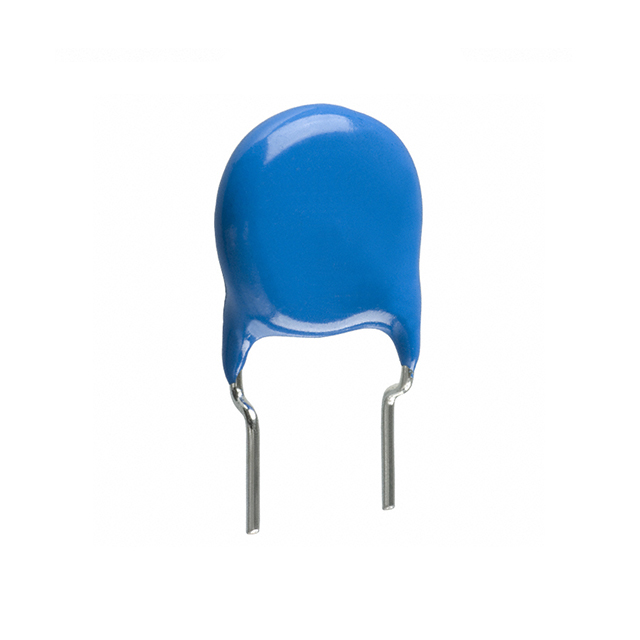

22 pF ±5% 300VAC/440VAC Ceramic Capacitor SL Radial, Disc
Technical Specifications
Parameters and characteristics for this part
| Specification | CS45SL2GA220JAGKA |
|---|---|
| Applications | Automotive, Safety |
| Capacitance | 22 pF |
| Features | High Voltage |
| Height - Seated (Max) | 0.433 in |
| Lead Spacing | 0.295 in |
| Lead Style | Formed Leads - Kinked |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Disc, Radial |
| Ratings | AEC-Q200, Y2, X1 |
| Size / Dimension Diameter | 0.276 in |
| Temperature Coefficient | SL |
| Tolerance | 5 % |
| Voltage - Rated (Option 1) | 300 VAC |
| Voltage - Rated (Option 2) | 440 VAC |
