APFC146-112-90/550V-CE
ActiveSelec Controls USA Inc.

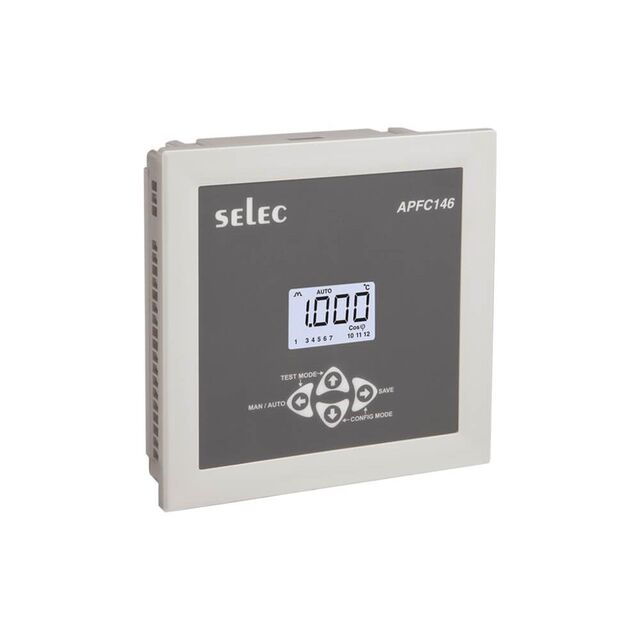

POWER FACTOR CONTROLLER WITH 1CT
APFC146-112-90/550V-CE
ActiveSelec Controls USA Inc.
POWER FACTOR CONTROLLER WITH 1CT
Description
General part information
APFC146-112-90/550V-CE
Multifunction Meter LCD - Black Characters, Backlight Display Panel Mount - Bezel
Technical Specifications
Parameters and characteristics for this part
| Specification | APFC146-112-90/550V-CE |
|---|---|
| Display Type | LCD - Black Characters, Backlight |
| Measuring Range (Current) Maximum | 6 A |
| Measuring Range (Current) Minimum | 0.05 A |
| Measuring Range (Frequency) Maximum | 65 Hz |
| Measuring Range (Frequency) Minimum | 45 Hz |
| Measuring Type | Current, Frequency, Voltage |
| Measuring Voltage Range (Maximum) | 520 V |
| Measuring Voltage Range (Minimum) | 50 V |
| Mounting Type | Panel Mount - Bezel |
| Number of Characters Per Row | 4 characters |
| Operating Temperature (Max) | 60 °C |
| Operating Temperature (Min) | 0 °C |
| Output Type | Relay |
| Panel Cutout Length | 138 mm |
| Panel Cutout Shape | Square |
| Panel Cutout Width | 138 mm |
| Termination Style | Screw Terminal |
| Type | Multifunction Meter |
| Voltage - Supply (Maximum) | 550 VAC |
| Voltage - Supply (Minimum) | 90 VAC |
