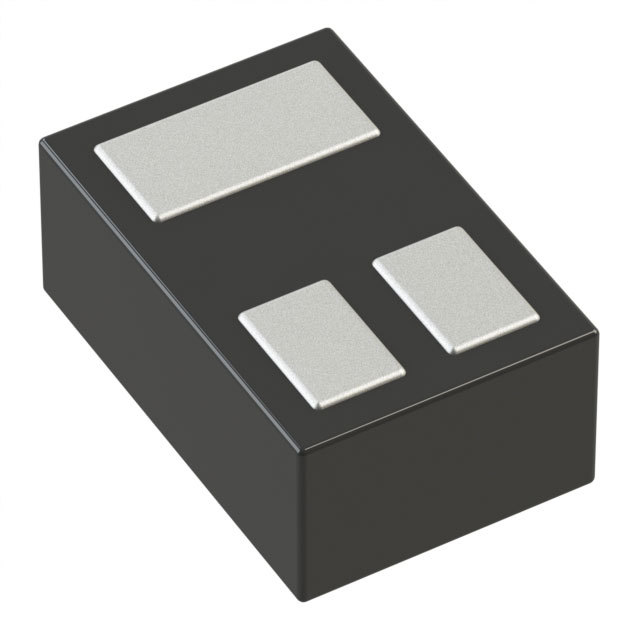

T5V0DLP-7B

Active

Diodes Inc

TVS DIODE 5VWM 12.5VC DFN1006-3

Search across all available documentation for this part.

Active

Diodes Inc

TVS DIODE 5VWM 12.5VC DFN1006-3

Technical Specifications

Parameters and characteristics for this part

Specification	T5V0DLP-7B

Applications	General Purpose
Capacitance @ Frequency	9 pF
Mounting Type	Surface Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C
Package / Case	3-UFDFN
Power - Peak Pulse	25 W
Power Line Protection	False
Supplier Device Package	X1-DFN1006-3
Type	Zener
Unidirectional Channels	2
Voltage - Breakdown (Min) [Min]	6.1 V
Voltage - Clamping (Max) @ Ipp [Max]	12.5 V
Voltage - Reverse Standoff (Typ)	5 V

Low Capacitance TVS Diode

Part	Power - Peak Pulse	Type	Unidirectional Channels	Mounting Type	Voltage - Clamping (Max) @ Ipp [Max]	Package / Case	Supplier Device Package	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Reverse Standoff (Typ)	Power Line Protection	Voltage - Breakdown (Min) [Min]	Applications	Capacitance @ Frequency
Diodes Inc T5V0DLP-7B	25 W	Zener	2	Surface Mount	12.5 V	3-UFDFN	X1-DFN1006-3	-55 °C	150 °C	5 V		6.1 V	General Purpose	9 pF

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

LOW CAPACITANCE SURFACE MOUNT DUAL TVS
