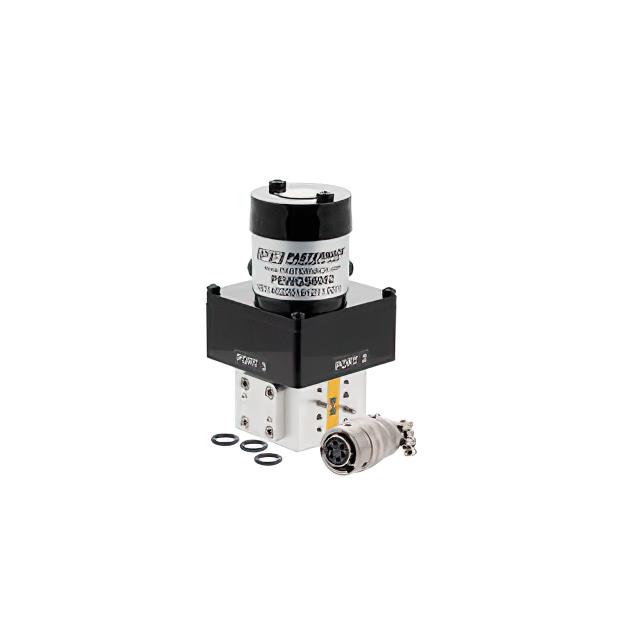

PEWGS6052
ObsoletePasternack
WRD-180 DOUBLE RIDGE WAVEGUIDE S
PEWGS6052
ObsoletePasternack
WRD-180 DOUBLE RIDGE WAVEGUIDE S
Description
General part information
PEWGS6052
RF Switch IC Radar, VSAT SPDT, DPDT
Technical Specifications
Parameters and characteristics for this part
| Specification | PEWGS6052 |
|---|---|
| Circuit | SPDT, DPDT |
| Frequency Range (Max) | 40 GHz |
| Frequency Range (Min) | 18 GHz |
| Insertion Loss (max) | 0.4 dB |
| Isolation (Min) | 50 dB |
| Mounting Type | Chassis Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| RF Type | VSAT, Radar |
| Topology | Reflective |
| Voltage - Supply (Maximum) | 32 V |
| Voltage - Supply (Minimum) | 21 VDC |
