FMAD1597
ActiveFairview Microwave
ADAPT PLUG-JACK TYPE N 1.2 VSWR
FMAD1597
ActiveFairview Microwave
ADAPT PLUG-JACK TYPE N 1.2 VSWR
Description
General part information
FMAD1597

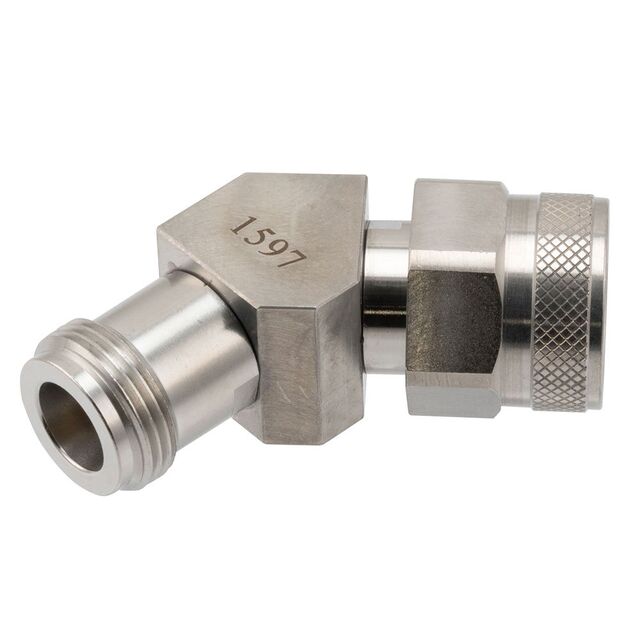

Adapter Coaxial Connector N Plug, Male Pin To N Jack, Female Socket 50 Ohms
Technical Specifications
Parameters and characteristics for this part
| Specification | FMAD1597 |
|---|---|
| Adapter Series | N to N |
| Adapter Type | Plug to Jack |
| Body Finish | Passivated |
| Body Material | Stainless Steel |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Center Gender | Male, Female |
| Conversion Type | Same Series |
| Convert From (Adapter End) | N Plug, Male Pin |
| Convert To (Adapter End) Gender | Female Socket |
| Convert To (Adapter End) Type | N Jack |
| Fastening Type | Threaded |
| Frequency - Max | 18 GHz |
| Impedance | 50 Ohm |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature (Max) | 165 °C |
| Operating Temperature (Min) | -65 °C |
| Style | 45° Angle |
