BS-32-8-W

Active

3M (TC)

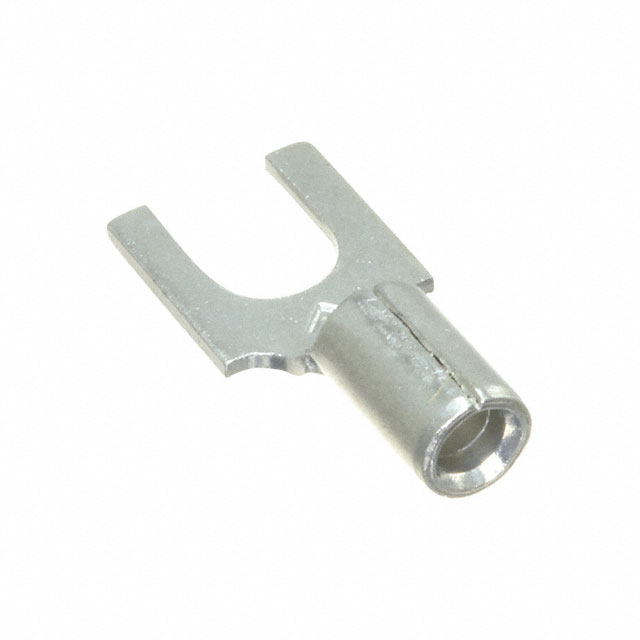

16-14 AWG NON-INSULATED BRAZED SEAM BLOCK FORK TERMINAL

Deep-Dive with AI

Search across all available documentation for this part.

BS-32-8-W

Active

3M (TC)

16-14 AWG NON-INSULATED BRAZED SEAM BLOCK FORK TERMINAL

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	BS-32-8-W

Contact Finish	Tin
Contact Material	ETP, Copper
Features	Brazed Seam
Insulation	Non-Insulated
Length - Overall [x]	0.65 "
Length - Overall [x]	16.51 mm
Length - Ring Center to Termination [x]	0.25 in
Length - Ring Center to Termination [x]	6.35 mm
Length - Termination	6.35 mm
Length - Termination [x]	0.25 "
Mounting Type	Free Hanging (In-Line)
Stud/Tab Size	8 Stud
Terminal Type	Standard
Termination	Crimp

BS-32 Series

Part	Insulation	Material - Insulation	Stud/Tab Size	Mounting Type	Terminal Type	Color	Termination	Length - Termination [x]	Length - Termination [x]	Width - Outer Edges [y]	Width - Outer Edges [y]	Features	Length - Overall [x]	Length - Overall [x]	Contact Finish	Length - Ring Center to Termination [x]	Length - Ring Center to Termination [x]	Contact Material	Stud/Tab Size	Length - Termination
3M (TC) BS-32-8-NB	Insulated	Nylon Polyamide (PA)	8 Stud	Free Hanging (In-Line)	Standard	Blue	Crimp
3M (TC) BS-32-4S-P	Insulated	Vinyl		Free Hanging (In-Line)	Standard	Blue	Crimp	0.45 in	11.43 mm	0.25 "	6.35 mm	Butted Seam	21.59 mm	0.85 "	Tin	0.25 in	6.35 mm	Copper ETP	4 Stud
3M (TC) BS-32-8	Non-Insulated		8 Stud	Free Hanging (In-Line)	Standard		Crimp	0.25 "				Butted Seam	16.5 mm	0.65 "	Tin	0.25 in	6.35 mm	Copper ETP		6.35 mm
3M (TC) BS-32-10	Non-Insulated			Free Hanging (In-Line)	Standard		Crimp	0.25 "				Butted Seam	16.5 mm	0.65 "	Tin	0.25 in	6.35 mm	Copper ETP	10 Stud	6.35 mm
3M (TC) BS-32-6-NB	Insulated	Nylon Polyamide (PA)		Free Hanging (In-Line)	Standard	Blue	Crimp												6 Stud
3M (TC) BS-32-10-W	Non-Insulated			Free Hanging (In-Line)	Standard		Crimp	0.25 "				Brazed Seam	16.51 mm	0.65 "	Tin	0.25 in	6.35 mm	Copper ETP	10 Stud	6.35 mm
3M (TC) BS-32-6S	Non-Insulated			Free Hanging (In-Line)	Standard		Crimp	0.25 "		0.25 "	6.35 mm	Butted Seam	16.5 mm	0.65 "	Tin	0.25 in	6.35 mm	Copper ETP	6 Stud	6.35 mm
3M (TC) BS-32-6-W	Non-Insulated			Free Hanging (In-Line)	Standard		Crimp	0.25 "				Brazed Seam	16.51 mm	0.65 "	Tin	0.25 in	6.35 mm	Copper ETP	6 Stud	6.35 mm
3M (TC) BS-32-8-W	Non-Insulated		8 Stud	Free Hanging (In-Line)	Standard		Crimp	0.25 "				Brazed Seam	16.51 mm	0.65 "	Tin	0.25 in	6.35 mm	Copper ETP		6.35 mm
3M (TC) BS-32-6S-W	Non-Insulated			Free Hanging (In-Line)	Standard		Crimp	0.25 "		0.25 "	6.35 mm	Brazed Seam	16.51 mm	0.65 "	Tin	0.25 in	6.35 mm	Copper ETP	6 Stud	6.35 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1000	$ 0.13
Newark	Each	1	$ 0.29
		250	$ 0.22
		500	$ 0.20
		1000	$ 0.18
		5000	$ 0.16

Description

General part information

BS-32 Series

8 Stud Spade Terminal Connector Crimp 14-16 AWG

Documents

Technical documentation and resources

No documents available
