RNF-100-3/8-YO-SP-CS7554

Obsolete

TE Connectivity Aerospace, Defense and Marine

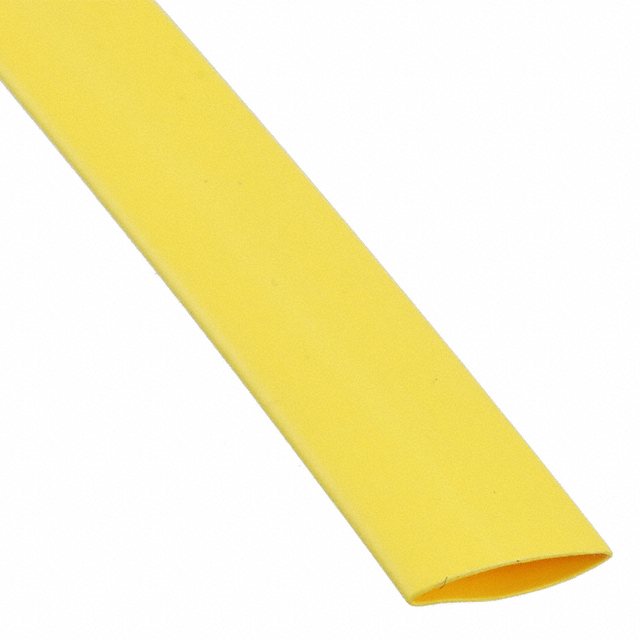

HEATSHRINK 3/8" YELLOW

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsRNF-100 Tubing Spec Sheet RNF-100 Datasheet +1

RNF-100-3/8-YO-SP-CS7554

Obsolete

TE Connectivity Aerospace, Defense and Marine

HEATSHRINK 3/8" YELLOW

Deep-Dive with AI

DocumentsRNF-100 Tubing Spec Sheet RNF-100 Datasheet +1

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

RNF-100 Series

Heat Shrink Tubing, Flexible 0.375" (9.53mm) 2 to 1 Yellow

Documents

Technical documentation and resources

RNF-100 Tubing Spec Sheet

Datasheet

RNF-100 Datasheet

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	RNF-100-3/8-YO-SP-CS7554	RNF-100 Series

Color	Yellow	Clear, Black, Red, White, Brown, Gray, Yellow
Features	Abrasion and Cut Resistant, Flame Retardant, Fluid Resistant, Solvent Resistant, Strain Resistant	Strain Resistant, Abrasion and Cut Resistant, Solvent Resistant, Fluid Resistant, Flame Retardant
Inner Diameter - Recovered	-	2.36 - 3.18 mm
Inner Diameter - Recovered	-	0.093 in
Inner Diameter - Recovered	-	0.58 mm
Inner Diameter - Recovered [diameter]	4.75 mm	0.023 - 38.1 mm
Inner Diameter - Recovered [diameter]	0.187 in	0.031 - 1.5 in
Inner Diameter - Supplied	-	2.36 mm
Inner Diameter - Supplied [diameter]	0.375 in	0.046 - 3 in
Inner Diameter - Supplied [diameter]	9.53 mm	0.093 - 76.2 mm
Length	-	91.4 m
Length	-	300 ft
Length	-	1.22 m
Length	-	4 ft
Material	Polyolefin (PO), Irradiated	Polyolefin (PO), Irradiated, Polyolefin (PO)
Operating Temperature [Max]	135 °C	135 °C
Operating Temperature [Min]	-55 °C	-55 °C
Recovered Wall Thickness	-	0.41 - 3.99 mm
Recovered Wall Thickness	-	0.016 - 0.157 in
Recovered Wall Thickness	-	0.03 "
Recovered Wall Thickness [custom]	0.025 "	0.025 "
Recovered Wall Thickness [custom]	0.64 mm	0.64 mm
Shelf Life	144 Months	144 Months
Shrink Temperature	95 °C	95 - 121 °C
Shrinkage Ratio	2 to 1	2 to 1
Storage/Refrigeration Temperature	-	35 °C
Storage/Refrigeration Temperature	-	0 °C
Type	Tubing, Flexible	Tubing, Flexible

RNF-100 Series

HEATSHRINK 1" CLEAR

Part	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Shelf Life	Color	Operating Temperature [Max]	Operating Temperature [Min]	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered [diameter]	Recovered Wall Thickness	Recovered Wall Thickness	Material	Type	Shrinkage Ratio	Shrink Temperature	Features	Length	Length	Recovered Wall Thickness [custom]	Recovered Wall Thickness [custom]	Inner Diameter - Recovered	Inner Diameter - Recovered	Length [x]	Length [x]
TE Connectivity Aerospace, Defense and Marine RNF-100-1-CL-SP-CS7312	1 in	25.4 mm	144 Months	Clear	135 °C	-55 °C	0.5 in	12.7 mm	0.89 mm	0.035 in	Polyolefin (PO), Irradiated	Tubing, Flexible	2 to 1	95 °C	Abrasion and Cut Resistant, Fluid Resistant, Solvent Resistant, Strain Resistant
TE Connectivity Aerospace, Defense and Marine RNF-100-1/2-BK-SP-CS5004	0.5 in	12.7 mm	144 Months	Black	135 °C	-55 °C	0.25 in	6.35 mm			Polyolefin (PO), Irradiated	Tubing, Flexible	2 to 1	95 °C	Abrasion and Cut Resistant, Flame Retardant, Fluid Resistant, Solvent Resistant, Strain Resistant	91.4 m	300 ft	0.025 "	0.64 mm
TE Connectivity Aerospace, Defense and Marine RNF-100-3/16-RD-SP-CS6162	0.187 in	4.75 mm	144 Months	Red	135 °C	-55 °C			0.51 mm	0.02 in	Polyolefin (PO), Irradiated	Tubing, Flexible	2 to 1	95 °C	Abrasion and Cut Resistant, Flame Retardant, Fluid Resistant, Solvent Resistant, Strain Resistant					2.36 mm	0.093 in
TE Connectivity Aerospace, Defense and Marine RNF-100-1/8-WH-SP-CS7807	0.125 "	3.18 mm	144 Months	White	135 °C	-55 °C	0.062 in	1.57 mm	0.51 mm	0.02 in	Polyolefin (PO), Irradiated	Tubing, Flexible	2 to 1	95 °C	Abrasion and Cut Resistant, Flame Retardant, Fluid Resistant, Solvent Resistant, Strain Resistant
TE Connectivity Aerospace, Defense and Marine RNF-100-1/8-BK-STK-CS8794	0.125 "	3.18 mm	144 Months	Black	135 °C	-55 °C	0.062 in	1.57 mm	0.51 mm	0.02 in	Polyolefin (PO), Irradiated	Tubing, Flexible	2 to 1	95 °C	Abrasion and Cut Resistant, Flame Retardant, Fluid Resistant, Solvent Resistant, Strain Resistant							1.22 m	4 ft
TE Connectivity Aerospace, Defense and Marine RNF-100-1/2-BK-STK-CS7387	0.5 in	12.7 mm	144 Months	Black	135 °C	-55 °C	0.25 in	6.35 mm			Polyolefin (PO), Irradiated	Tubing, Flexible	2 to 1	95 °C	Abrasion and Cut Resistant, Flame Retardant, Fluid Resistant, Solvent Resistant, Strain Resistant			0.025 "	0.64 mm			1.22 m	4 ft
TE Connectivity Aerospace, Defense and Marine RNF-100-1-CL-STK-CS7620	1 in	25.4 mm	144 Months	Clear	135 °C	-55 °C	0.5 in	12.7 mm	0.89 mm	0.035 in	Polyolefin (PO), Irradiated	Tubing, Flexible	2 to 1	95 °C	Abrasion and Cut Resistant, Fluid Resistant, Solvent Resistant, Strain Resistant							1.22 m	4 ft
TE Connectivity Aerospace, Defense and Marine RNF-100-3/8-RD-SP-CS5533	0.375 in	9.53 mm	144 Months	Red	135 °C	-55 °C	0.187 in	4.75 mm			Polyolefin (PO), Irradiated	Tubing, Flexible	2 to 1	95 °C	Abrasion and Cut Resistant, Flame Retardant, Fluid Resistant, Solvent Resistant, Strain Resistant			0.025 "	0.64 mm
TE Connectivity Aerospace, Defense and Marine RNF-100-1/4-BN-STK	0.25 in	6.35 mm	144 Months	Brown	135 °C	-55 °C	0.125 in				Polyolefin (PO), Irradiated	Tubing, Flexible	2 to 1	95 °C	Abrasion and Cut Resistant, Flame Retardant, Fluid Resistant, Solvent Resistant, Strain Resistant			0.025 "	0.64 mm	3.18 mm		1.22 m	4 ft
TE Connectivity Aerospace, Defense and Marine RNF-100-1-1/2-BKSPCS5592	1.5 in	38.1 mm	144 Months	Black	135 °C	-55 °C	0.75 "	19.05 mm	1.02 mm	0.04 in	Polyolefin (PO)	Tubing, Flexible	2 to 1	121 °C	Abrasion and Cut Resistant, Flame Retardant, Fluid Resistant, Solvent Resistant, Strain Resistant
