5592
ActiveCole Hersee

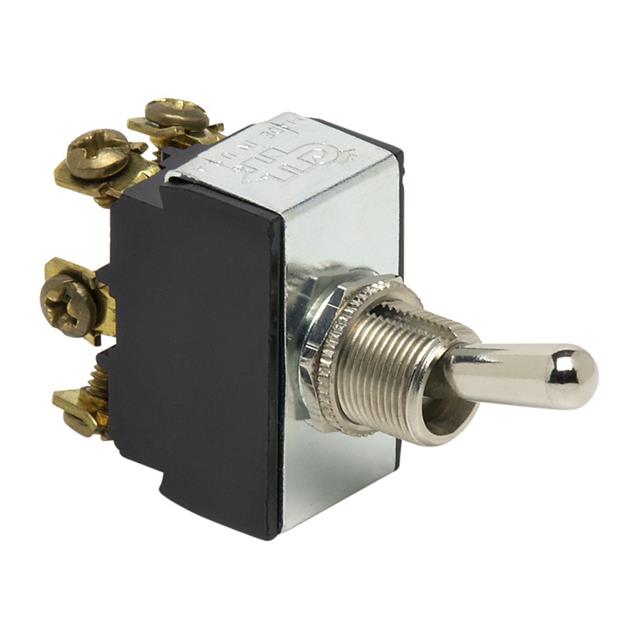

SWITCH TOGGLE DPDT 15A 24V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
5592
ActiveCole Hersee
SWITCH TOGGLE DPDT 15A 24V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 5592 | - Series |
|---|---|---|
| - | - | |
| Accessory Type | - | Face Plate, Protective Boot, Combiner, Bracket, Relay, Diode Battery Isolator, Boot, Control, Disconnect Switch, Converter Plug, Plug Holder, Battery Isolator, Lever |
| Actuator Length [x] | 17.46 mm | 9.53 - 38.1 mm |
| Actuator Marking | - | No Marking |
| Actuator Material | Brass, Nickel Plated | Brass, Nickel Plated, Plastic, Brass, Chrome Plated |
| Actuator Type | Standard Round | Standard Round, Concave (Curved), Flatted, Ball Tip |
| Applications | - | Industrial, Automotive |
| Backshell Material, Plating | - | Zinc Die Cast |
| Bushing Thread | 15/32-32 | 15/32-32 |
| Cable Opening | - | 0.735 in |
| Cable Opening | - | 18.66 mm |
| Cable Termination | - | Crimp |
| Circuit | DPDT | DPDT, SPDT, SPST, SPST-NO, DPST |
| Coil Current | - | 1.4 - 685.7 A |
| Coil Resistance | - | 1.6 - 82 Ohms |
| Coil Type | - | Non Latching |
| Coil Voltage | - | 12 - 24 VDC |
| Color | - | Yellow, Black, Silver, Gray, Green, Multiple, Individual |
| Color - Actuator/Cap | - | Black |
| Connector Type | - | Male Pins, Plug, Female Sockets, Receptacle, SAE Connector to SAE Connector |
| Contact Form | - | SPST-NO (1 Form A), SPDT (1 Form C), DPST-NO (2 Form A), DPDT (2 Form C) |
| Contact Material | - | Copper, Brass, Silver (Ag) |
| Contact Rating (Current) | - | 50 - 750 A |
| Current Rating (Amps) | 15 A | 10 - 75 A |
| Fastening Type | - | Push-Pull |
| Features | - | Strain Relief, Backshell, Cap (Cover), Cable Clamp, Polarity Reversing |
| For Use With/Related Products | - | Disconnect Switch, Vehicle Connectors, Batteries, Battery Isolator, 12V Battery |
| Illumination | Non-Illuminated | Non-Illuminated, Illuminated |
| Illumination Type, Color | - | Incandescent, Red/White |
| Illumination Voltage (Nominal) | - | 12 VDC |
| Insert Material | - | Thermoplastic, Glass Filled, Thermoplastic |
| Length | - | 152.4 mm |
| Length | - | 6 " |
| Length | - | 0.5 ' |
| Load Current | - | 85 A |
| Material | - | Rubber, Thermoplastic, Glass Filled |
| Mounting Feature | - | Flange |
| Mounting Type | - | Panel Mount, Snap-In, Free Hanging (In-Line), Chassis Mount |
| Must Operate Voltage | - | 7.8 VDC |
| Number of Positions | - | 2 - 13 |
| Number of Positions | - | 1 |
| Number of Positions | - | 6 |
| Number of Rows | - | 1 |
| Operating Temperature | - | 60 - 85 °C |
| Operating Temperature | - | -40 °C |
| Orientation | - | N, Keyed |
| Output Type | - | DC |
| Package / Case | - | SSR with Integrated Heat Sink |
| Panel Cutout Dimensions | - | 13.97 mm |
| Panel Cutout Dimensions | - | 28.57 mm |
| Panel Cutout Dimensions [diameter] | 11.9 mm | 11.9 mm |
| Primary Material | - | Plastic, Metal |
| Relay Type | - | General Purpose |
| Seal Rating | - | Sealed - Fully |
| Shell Material | - | Thermoplastic, Glass Filled, Zinc Die Cast, Zinc, Steel |
| Shielding | - | Unshielded |
| Switch Function | On-Off-On | Mom-Off-On, On-On, On-Off, On-Off-On, Mom-Off-Mom, On-On-Off, Off-Mom, Mom-On-Off |
| Termination | - | Solder, Screw, Solder Tabs |
| Termination Style | Screw Terminal | Quick Connect - 0.250" (6.3mm), Screw Terminal, Wire Leads, Stud |
| Voltage - Input | - | 31 VDC |
| Voltage - Input | - | 9 VDC |
| Voltage Rating | - | 12 - 24 VDC |
| Voltage Rating - AC | - | 125 V |
| Voltage Rating - DC | 24 V | 12 - 24 V |
- Series
SWITCH TOGGLE DPDT 15A 24V
...
| Part | Voltage Rating - DC | Actuator Type | Bushing Thread | Termination Style | Circuit | Current Rating (Amps) | Switch Function | Actuator Length [x] | Actuator Material | Panel Cutout Dimensions [diameter] | Illumination | Color - Actuator/Cap | Actuator Marking | Panel Cutout Dimensions [y] | Panel Cutout Dimensions [x] | Mounting Type | Illumination Voltage (Nominal) | Illumination Type, Color | Color | Orientation | Primary Material | Connector Type | Termination | Features | Shielding | Shell Material | Voltage Rating | Number of Positions | Fastening Type | Coil Voltage | Coil Resistance | Coil Type | Operating Temperature [Max] | Operating Temperature [Min] | Coil Current | Relay Type | Contact Rating (Current) | Contact Material | Contact Form | Insert Material | Mounting Feature | Applications | Number of Positions [custom] | Number of Positions [custom] | For Use With/Related Products | Accessory Type | Voltage Rating - AC | Material | Seal Rating | Must Operate Voltage | Output Type | Package / Case | Load Current | Voltage - Input [Max] | Voltage - Input [Min] | Backshell Material, Plating | Cable Opening [custom] | Cable Opening [custom] | Cable Termination | Length | Length | Length | Number of Rows |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Cole Hersee 55081 | 24 V | Standard Round | 15/32-32 | Quick Connect - 0.250" (6.3mm) | DPDT | 15 A | Mom-Off-On | 17.46 mm | Brass, Nickel Plated | 11.9 mm | Non-Illuminated | ||||||||||||||||||||||||||||||||||||||||||||||||||||
Cole Hersee 54010 | 12 V | Concave (Curved) | Quick Connect - 0.250" (6.3mm) | SPDT | 10 A | On-On | Black | No Marking | 13.97 mm | 28.57 mm | Panel Mount, Snap-In | ||||||||||||||||||||||||||||||||||||||||||||||||||||
Cole Hersee 54109 | 12 V | Flatted | 15/32-32 | Screw Terminal | SPST | 25 A | On-Off | 17.46 mm | Plastic | 11.9 mm | Illuminated | 12 VDC | Incandescent, Red/White | ||||||||||||||||||||||||||||||||||||||||||||||||||
Cole Hersee 55013 | 12 V | Standard Round | 15/32-32 | Quick Connect - 0.250" (6.3mm) | SPST | 10 A | On-Off | 17.46 mm | Brass, Nickel Plated | 11.9 mm | Non-Illuminated | ||||||||||||||||||||||||||||||||||||||||||||||||||||
Cole Hersee 551806 | 12 V | Standard Round | 15/32-32 | Screw Terminal | SPDT | 20 A | On-Off-On | 26.92 mm | Brass, Chrome Plated | 11.9 mm | Non-Illuminated | ||||||||||||||||||||||||||||||||||||||||||||||||||||
Cole Hersee 12301 | 12 A | Free Hanging (In-Line) | Yellow | N | Plastic | Female Sockets, Male Pins, Plug | Solder | Backshell, Strain Relief | Unshielded | Thermoplastic, Glass Filled | 24 VDC | 13 | Push-Pull | ||||||||||||||||||||||||||||||||||||||||||||||||||
Cole Hersee 24037 | Screw Terminal | Chassis Mount | 12 VDC | 4.4 Ohms | Non Latching | 85 °C | -40 °C | 2.7 A | General Purpose | 750 A | Copper | SPST-NO (1 Form A) | |||||||||||||||||||||||||||||||||||||||||||||||||||
Cole Hersee 12077-01 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Cole Hersee 12080 | 35 A, 45 A | Black | Keyed | Plastic | Male Pins, Receptacle | Screw | Cap (Cover) | Unshielded | Thermoplastic, Glass Filled | Push-Pull | Brass | Thermoplastic, Glass Filled | Flange | Automotive, Industrial | 1 | 6 | |||||||||||||||||||||||||||||||||||||||||||||||
Cole Hersee 82065 | Disconnect Switch | Face Plate |
