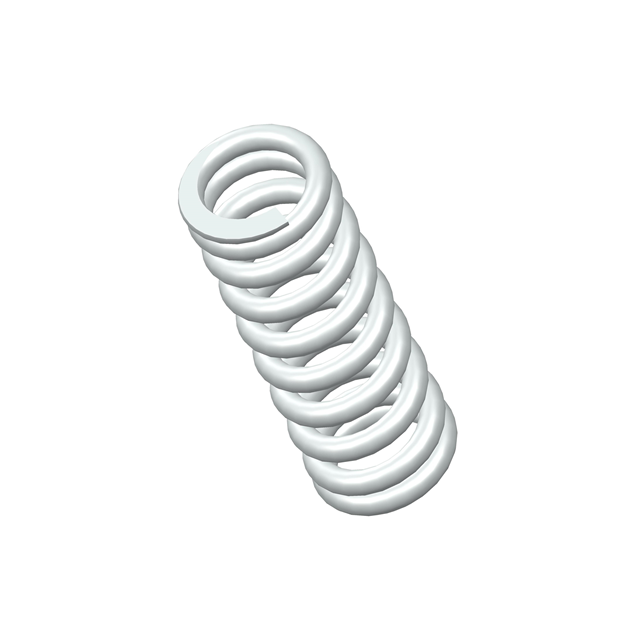

S-913CS
ActiveCentury Spring Corp
COMP O= .375,L= 1.09,W= .063
S-913CS
ActiveCentury Spring Corp
COMP O= .375,L= 1.09,W= .063
Description
General part information
S-913CS
COMP O= .375,L= 1.09,W= .063
Technical Specifications
Parameters and characteristics for this part
| Specification | S-913CS |
|---|---|
| Diameter - Inside | 0.249 in |
| Diameter - Outside | 0.375 in |
| End Style | Ground, Closed |
| Finish | None |
| Free Length | 1.09 in |
| Material | Stainless Steel |
| Rate (lbs/in) | 84 lbs/in |
| Type | Compression |
| Wire Diameter | 0.063 in |
