MKP1848H62580JP4
ActiveVishay Dale
MKP,25ΜF, 800 VDC, PITCH 37,5 MM 4 PINS, P2=10,2MM ROHS COMPLIANT: YES
MKP1848H62580JP4
ActiveVishay Dale
MKP,25ΜF, 800 VDC, PITCH 37,5 MM 4 PINS, P2=10,2MM ROHS COMPLIANT: YES
Description
General part information
MKP1848H62580JP4

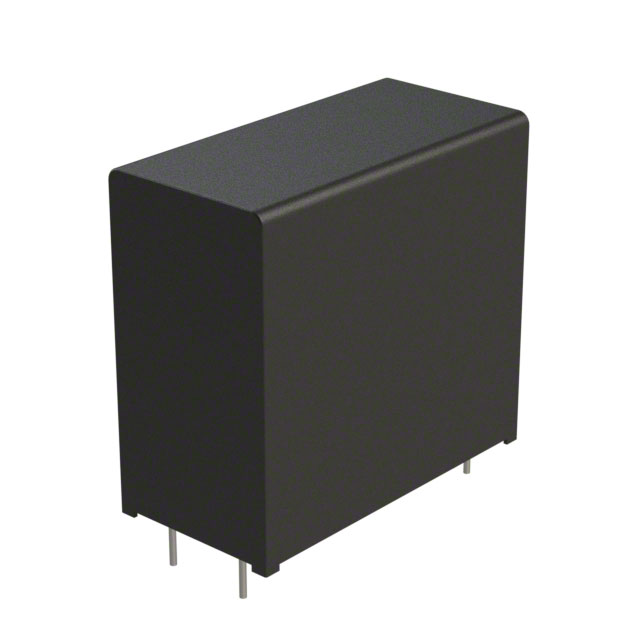

25 µF Film Capacitor 800V Polypropylene (PP), Metallized Radial - 4 Leads
Technical Specifications
Parameters and characteristics for this part
| Specification | MKP1848H62580JP4 |
|---|---|
| Applications | DC Filtering, DC Link, Automotive |
| Capacitance | 25 µF |
| Dielectric Material | Metallized, Polypropylene (PP) |
| ESR (Equivalent Series Resistance) | 4 mOhm |
| Features | Low ESR, 85C/85% Humidity; Low ESR, 85C/85% Humidity, Low ESL |
| Height - Seated (Max) | 1.791 in |
| Lead Spacing | 1.476 in |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package Leads | 4 Leads |
| Package Name | Radial |
| Ratings | AEC-Q200 |
| Size / Dimension Length | 1.654 in |
| Size / Dimension Width | 1.181 in |
| Termination | PC Pins |
| Tolerance | 5 % |
| Voltage Rating - DC | 800 V |
