Description
General part information

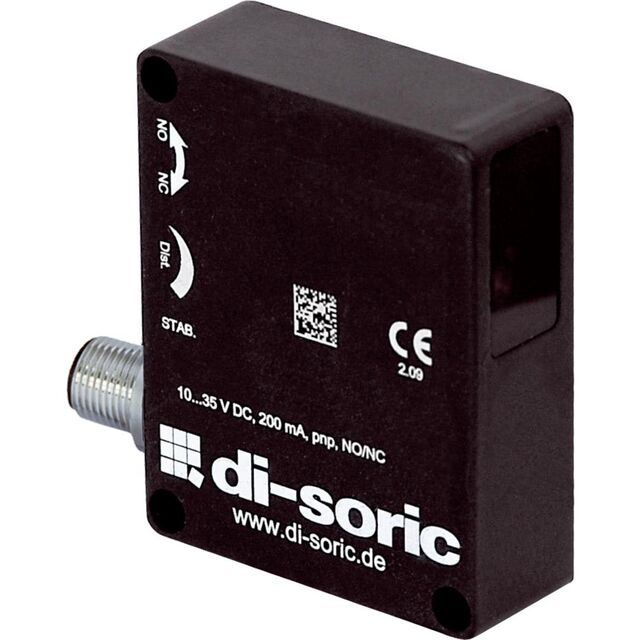

201556
Diffuse Optical Sensor 3.937" ~ 19.685" (100mm ~ 500mm) PNP-NC/NO
Technical Specifications
Parameters and characteristics for this part
| Specification | 201556 |
|---|---|
| Connection Method | Connector, M12 |
| Ingress Protection | IP67 |
| Light Source | Red Laser Diode |
| Light Source Wavelength (Red Laser Diode) | 660 nm |
| Operating Temperature (Max) | 60 °C |
| Operating Temperature (Min) | -10 °C |
| Output Configuration | NO, PNP-NC |
| Sensing Distance Maximum | 19.685 " |
| Sensing Distance Minimum | 3.937 " |
| Sensing Method | Diffuse |
| Voltage - Supply (Maximum) | 35 V |
| Voltage - Supply (Minimum) | 10 VDC |
