Description
General part information

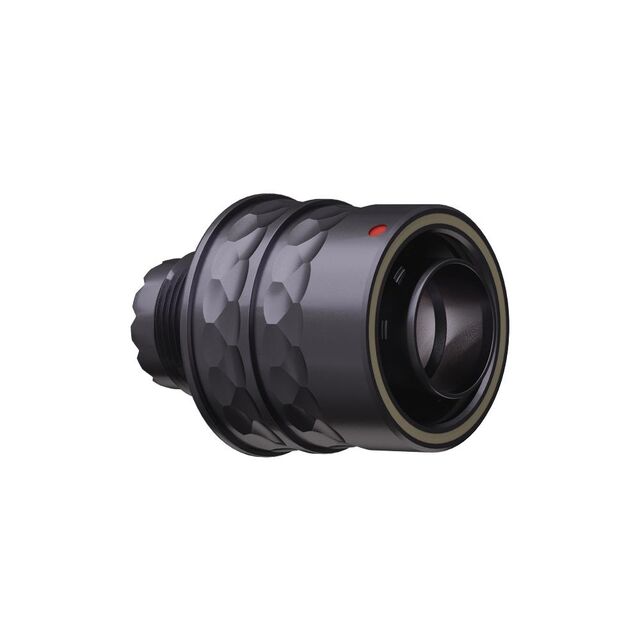

SBTAAT0-H022PN-0000
22 Position Circular Connector Plug, Male Pins Crimp
Technical Specifications
Parameters and characteristics for this part
| Specification | SBTAAT0-H022PN-0000 |
|---|---|
| Cable Opening (Max) | 0.575 in |
| Cable Opening (Min) | 0.197 in |
| Color | Silver |
| Connector Type | Male Pins, Plug |
| Contact Finish - Mating | Gold |
| Contact Material | Copper Alloy |
| Current Rating | 2 A |
| Fastening Type | Push-Pull |
| Features | Coupling Nut, Backshell |
| Ingress Protection Description | Water Resistant, Waterproof, Dust Tight |
| Ingress Protection IP Rating | IP6K9K |
| Insert Material | Polyetheretherketone, PEEK |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 22 |
| Operating Temperature (Max) | 175 °C |
| Operating Temperature (Min) | -65 °C |
| Orientation | A |
| Primary Material | Metal |
| Shell Finish | Tin Nickel |
| Shell Material | Aluminum |
| Shell Size - Insert | 12 |
| Shell Size - Insert | 12 |
| Shielding | Shielded |
| Termination | Crimp |
