C180-24

Active

Orion Fans

RCP CORD, STRAIGHT, 24INCH, ORIONS FANS ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Orion Fans

RCP CORD, STRAIGHT, 24INCH, ORIONS FANS ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	C180-24	C180 Series

1st Connector	Fan Terminal Receptacle 180°, Straight	Fan Terminal Receptacle 180°, Straight
2nd Connector	Open Wires	Open Wires, NEMA 1-15 Plug
Approval Agency Marking	cURus, TUV	cURus, TUV
Cord Type	SPT-1	SPT-1
Length	-	304.8 mm
Length [x]	609.6 mm	609.6 mm
Length [x]	24 in	12 - 24 in
Number of Conductors	2	2
Style	Female Receptacle to Cable	Female Receptacle to Cable, Female Receptacle to Male Plug
Wire Gauge	18 AWG	18 AWG

FAN CORD 180DEG 12"

Part	Length	Length [x]	2nd Connector	Wire Gauge	Style	Cord Type	Approval Agency Marking	Number of Conductors	1st Connector	Length [x]
Orion Fans C180-12	304.8 mm	12 in	Open Wires	18 AWG	Female Receptacle to Cable	SPT-1	cURus, TUV	2	Fan Terminal Receptacle 180°, Straight
Orion Fans C180-48			Open Wires	18 AWG	Female Receptacle to Cable	SPT-1	cURus, TUV	2	Fan Terminal Receptacle 180°, Straight
Orion Fans C180-24		24 in	Open Wires	18 AWG	Female Receptacle to Cable	SPT-1	cURus, TUV	2	Fan Terminal Receptacle 180°, Straight	609.6 mm
Orion Fans C180-48P			NEMA 1-15 Plug	18 AWG	Female Receptacle to Male Plug	SPT-1	cURus, TUV	2	Fan Terminal Receptacle 180°, Straight

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

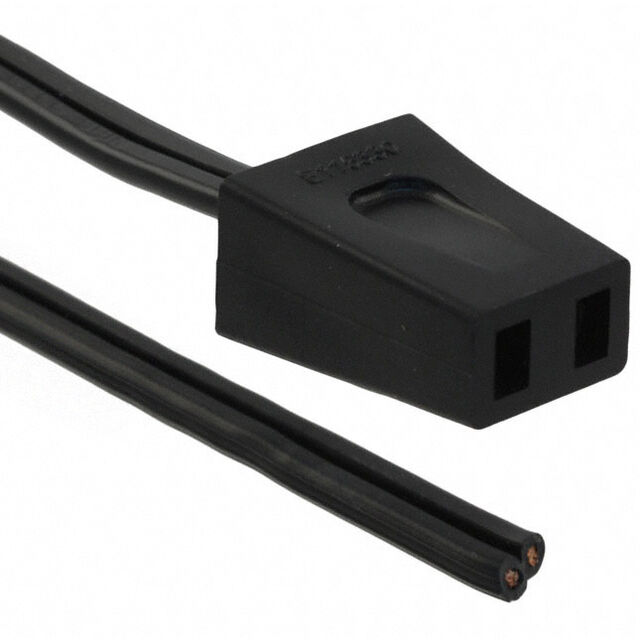

Fan Power Cord Fan Terminal Receptacle 180°, Straight 24.0" (609.6mm) Open Wires
