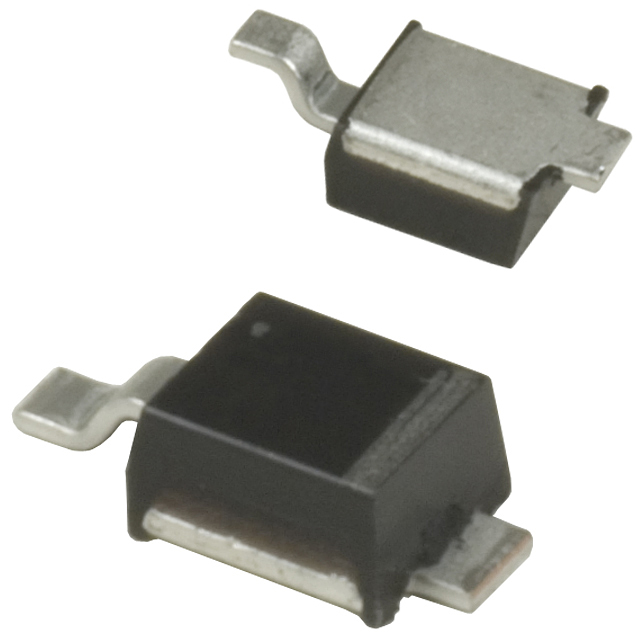

UPS615/TR13
ActiveMicrochip Technology
DIODE SCHOTTKY 3-PIN(2+TAB) 6.0A, 15V, VF=0.22V POWERMITE T/R
Deep-Dive with AI
Search across all available documentation for this part.
UPS615/TR13
ActiveMicrochip Technology
DIODE SCHOTTKY 3-PIN(2+TAB) 6.0A, 15V, VF=0.22V POWERMITE T/R
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | UPS615/TR13 | UPS615 Series |
|---|---|---|
| Current - Average Rectified (Io) | 6 A | 6 A |
| Current - Reverse Leakage @ Vr | 4 mA | 4 mA |
| Mounting Type | Surface Mount | Surface Mount |
| Operating Temperature - Junction [Max] | 125 °C | 125 - 150 °C |
| Operating Temperature - Junction [Min] | -55 °C | -55 °C |
| Package / Case | DO-216AA | DO-216AA |
| Speed | 200 mA, 500 ns | 200 - 500 mA |
| Supplier Device Package | Powermite | Powermite |
| Technology | Schottky | Schottky |
| Voltage - Forward (Vf) (Max) @ If | 320 mV | 320 mV |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 5000 | $ 2.18 | |
| Microchip Direct | N/A | 1 | $ 2.37 | |
| 100 | $ 2.18 | |||
| 500 | $ 2.12 | |||
| 1000 | $ 1.99 | |||
UPS615 Series
Diode Schottky 3-Pin(2+Tab) 6.0A, 15V, VF=0.22V PowerMite T/R
| Part | Operating Temperature - Junction [Min] | Operating Temperature - Junction [Max] | Supplier Device Package | Speed | Current - Reverse Leakage @ Vr | Voltage - Forward (Vf) (Max) @ If | Mounting Type | Package / Case | Current - Average Rectified (Io) | Technology |
|---|---|---|---|---|---|---|---|---|---|---|
Microchip Technology UPS615/TR13 | -55 °C | 125 °C | Powermite | 200 mA, 500 ns | 4 mA | 320 mV | Surface Mount | DO-216AA | 6 A | Schottky |
Microchip Technology UPS615E3/TR13 | -55 °C | 150 °C | Powermite | 200 mA, 500 ns | 4 mA | 320 mV | Surface Mount | DO-216AA | 6 A | Schottky |
Description
General part information
UPS615 Series
Powermite 3 package. Schottky barrier rectifier.
Documents
Technical documentation and resources
