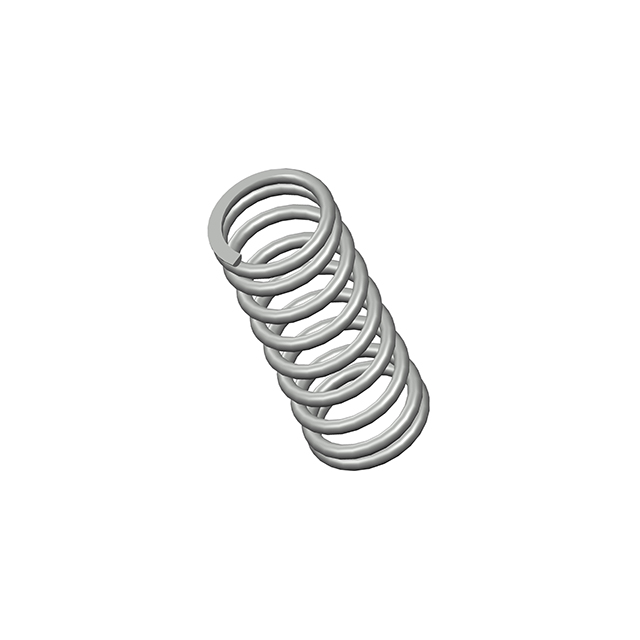

72769CS
ActiveCentury Spring Corp
COMP O=1.400,L= 3.50,W= .162
72769CS
ActiveCentury Spring Corp
COMP O=1.400,L= 3.50,W= .162
Description
General part information
72769CS
COMP O=1.400,L= 3.50,W= .162
Technical Specifications
Parameters and characteristics for this part
| Specification | 72769CS |
|---|---|
| Diameter - Inside | 1.076 in |
| Diameter - Outside | 1.4 in |
| End Style | Ground, Closed |
| Finish | None |
| Free Length | 3.5 in |
| Material | Music Wire |
| Rate (lbs/in) | 70 lbs/in |
| Type | Compression |
| Wire Diameter | 0.162 in |
