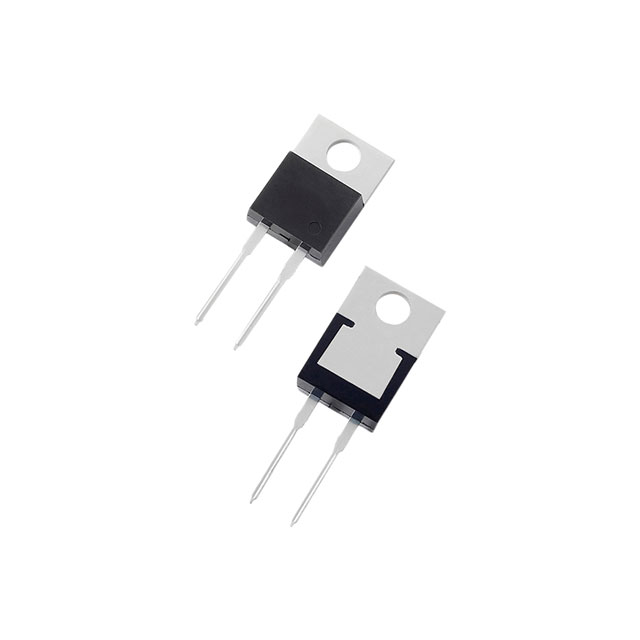

DUR30120

APT30DQ120KG

Active

Microchip Technology

SMALL SIGNAL SWITCHING DIODES FRED DQ 1200 V 30 A TO-220

DUR30120

APT30DQ120KG

Active

Microchip Technology

SMALL SIGNAL SWITCHING DIODES FRED DQ 1200 V 30 A TO-220

Description Specifications Series Pricing CAD Documents

Description

General part information

FRED-1200V Series

Microchip offers four series of discrete diode products: the

medium-speed medium Vf D series, the high-speed

DQ series, the silicon Schottky S series and the SiC Schottky MSCxxxSDxxxx

Technical Specifications

Parameters and characteristics for this part

Specification	APT30DQ120KG

Current - Average Rectified (Io)	30 A
Current - Reverse Leakage	100 µA
Mounting Type	Through Hole
Operating Temperature - Junction (Max)	175 °C
Operating Temperature - Junction (Min)	-55 °C
Package / Case	TO-220-3
Package Name	TO-220 [K]
Reverse Recovery Time (trr)	320 ns
Speed - Fast Recovery (Maximum)	500 ns
Speed - Fast Recovery (Minimum)	200 mA
Technology	Standard
Voltage - DC Reverse (Vr) (Max)	1200 V
Voltage - Forward (Vf) (Max)	3.3 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Sign in to see pricing

Create a free account to access distributor pricing data.

Sign up — free Log in

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

High-Voltage Power Discretes and Modules

APT30DQ120KG | Datasheet

APT15D120BG FRED D 1200 V 15 A TO-247 Datasheet

APT15DQ120KG FRED DQ 1200 V 15 A TO-220 Datasheet

APT15DQ120BG FRED DQ 1200 V 15 A TO-247 Datasheet

APT2X101D120J, APT2X100D120J FRED D 1200 V 100 A Dual Anti-Parallel SOT-227 Datasheet

APT15DQ120BHBG FRED DQ 1200 V 15 A TO-247 Datasheet

APT15D120KG FRED D 1200 V 15 A TO-220 Datasheet

FRED-1200V Series

Part	Reverse Recovery Time (trr)	Mounting Type	Voltage - Forward (Vf) (Max)	Current - Average Rectified (Io) (per Diode)	Package Name	Speed - Fast Recovery (Maximum)	Speed - Fast Recovery (Minimum)	Technology	Package / Case	Current - Reverse Leakage	Voltage - DC Reverse (Vr) (Max)	Diode Count	Diode Configuration	Operating Temperature - Junction (Max)	Operating Temperature - Junction (Min)	Current - Average Rectified (Io)
Microchip Technology APT2X30DQ120J	300 ns	Chassis Mount	3.1 V	30 A	ISOTOP®	500 ns	200 mA	Standard	miniBLOC SOT-227-4	100 µA	1200 V	2	Independent
Microchip Technology APT2X101D120J	420 ns	Chassis Mount	2.5 V	93 A	ISOTOP®	500 ns	200 mA	Standard	miniBLOC SOT-227-4	250 µA	1200 V	2	Independent	175 °C	-55 °C
Microchip Technology APT15DQ120BG	240 ns	Through Hole	3.3 V		TO-247 [B]	500 ns	200 mA	Standard	TO-247-3	100 µA	1200 V			175 °C	-55 °C	15 A
Microchip Technology APT40DQ120SG	350 ns	Surface Mount	3.4 V		D3PAK	500 ns	200 mA	Standard	D3PAK (2 Leads + Tab) TO-268-3 TO-268AA	100 µA	1200 V			175 °C	-55 °C	40 A
Microchip Technology APT75DQ120SG	325 ns	Surface Mount	3.3 V 3.3 V		D3PAK	500 ns	200 mA	Standard	D3PAK (2 Leads + Tab) TO-268-3 TO-268AA	100 µA				175 °C	-55 °C	75 A
Microchip Technology APT2X60DQ120J	265 ns	Chassis Mount	3.1 V	60 A	ISOTOP®	500 ns	200 mA	Standard	miniBLOC SOT-227-4	100 µA	1200 V	2	Independent
Microchip Technology APT15D120KG	260 ns	Through Hole	2.5 V		TO-220 [K]	500 ns	200 mA	Standard	TO-220-3	250 µA	1200 V			175 °C	-55 °C	15 A
Microchip Technology APT15DQ120KG	240 ns	Through Hole	3.3 V		TO-220-2	500 ns	200 mA	Standard	TO-220-2	100 µA	1200 V			175 °C	-55 °C	15 A
Microchip Technology APT15DQ120BHBG	240 ns	Through Hole	3.5 V		TO-247-3	500 ns	200 mA	Standard	TO-247-3	100 µA	1200 V			175 °C	-55 °C	15 A
Microchip Technology APT60DQ120SG	320 ns	Surface Mount	3.3 V		D3PAK	500 ns	200 mA	Standard	D3PAK (2 Leads + Tab) TO-268-3 TO-268AA	100 µA				175 °C	-55 °C	60 A
