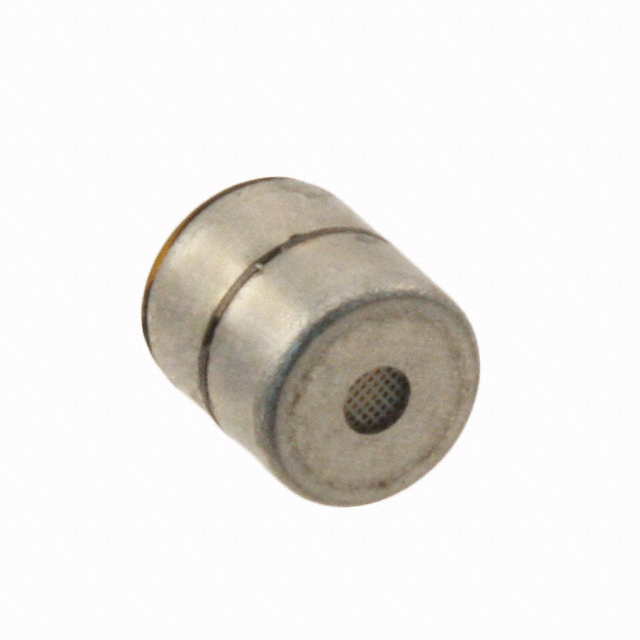

DFG-30445-000
ObsoleteKnowles Syfer
MIC BOOM ANLG UNI -69DB 0.101"D
DFG-30445-000
ObsoleteKnowles Syfer
MIC BOOM ANLG UNI -69DB 0.101"D
Description
General part information
DFG-30445-000
100 Hz ~ 10 kHz Analog Microphone Boom 1.3 V ~ 3 V Unidirectional (-69dB ±4dB @ 74dB SPL) Solder Pads
Technical Specifications
Parameters and characteristics for this part
| Specification | DFG-30445-000 |
|---|---|
| Current - Supply | 50 µA |
| Direction | Unidirectional |
| Frequency Range (Max) | 10 kHz |
| Frequency Range (Min) | 100 Hz |
| Height (Max) | 0.108 in |
| Impedance | 1.7 kOhms |
| Output Type | Analog |
| Port Location | Bottom, Top |
| Sensitivity (Nominal) | -69 dB |
| Sensitivity Tolerance | 4 dB |
| Shape | Circular |
| Size / Dimension Diameter | 0.101 in |
| Termination | Solder Pads |
| Type | Boom |
| Voltage Range (Max) | 3 V |
| Voltage Range (Min) | 1.3 V |
