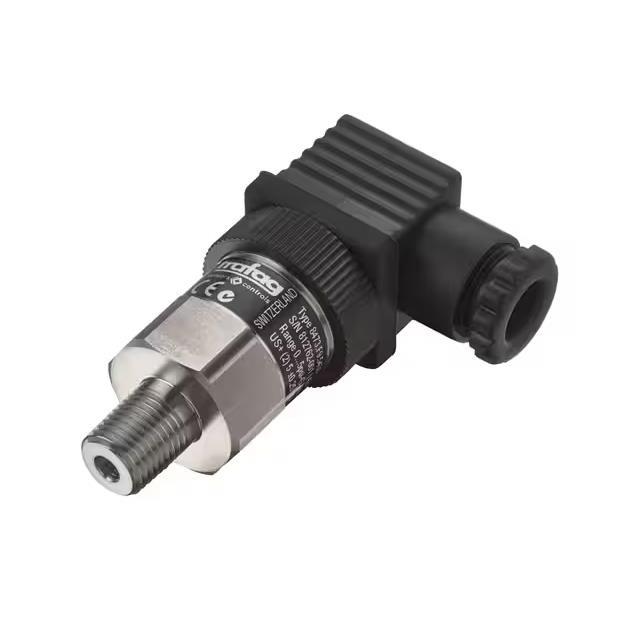

8472.23.5930.05.19.58.61.T2
ActiveTrafag Sensors and Controls
036 PSIG, 1/4" NPT MALE, DIN436
8472.23.5930.05.19.58.61.T2
ActiveTrafag Sensors and Controls
036 PSIG, 1/4" NPT MALE, DIN436
Description
General part information
8472.23.5930.05.19.58.61.T2
Pressure Sensor 36PSI (248.21kPa) Gauge Female - 1/4" (6.35mm) NPT 4 mA ~ 20 mA Cylinder, Threaded
Technical Specifications
Parameters and characteristics for this part
| Specification | 8472.23.5930.05.19.58.61.T2 |
|---|---|
| Accuracy | 0.5 % RH |
| Maximum Pressure | 60 PSI |
| Operating Pressure | 36 PSI |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -25 °C |
| Output Current (Max) | 20 mA |
| Output Current (Min) | 4 mA |
| Output Type | Analog Current |
| Package / Case | Threaded, Cylinder |
| Port Diameter | 0.25 " |
| Port Feature | NPT |
| Port Gender | Female |
| Port Style | Threaded |
| Pressure Type | Gauge |
| Termination Style | DIN43650A |
| Voltage - Supply (Maximum) | 30 VDC |
| Voltage - Supply (Minimum) | 9 VDC |
