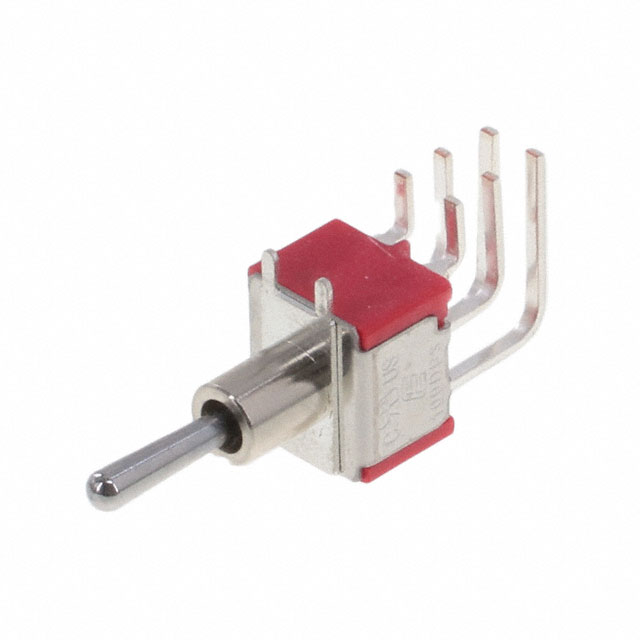

100DP3T1B4M7QE

Active

E-Switch

SWITCH TOGGLE DPDT 5A 120V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

100DP3T1B4M7QE

Active

E-Switch

SWITCH TOGGLE DPDT 5A 120V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 5.52
		10	$ 4.92
		25	$ 4.66
		50	$ 4.49
		100	$ 4.28
		360	$ 4.09
		720	$ 3.73
		1080	$ 3.54

Description

General part information

100DP3 Series

Toggle Switch DPDT Through Hole, Right Angle, Vertical

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	100DP3T1B4M7QE	100DP3 Series

Actuator Length [x]	10.41 mm	5.08 - 21.34 mm
Actuator Material	Brass, Chrome Plated	Brass, Chrome Plated
Actuator Type	Standard Round	Standard Round
Bushing Thread	Unthreaded	Unthreaded, 15/32-32, 1/4-40
Circuit	DPDT	DPDT
Current Rating (Amps)	5 A	0.4 - 5 A
Electrical Life	40000 Cycles	40000 Cycles
Features	Epoxy Sealed Terminals	Epoxy Sealed Terminals
Illumination	Non-Illuminated	Non-Illuminated
Mounting Type	Through Hole, Vertical, Right Angle	Through Hole, Vertical, Right Angle, Panel Mount
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-30 ░C	-30 ░C
Panel Cutout Dimensions	-	0.25 - 11.91 mm
Switch Function	On-Off-On	On-Off-On
Termination Style	PC Pin	PC Pin, Solder Lug, Wire Wrap
Voltage Rating - AC	120 V	20 - 120 V
Voltage Rating - DC	28 V	20 - 28 V

100DP3 Series

SWITCH TOGGLE DPDT 5A 120V

Part	Voltage Rating - AC	Features	Bushing Thread	Actuator Type	Illumination	Current Rating (Amps)	Termination Style	Circuit	Voltage Rating - DC	Operating Temperature [Min]	Operating Temperature [Max]	Switch Function	Actuator Material	Mounting Type	Electrical Life	Actuator Length [x]	Panel Cutout Dimensions [diameter]
E-Switch 100DP3T2B2M7QE	120 V	Epoxy Sealed Terminals	Unthreaded	Standard Round	Non-Illuminated	5 A	PC Pin	DPDT	28 V	-30 ░C	85 °C	On-Off-On	Brass, Chrome Plated	Right Angle, Through Hole, Vertical	40000 Cycles	5.08 mm
E-Switch 100DP3T7B13M2QE	120 V	Epoxy Sealed Terminals	15/32-32	Standard Round	Non-Illuminated	5 A	PC Pin	DPDT	28 V	-30 ░C	85 °C	On-Off-On	Brass, Chrome Plated		40000 Cycles	13 mm	11.91 mm
E-Switch 100DP3T1B1M2RE	20 V	Epoxy Sealed Terminals	1/4-40	Standard Round	Non-Illuminated	0.4 VA	PC Pin	DPDT	20 V	-30 ░C	85 °C	On-Off-On	Brass, Chrome Plated		40000 Cycles	10.41 mm	0.25 in
E-Switch 100DP3T8B13M1RE	20 V	Epoxy Sealed Terminals	15/32-32	Standard Round	Non-Illuminated	0.4 VA	Solder Lug	DPDT	20 V	-30 ░C	85 °C	On-Off-On	Brass, Chrome Plated		40000 Cycles	17.98 mm	11.91 mm
E-Switch 100DP3T1B1M6QEH	120 V	Epoxy Sealed Terminals	1/4-40	Standard Round	Non-Illuminated	5 A	PC Pin	DPDT	28 V	-30 ░C	85 °C	On-Off-On	Brass, Chrome Plated	Panel Mount, Right Angle	40000 Cycles	10.41 mm	0.25 in
E-Switch 100DP3T1B9M2QE	120 V	Epoxy Sealed Terminals	1/4-40	Standard Round	Non-Illuminated	5 A	PC Pin	DPDT	28 V	-30 ░C	85 °C	On-Off-On	Brass, Chrome Plated		40000 Cycles	10.41 mm	0.25 in
E-Switch 100DP3T8B13M1QEH	120 V	Epoxy Sealed Terminals	15/32-32	Standard Round	Non-Illuminated	5 A	Solder Lug	DPDT	28 V	-30 ░C	85 °C	On-Off-On	Brass, Chrome Plated		40000 Cycles	18 mm	11.91 mm
E-Switch 100DP3T5B4M2RE	20 V	Epoxy Sealed Terminals	Unthreaded	Standard Round	Non-Illuminated	0.4 VA	PC Pin	DPDT	20 V	-30 ░C	85 °C	On-Off-On	Brass, Chrome Plated	Through Hole	40000 Cycles	21.34 mm
E-Switch 100DP3T8B13M2QEH	120 V	Epoxy Sealed Terminals	15/32-32	Standard Round	Non-Illuminated	5 A	PC Pin	DPDT	28 V	-30 ░C	85 °C	On-Off-On	Brass, Chrome Plated		40000 Cycles	18 mm	11.91 mm
E-Switch 100DP3T1B1M2REH	20 V	Epoxy Sealed Terminals	1/4-40	Standard Round	Non-Illuminated	0.4 VA	PC Pin	DPDT	20 V	-30 ░C	85 °C	On-Off-On	Brass, Chrome Plated		40000 Cycles	10.41 mm	0.25 in
