MAX11614EVSYS+
ActiveAnalog Devices Inc./Maxim Integrated

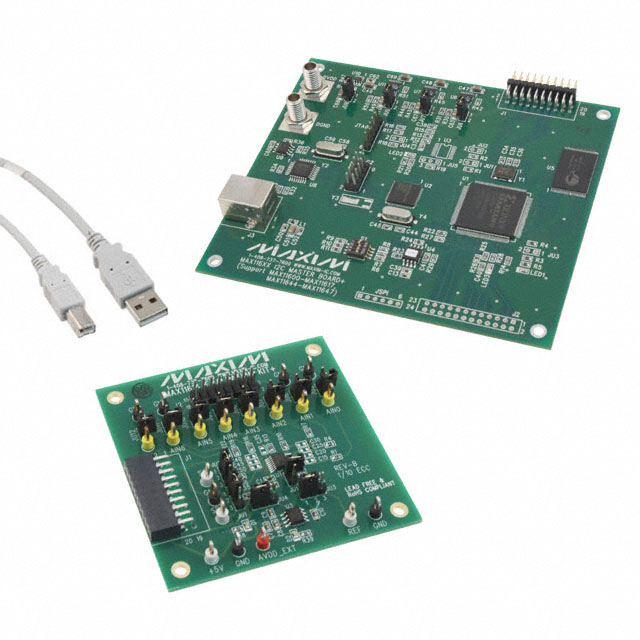

EVALUATION SYSTEM FOR MAX11614
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MAX11614EVSYS+
ActiveAnalog Devices Inc./Maxim Integrated
EVALUATION SYSTEM FOR MAX11614
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | MAX11614EVSYS+ | MAX11614 Series |
|---|---|---|
| Architecture | - | SAR |
| Configuration | - | MUX-S/H-ADC |
| Data Interface | Serial, I2C | I2C, Serial |
| Input Type | - | Single Ended, Differential |
| Mounting Type | - | Surface Mount |
| Number of A/D Converters | 1 | 1 |
| Number of Bits | 10, 8, 12 | 8 - 12 bits |
| Number of Inputs | - | 4 - 8 |
| Operating Temperature | - | 85 °C |
| Operating Temperature | - | -40 °C |
| Package / Case | - | 0.154 in |
| Package / Case | - | 16-SSOP |
| Package / Case | - | 3.9 mm |
| Ratio - S/H:ADC | - | 1:1 |
| Reference Type | - | External, Internal |
| Sampling Rate (Per Second) | 94.4 k per second | 94.4 k per second |
| Supplied Contents | Board(s) | Board(s) |
| Supplier Device Package | - | 16-QSOP |
| Utilized IC / Part | MAX11614 | MAX11614 |
| Voltage - Supply, Analog | - | 5 V |
| Voltage - Supply, Digital | - | 5 V |
MAX11614 Series
IC ADC 12BIT SAR 16QSOP
| Part | Supplier Device Package | Architecture | Reference Type | Voltage - Supply, Digital | Package / Case | Package / Case | Package / Case | Mounting Type | Input Type | Configuration | Ratio - S/H:ADC | Sampling Rate (Per Second) | Voltage - Supply, Analog | Operating Temperature [Max] | Operating Temperature [Min] | Number of Inputs | Data Interface | Number of Bits | Number of A/D Converters | Supplied Contents | Utilized IC / Part |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Analog Devices Inc./Maxim Integrated MAX11614EEE+T | 16-QSOP | SAR | External, Internal | 5 V | 0.154 in | 16-SSOP | 3.9 mm | Surface Mount | Differential, Single Ended | MUX-S/H-ADC | 1:1 | 94.4 k per second | 5 V | 85 °C | -40 °C | 4, 8 | I2C | 12 bits | 1 | ||
Analog Devices Inc./Maxim Integrated MAX11614EEE+ | 16-QSOP | SAR | External, Internal | 5 V | 0.154 in | 16-SSOP | 3.9 mm | Surface Mount | Differential, Single Ended | MUX-S/H-ADC | 1:1 | 94.4 k per second | 5 V | 85 °C | -40 °C | 4, 8 | I2C | 12 bits | 1 | ||
Analog Devices Inc./Maxim Integrated MAX11614EVSYS+ | 94.4 k per second | I2C, Serial | 8, 10, 12 | 1 | Board(s) | MAX11614 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
MAX11614 Series
MAX11614 - 8, 10, 12 Bit 94.4k Samples per Second Analog to Digital Converter (ADC) Evaluation Board
