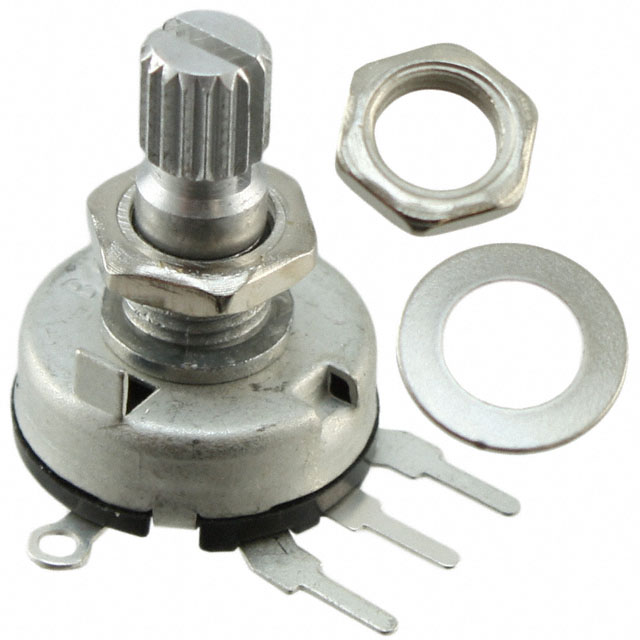

P170S2-QC15BR1K

Active

TT Electronics/BI

POT 1K OHM 1/10W PLASTIC LINEAR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

P170S2-QC15BR1K

Active

TT Electronics/BI

POT 1K OHM 1/10W PLASTIC LINEAR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	P170S2-QC15BR1K	P170S Series

Actuator Diameter [diameter]	0.236 in	0.236 in
Actuator Diameter [diameter]	6 mm	6 mm
Actuator Length	15 mm	15 mm
Actuator Length	-	10 mm
Actuator Length	-	0.394 in
Actuator Length	-	20 mm
Actuator Length [z]	0.591 in	0.591 - 0.787 in
Actuator Type	Knurled and Slotted	Flatted, Knurled and Slotted, Slotted
Adjustment Type	Side Adjustment	Top Adjustment, User Defined, Side Adjustment, Rear Adjustment
Built in Switch	Rotary, SPST	Rotary, SPST
Bushing Thread	0.75	0.75
Bushing Thread	M7	M7
Number of Gangs	1	1
Number of Turns	1	1
Power (Watts)	0.1 W	0.1 - 50 mW
Power (Watts)	0.1 W	0.05 - 0.1 W
Resistance (Ohms)	1 kOhms	1 - 500 kOhms
Resistance (Ohms)	-	10k
Resistive Material	Conductive Plastic	Conductive Plastic
Rotation	260 °	260 °
Size - Body	Round	Round
Size - Body [diameter]	17 mm	17 mm
Size - Body [diameter]	0.669 in	0.669 in
Taper	Linear	Logarithmic, Linear
Termination Style	PC Pins	PC Pins, Solder Lug
Tolerance	20 %	20 %

P170S Series

POT 10K OHM 1/20W PLASTIC LOG

Part	Adjustment Type	Built in Switch	Termination Style	Number of Gangs	Size - Body [diameter]	Size - Body	Size - Body [diameter]	Taper	Resistance (Ohms)	Actuator Diameter [diameter]	Actuator Diameter [diameter]	Actuator Length [z]	Actuator Length	Actuator Type	Tolerance	Number of Turns	Rotation	Bushing Thread	Bushing Thread	Resistive Material	Power (Watts)	Power (Watts)	Actuator Length [x]	Actuator Length [x]	Resistance (Ohms)	Actuator Length [z]
TT Electronics/BI P170SP1-FC15AR10K	Top Adjustment	Rotary, SPST	PC Pins	1	17 mm	Round	0.669 in	Logarithmic	10k	0.236 in	6 mm	0.591 in	15 mm	Flatted	20 %	1	260 °	0.75	M7	Conductive Plastic	0.05 W	50 mW
TT Electronics/BI P170SP1-QC15BR10K	Top Adjustment	Rotary, SPST	PC Pins	1	17 mm	Round	0.669 in	Linear	10k	0.236 in	6 mm	0.591 in	15 mm	Knurled and Slotted	20 %	1	260 °	0.75	M7	Conductive Plastic	0.1 W	0.1 W
TT Electronics/BI P170S-EA10BR500K	User Defined	Rotary, SPST	Solder Lug	1	17 mm	Round	0.669 in	Linear		0.236 in	6 mm			Slotted	20 %	1	260 °	0.75	M7	Conductive Plastic	0.1 W	0.1 W	10 mm	0.394 in	500 kOhms
TT Electronics/BI P170SP1-EA15BR100K	Top Adjustment	Rotary, SPST	PC Pins	1	17 mm	Round	0.669 in	Linear		0.236 in	6 mm	0.591 in	15 mm	Slotted	20 %	1	260 °	0.75	M7	Conductive Plastic	0.1 W	0.1 W			100 kOhms
TT Electronics/BI P170S2-FC20BR100K	Side Adjustment	Rotary, SPST	PC Pins	1	17 mm	Round	0.669 in	Linear		0.236 in	6 mm	0.787 in		Flatted	20 %	1	260 °	0.75	M7	Conductive Plastic	0.1 W	0.1 W			100 kOhms	20 mm
TT Electronics/BI P170SP1-FC15BR5K	Top Adjustment	Rotary, SPST	PC Pins	1	17 mm	Round	0.669 in	Linear		0.236 in	6 mm	0.591 in	15 mm	Flatted	20 %	1	260 °	0.75	M7	Conductive Plastic	0.1 W	0.1 W			5 kOhms
TT Electronics/BI P170SPD-FC15BR10K	Rear Adjustment	Rotary, SPST	PC Pins	1	17 mm	Round	0.669 in	Linear	10k	0.236 in	6 mm	0.591 in	15 mm	Flatted	20 %	1	260 °	0.75	M7	Conductive Plastic	0.1 W	0.1 W
TT Electronics/BI P170SP1-QC20BR1K	Top Adjustment	Rotary, SPST	PC Pins	1	17 mm	Round	0.669 in	Linear		0.236 in	6 mm	0.787 in		Knurled and Slotted	20 %	1	260 °	0.75	M7	Conductive Plastic	0.1 W	0.1 W			1 kOhms	20 mm
TT Electronics/BI P170SPD-QC15BR10K	Rear Adjustment	Rotary, SPST	PC Pins	1	17 mm	Round	0.669 in	Linear	10k	0.236 in	6 mm	0.591 in	15 mm	Knurled and Slotted	20 %	1	260 °	0.75	M7	Conductive Plastic	0.1 W	0.1 W
TT Electronics/BI P170SP1-FC15BR10K	Top Adjustment	Rotary, SPST	PC Pins	1	17 mm	Round	0.669 in	Linear	10k	0.236 in	6 mm	0.591 in	15 mm	Flatted	20 %	1	260 °	0.75	M7	Conductive Plastic	0.1 W	0.1 W

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 2.87
		10	$ 2.52
		25	$ 2.26
		40	$ 2.17
		80	$ 2.08
		230	$ 2.00
		630	$ 1.65
		1260	$ 1.56
		5040	$ 1.30

Description

General part information

P170S Series

1k Ohm 1 Gang Linear Panel Mount Potentiometer 1.0 Turns Conductive Plastic 0.1W, 1/10W PC Pins
