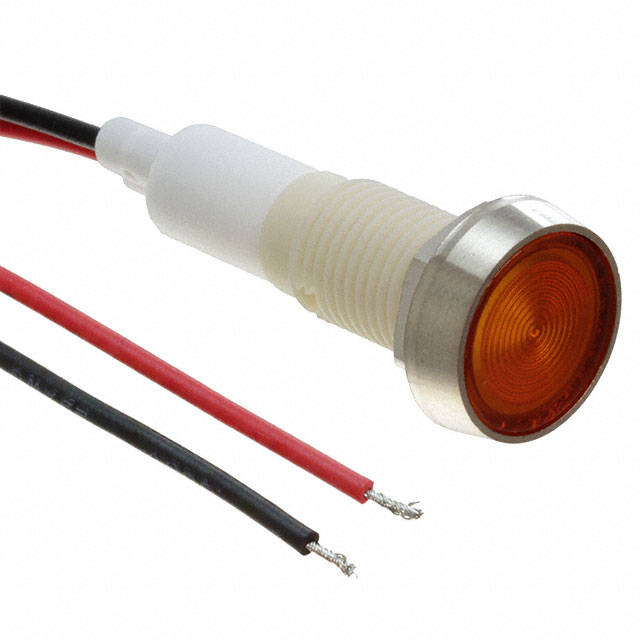

FL1P-10NW-4-Y2V

Active

Mallory Sonalert Products Inc.

LED YEL 10MM NUT 2VAC/DC STK

Search across all available documentation for this part.

Active

Mallory Sonalert Products Inc.

LED YEL 10MM NUT 2VAC/DC STK

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	35	$ 3.11

General part information

LED Panel Indicator Yellow 35° 2V 20mA Wire Leads - 7.3" (185.42mm)

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	FL1P-10NW-4-Y2V	FL1P Series

Ingress Protection	IP50	IP50
Lamp Color	Yellow	Red, Yellow, Green
Lens Color	Yellow	Red, Yellow, Green
Lens Size	-	11.5 - 19.4 mm
Lens Style	-	Round with Domed Top
Millicandela Rating [Max]	1500 mcd	1500 - 10000 mcd
Millicandela Rating [Min]	1000 mcd	1000 - 8000 mcd
Panel Cutout Dimensions	10 mm	10 mm
Panel Cutout Dimensions	0.394 in	0.394 in
Panel Cutout Shape	Round	Round
Ratings	AC/DC	AC/DC
Termination Style	Wire Leads - 7.3" (185.42mm)	Quick Connect - 0.189" (4.8mm), Quick Connect - 0.250" (6.3mm), Wire Leads - 7.3" (185.42mm)
Type	LED	LED
Viewing Angle	35 °	35 - 60 °
Voltage	2 V	2 - 110 V

LED RED 10MM SNAP 24VAC/DC STK

Part	Lens Color	Millicandela Rating [Max]	Millicandela Rating [Min]	Panel Cutout Shape	Ingress Protection	Type	Voltage	Lens Style	Lens Size [diameter]	Panel Cutout Dimensions	Panel Cutout Dimensions	Lamp Color	Viewing Angle	Termination Style	Ratings
Mallory Sonalert Products Inc. FL1P-10QJ-1-R24V	Red	1500 mcd	1000 mcd	Round	IP50	LED	24 V	Round with Domed Top	11.5 mm	10 mm	0.394 in	Red	35 °	Quick Connect - 0.189" (4.8mm)	AC/DC
Mallory Sonalert Products Inc. FL1P-10NJ-4-Y110V	Yellow	1500 mcd	1000 mcd	Round	IP50	LED	110 V			10 mm	0.394 in	Yellow	35 °	Quick Connect - 0.250" (6.3mm)	AC/DC
Mallory Sonalert Products Inc. FL1P-10NJ-4-R2V	Red	1500 mcd	1000 mcd	Round	IP50	LED	2 V			10 mm	0.394 in	Red	35 °	Quick Connect - 0.250" (6.3mm)	AC/DC
Mallory Sonalert Products Inc. FL1P-10NW-4-Y2V	Yellow	1500 mcd	1000 mcd	Round	IP50	LED	2 V			10 mm	0.394 in	Yellow	35 °	Wire Leads - 7.3" (185.42mm)	AC/DC
Mallory Sonalert Products Inc. FL1P-10NW-1-G3V	Green	10000 mcd	8000 mcd	Round	IP50	LED	3 V		19.4 mm	10 mm	0.394 in	Green	60 °	Wire Leads - 7.3" (185.42mm)	AC/DC
Mallory Sonalert Products Inc. FL1P-10QJ-1-Y2V	Yellow	1500 mcd	1000 mcd	Round	IP50	LED	2 V	Round with Domed Top	11.5 mm	10 mm	0.394 in	Yellow	35 °	Quick Connect - 0.189" (4.8mm)	AC/DC
Mallory Sonalert Products Inc. FL1P-10NW-1-Y24V	Yellow	1500 mcd	1000 mcd	Round	IP50	LED	24 V		19.4 mm	10 mm	0.394 in	Yellow	35 °	Wire Leads - 7.3" (185.42mm)	AC/DC
