DDRH-15-12P
ActiveMEAN WELL USA Inc.
I/P:150~1500VDC;O/P:12V/0~1.25A
DDRH-15-12P
ActiveMEAN WELL USA Inc.
I/P:150~1500VDC;O/P:12V/0~1.25A
Description
General part information

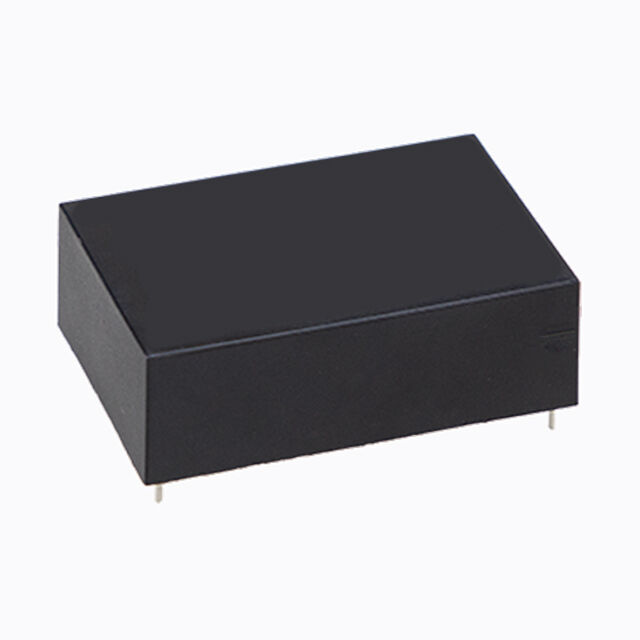

DDRH-15-12P
High Voltage - Isolated Module DC DC Converter 1 Output 12V 1.25A 150V - 1500V Input
Technical Specifications
Parameters and characteristics for this part
| Specification | DDRH-15-12P |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | UKCA, CE, EAC |
| Current - Output (Max) | 1.25 A |
| Efficiency | 79 % |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 80 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 5-DIP Module |
| Power (Watts) | 15 W |
| Size / Dimension Height | 0.98 in |
| Size / Dimension Length | 3 in |
| Size / Dimension Width | 2 in |
| Type | High Voltage - Isolated Module |
| Voltage - Input (Max) | 1500 V |
| Voltage - Input (Min) | 150 V |
| Voltage - Isolation | 4000 Vpk |
| Voltage - Output 1 | 12 V |
