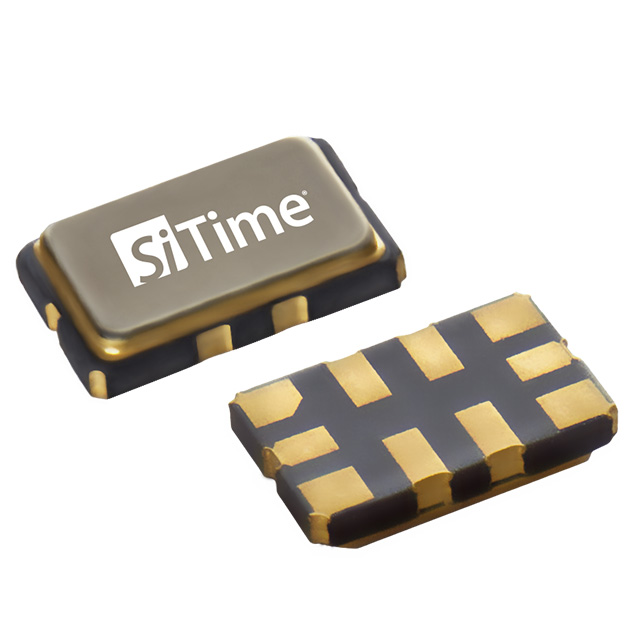

SIT5156AE-FD-30VT-26.000000

Active

SiTime

MEMS OSC VCTCXO 26.0000MHZ

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Manufacturing Notes for SiTime Products

SIT5156AE-FD-30VT-26.000000

Active

SiTime

MEMS OSC VCTCXO 26.0000MHZ

Deep-Dive with AI

DocumentsDatasheet Manufacturing Notes for SiTime Products

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	SIT5156AE-FD-30VT-26.000000	SIT5156 Series

Absolute Pull Range (APR)	6.25 ppm	2.75 - 796.5 ppm
Base Resonator	MEMS	MEMS
Current - Supply (Disable) (Max)	-	51 mA
Current - Supply (Max) [Max]	57 mA	57 mA
Frequency	26 MHz	1.33 - 52 MHz
Frequency Stability	2.5 ppm	1 - 500 ppb
Function	-	Enable/Disable
Height - Seated (Max) [Max] [z]	0.042 in	0.042 in
Height - Seated (Max) [Max] [z]	1.06 mm	1.06 mm
Mounting Type	Surface Mount	Surface Mount
Operating Temperature [Max]	105 ░C	70 - 105 °C
Operating Temperature [Min]	-40 °C	-40 - -20 °C
Output	LVCMOS	LVCMOS, Clipped Sine Wave
Package / Case	10-SMD, No Lead	10-SMD, No Lead
Size / Dimension [x]	0.197 in	0.197 in
Size / Dimension [x]	5 mm	5 mm
Size / Dimension [y]	0.126 "	0.126 "
Size / Dimension [y]	3.2 mm	3.2 mm
Supplier Device Package	-	10-CQFN (5x3.2)
Type	VCTCXO	TCXO, VCTCXO, DCTCXO
Voltage - Supply	3 V	2.5 - 3.3 V

SIT5156 Series

MEMS OSC TCXO 50.0000MHZ LVCMOS

...

Part	Operating Temperature [Max]	Operating Temperature [Min]	Function	Output	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Voltage - Supply	Frequency Stability	Mounting Type	Base Resonator	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Type	Current - Supply (Disable) (Max) [Max]	Frequency	Package / Case	Current - Supply (Max) [Max]	Absolute Pull Range (APR)	Supplier Device Package
SiTime SIT5156AI-FK-33E0-50.000000	85 °C	-40 °C	Enable/Disable	LVCMOS	0.042 in	1.06 mm	3.3 V	500 ppb	Surface Mount	MEMS	0.197 in	0.126 "	3.2 mm	5 mm	TCXO	51 mA	50 MHz	10-SMD, No Lead
SiTime SIT5156AECFD-25VT-19.200000	105 ░C	-40 °C		Clipped Sine Wave	0.042 in	1.06 mm	2.5 V	2.5 ppm	Surface Mount	MEMS	0.197 in	0.126 "	3.2 mm	5 mm	VCTCXO		19.2 MHz	10-SMD, No Lead	57 mA	6.25 ppm	10-CQFN (5x3.2)
SiTime SIT5156AICFD-28E0-16.367667	85 °C	-40 °C	Enable/Disable	Clipped Sine Wave	0.042 in	1.06 mm	2.8 V	2.5 ppm	Surface Mount	MEMS	0.197 in	0.126 "	3.2 mm	5 mm	TCXO	51 mA	16.367667 MHz	10-SMD, No Lead
SiTime SIT5156AICFD-33N0-16.367667	85 °C	-40 °C		Clipped Sine Wave	0.042 in	1.06 mm	3.3 V	2.5 ppm	Surface Mount	MEMS	0.197 in	0.126 "	3.2 mm	5 mm	TCXO		16.367667 MHz	10-SMD, No Lead
SiTime SIT5156AE-FD-33E0-38.880000	105 ░C	-40 °C	Enable/Disable	LVCMOS	0.042 in	1.06 mm	3.3 V	2.5 ppm	Surface Mount	MEMS	0.197 in	0.126 "	3.2 mm	5 mm	TCXO	51 mA	38.88 MHz	10-SMD, No Lead
SiTime SIT5156AECFK-25N0-10.949297	105 ░C	-40 °C		Clipped Sine Wave	0.042 in	1.06 mm	2.5 V	500 ppb	Surface Mount	MEMS	0.197 in	0.126 "	3.2 mm	5 mm	TCXO		10.949297 MHz	10-SMD, No Lead
SiTime SIT5156AE-FK-28N0-12.800000	105 ░C	-40 °C		LVCMOS	0.042 in	1.06 mm	2.8 V	500 ppb	Surface Mount	MEMS	0.197 in	0.126 "	3.2 mm	5 mm	TCXO		12.8 MHz	10-SMD, No Lead
SiTime SIT5156AECFK-25E0-30.720000	105 ░C	-40 °C	Enable/Disable	Clipped Sine Wave	0.042 in	1.06 mm	2.5 V	500 ppb	Surface Mount	MEMS	0.197 in	0.126 "	3.2 mm	5 mm	TCXO	51 mA	30.72 MHz	10-SMD, No Lead
SiTime SIT5156AICFA-28VT-16.384000	85 °C	-40 °C		Clipped Sine Wave	0.042 in	1.06 mm	2.8 V	1 ppm	Surface Mount	MEMS	0.197 in	0.126 "	3.2 mm	5 mm	VCTCXO		16.384 MHz	10-SMD, No Lead	57 mA	6.25 ppm
SiTime SIT5156AE-FD-33N0-16.368000	105 ░C	-40 °C		LVCMOS	0.042 in	1.06 mm	3.3 V	2.5 ppm	Surface Mount	MEMS	0.197 in	0.126 "	3.2 mm	5 mm	TCXO		16.368 MHz	10-SMD, No Lead

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Strip	1	$ 48.91
		10	$ 46.38
		50	$ 45.54
		100	$ 43.85
