6XV18502LH20

Active

Siemens

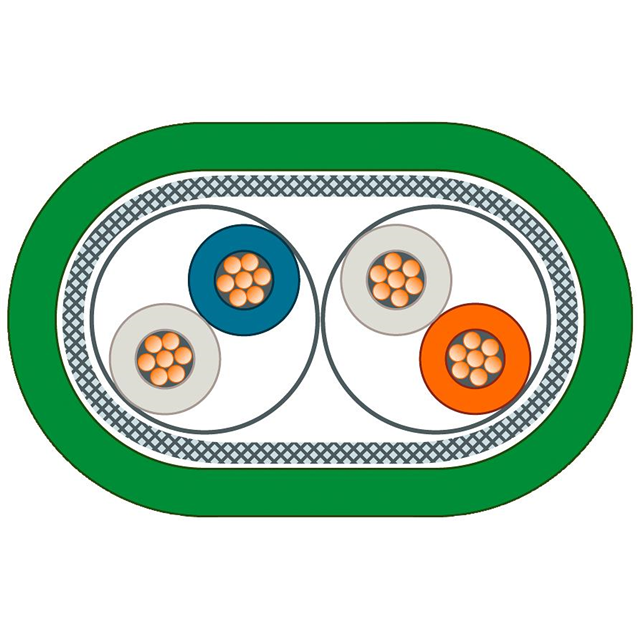

CBL ASSY 15/RJ45 6.56'

Search across all available documentation for this part.

Active

Siemens

CBL ASSY 15/RJ45 6.56'

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	6XV18502LH20	6XV18502 Series

Cable Type	Round	Round Cable, Round
Color	Green	Green
Connector Type	-	D-Sub 09 pos Female to RJ45, D-Sub 15 pos Female to RJ45, Plug to Plug
Length	-	19.69 - 32.81 ft
Length	-	6 - 10 m
Length [x]	2 m	1 - 500 m
Length [x]	6.56 ft	1.64 - 6.56 ft
Mounting Type	-	Free Hanging (In-Line)
Number of Positions/Contacts	-	4
Number of Positions/Contacts	-	8
Shielding	Shielded	Shielded
Style	-	Cat5, Industrial Environments - IP20

CBL ASY D-SUB 9P F TO RJ45 3.28'

Part	Connector Type	Shielding	Color	Length [x]	Length [x]	Number of Positions/Contacts [custom]	Number of Positions/Contacts [custom]	Cable Type	Style	Length	Length	Mounting Type
Siemens 6XV18502NH10	D-Sub 09 pos Female to RJ45	Shielded	Green	1 m	3.28 ft
Siemens 6XV18502SH20		Shielded	Green	2 m	6.56 ft
Siemens 6XV18502GH60		Shielded	Green			4	8	Round Cable	Cat5, Industrial Environments - IP20	19.69 ft	6 m
Siemens 6XV18502JN10		Shielded	Green					Round		32.81 ft	10 m
Siemens 6XV18502ME50	D-Sub 09 pos Female to RJ45	Shielded	Green	500 mm	1.64 ft
Siemens 6XV18502SE50	D-Sub 15 pos Female to RJ45	Shielded	Green	500 mm	1.64 ft
Siemens 6XV18502GH10	Plug to Plug	Shielded	Green	1 m	3.28 ft	4	8	Round Cable	Cat5, Industrial Environments - IP20			Free Hanging (In-Line)
Siemens 6XV18502MH10	D-Sub 09 pos Female to RJ45	Shielded	Green	1 m	3.28 ft
Siemens 6XV18502LH20		Shielded	Green	2 m	6.56 ft			Round

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 75.89

General part information

Cable Assembly 6.56' (2.00m)
