SMCD301AK

Active

TE Connectivity Raychem Cable Protection

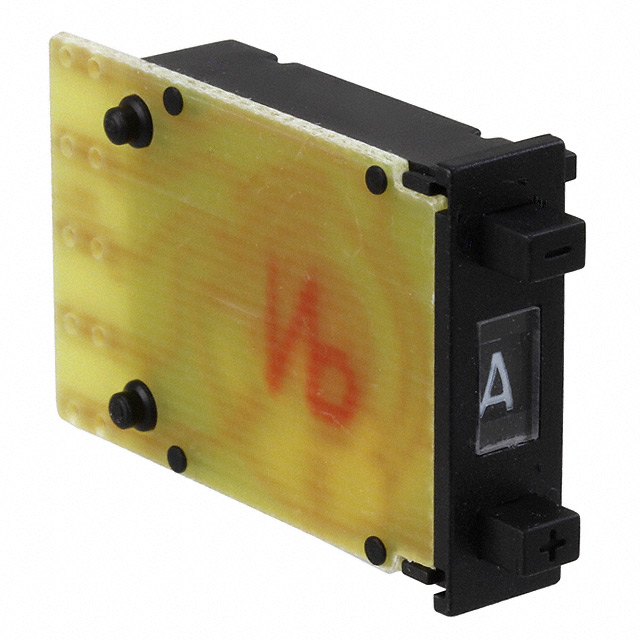

THUMBWHEEL SWITCH, SMCD SERIES, PANEL MOUNT, SOLDER, HEXADECIMAL, 0 TO 9, A TO F

Search across all available documentation for this part.

Active

TE Connectivity Raychem Cable Protection

THUMBWHEEL SWITCH, SMCD SERIES, PANEL MOUNT, SOLDER, HEXADECIMAL, 0 TO 9, A TO F

Technical Specifications

Parameters and characteristics for this part

Part	Actuator Type	Mounting Type	Contact Finish	Display Characters - Height [z]	Display Characters - Height [z]	End Caps	Contact Rating @ Voltage	Read Out [Min]	Read Out [Max]	Section Width [x]	Section Width [x]	Color	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Termination Style	Housing Material	Depth Behind Flange	Output Code	Number of Sections	Read Out [Max]	Read Out [Min]
TE Connectivity Raychem Cable Protection SMCD137AK	Pushwheel	Panel Mount Snap-In	Gold	0.193 "	4.9 mm	Sold Separately	0.4 VA 20 VAC/DC	0	9	0.3 in	7.62 mm	Black	Copper Alloy	-20 C	80 C	Card Edge Solder Pad	Polyphenylene Oxide (PPO)	32 mm	BCD
TE Connectivity Raychem Cable Protection SMCD301AK	Pushwheel	Panel Mount Snap-In	Gold	0.134 in	3.4 mm	Sold Separately	0.4 VA 20 VAC/DC			0.3 in	7.62 mm	Black	Copper Alloy	-20 C	80 C	Card Edge Solder Pad	Polyphenylene Oxide (PPO)	32 mm	Hexadecimal	1	9 F	0 A
TE Connectivity Raychem Cable Protection SMCD111AK	Pushwheel	Panel Mount Snap-In	Gold	0.193 "	4.9 mm	Sold Separately	0.4 VA 20 VAC/DC	0	9	0.3 in	7.62 mm	Black	Copper Alloy	-20 C	80 C	Card Edge Solder Pad	Polyphenylene Oxide (PPO)	32 mm	Decimal	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	500	$ 21.48
Newark	Each	100	$ 26.96

General part information

Thumbwheel Switch Hexadecimal 0.4VA @ 20VAC/DC Panel Mount, Snap-In
