SM4685

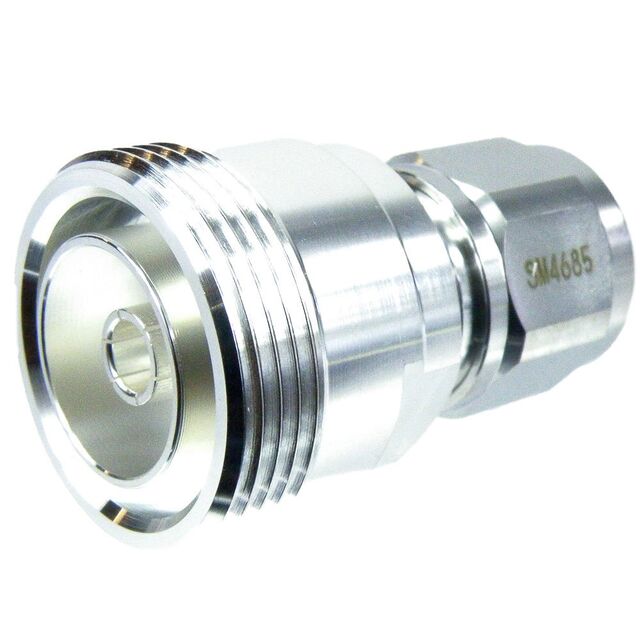

Adapter Coaxial Connector N Plug, Male Pin To 7/16 Jack, Female Socket 50 Ohms
Technical Specifications
Parameters and characteristics for this part
| Specification | SM4685 |
|---|---|
| Adapter Series | N to 7/16 DIN |
| Adapter Type | Plug to Jack |
| Body Finish | Silver |
| Body Material | Brass |
| Center Contact Material | Brass |
| Center Contact Plating | Silver |
| Center Gender | Male, Female |
| Conversion Type | Between Series |
| Convert From (Adapter End) | N Plug, Male Pin |
| Convert To (Adapter End) Gender | Female Socket |
| Convert To (Adapter End) Type | 7/16 Jack |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Threaded |
| Frequency - Max | 6000 MHz |
| Impedance | 50 Ohm |
| Mating Cycles | 500 cycles |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature (Max) | 120 °C |
| Operating Temperature (Min) | -55 °C |
| Style | Straight |
