Specification	0438796027

Applications	Medical, Industrial, Telecommunications, General Purpose
Connector Type	Header
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	100 µin
Contact Finish Thickness - Post	100 Ąin
Contact Length - Post	0.246 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Latch Holder
Features	Blind Mating
Insulation Color	Black
Insulation Height	0.587 in
Insulation Material	Nylon, Glass Filled, Polyamide (PA)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	14
Number of Positions Loaded	All
Number of Rows	2
Pitch - Mating	0.165 in
Row Spacing - Mating	0.165 in
Shrouding	Shrouded - 4 Wall
Style	Board, Board or Cable
Termination	Press-Fit, Solder

043879 Series

Part	Contact Type	Fastening Type	Row Spacing - Mating	Shrouding	Material Flammability Rating	Connector Type	Contact Finish - Post	Termination	Mounting Type	Contact Finish Thickness - Mating	Insulation Color	Number of Positions	Number of Positions Loaded	Features	Number of Rows	Insulation Height	Pitch - Mating	Contact Length - Post	Contact Finish - Mating	Contact Material	Insulation Material	Style	Contact Shape	Applications	Contact Finish Thickness - Post	Current Rating	Current Rating	Operating Temperature (Min)	Operating Temperature (Max)	Voltage Rating	Voltage Rating (Type)
Molex 0438790027	Male Pin	Push-Pull	0.165 in	Shrouded - 4 Wall	UL94 V-0	Header	Tin	Press-Fit Solder	Through Hole	100 µin	Black	14	All	Blind Mating	2	0.587 in	0.165 in	0.246 in	Tin	Phosphor Bronze	Glass Filled Nylon Polyamide (PA)	Board Board or Cable	Square	General Purpose Industrial Medical Telecommunications	100 Ąin
Molex 0438790057	Male Pin	Latch Holder	0.165 in	Shrouded - 4 Wall	UL94 V-0	Header	Tin	Press-Fit Solder	Through Hole	3 µin	Black	8	All	Blind Mating	2	0.587 in	0.165 in	0.246 in	Gold	Phosphor Bronze	Nylon Polyamide (PA)	Board Board or Cable	Square	General Purpose Industrial Medical Telecommunications	100 Ąin	0 A	Varies by Wire Gauge	-40 °C	105 °C	600 V	DC
Molex 0438796009	Male Pin	Latch Holder	0.165 in	Shrouded - 4 Wall	UL94 V-0	Header	Tin	Press-Fit Solder	Through Hole	100 µin	Black	18	All	Blind Mating	2	0.587 in	0.165 in	0.246 in	Tin	Phosphor Bronze	Glass Filled Nylon Polyamide (PA)	Board Board or Cable	Square	General Purpose Industrial Medical Telecommunications	100 Ąin

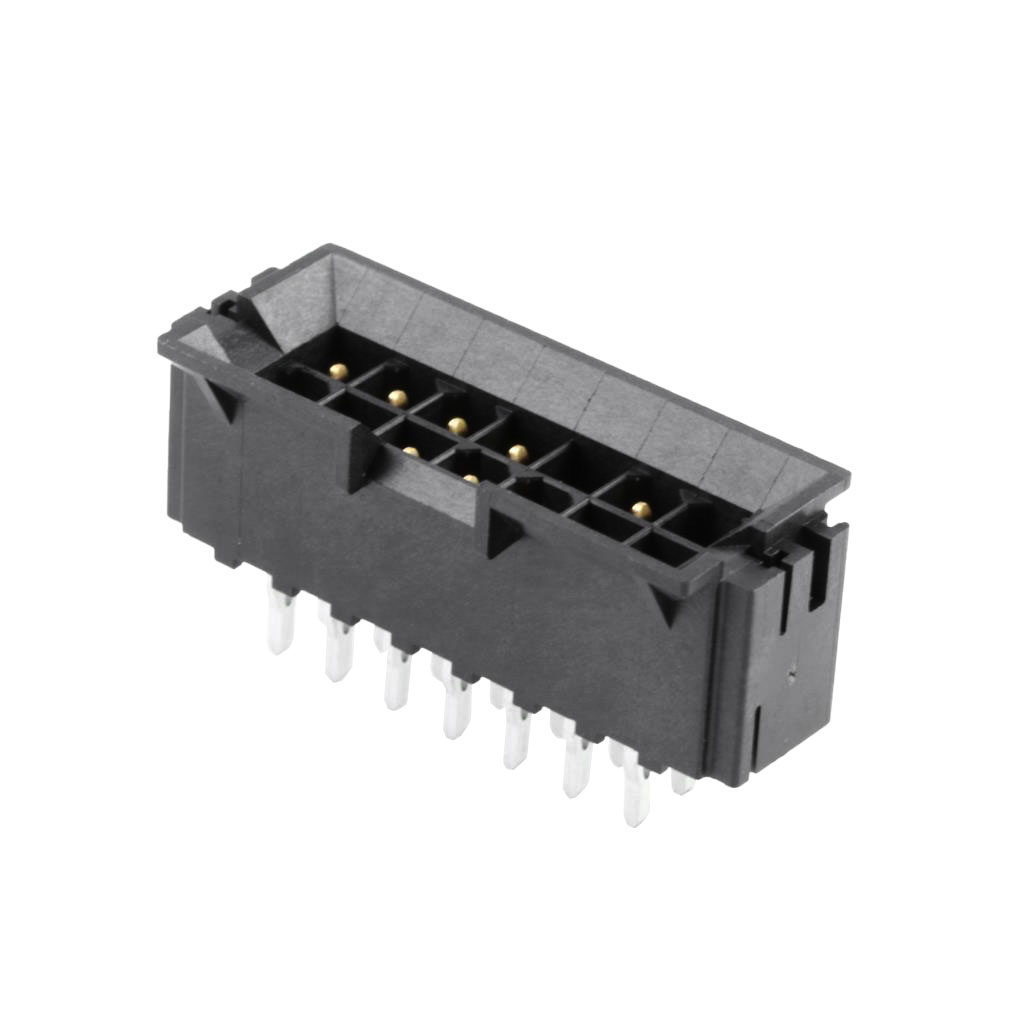

Molex 0438796036	Male Pin	Latch Holder	0.165 in	Shrouded - 4 Wall	UL94 V-0	Header	Tin	Press-Fit Solder	Through Hole	100 µin	Black	14	All	Blind Mating	2	0.587 in	0.165 in	0.246 in	Tin	Phosphor Bronze	Glass Filled Nylon Polyamide (PA)	Board Board or Cable	Square	General Purpose Industrial Medical Telecommunications	100 Ąin	0 A	Varies by Wire Gauge	-40 °C	105 °C	600 V	DC
Molex 0438790056	Male Pin	Latch Holder	0.165 in	Shrouded - 4 Wall	UL94 V-0	Header	Tin	Press-Fit Solder	Through Hole	30 µin	Black	6	All	Blind Mating	2	0.587 in	0.165 in	0.246 in	Gold	Phosphor Bronze	Glass Filled Nylon Polyamide (PA)	Board Board or Cable	Square	General Purpose Industrial Medical Telecommunications	100 Ąin
Molex 0438796016	Male Pin	Latch Holder	0.165 in	Shrouded - 4 Wall	UL94 V-0	Header	Tin	Press-Fit Solder	Through Hole	30 µin	Black	10	All	Blind Mating	2	0.587 in	0.165 in	0.246 in	Gold	Phosphor Bronze	Glass Filled Nylon Polyamide (PA)	Board Board or Cable	Square	General Purpose Industrial Medical Telecommunications	100 Ąin

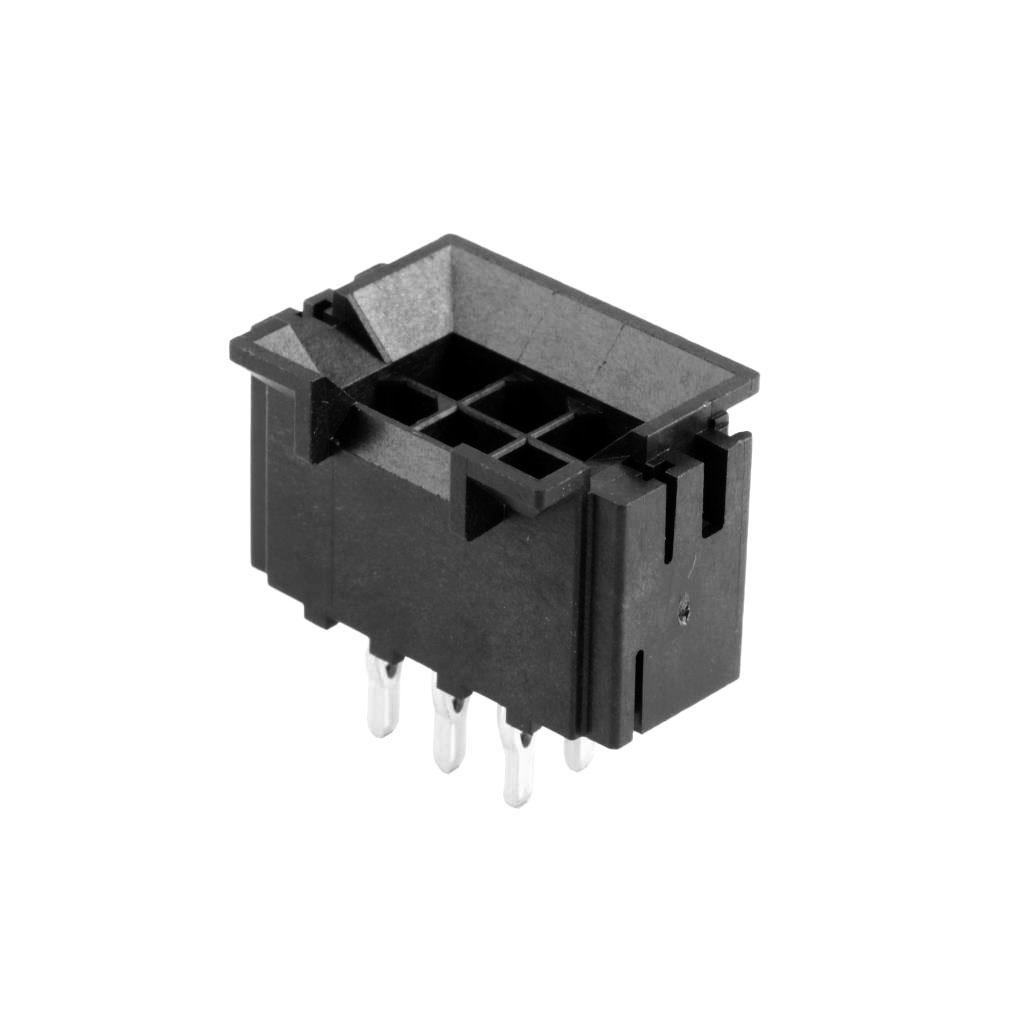

Molex 0438796010	Male Pin	Latch Holder	0.165 in	Shrouded - 4 Wall	UL94 V-0	Header	Tin	Press-Fit Solder	Through Hole	100 µin	Black	6	All	Blind Mating	2	0.587 in	0.165 in	0.246 in	Tin	Phosphor Bronze	Glass Filled Nylon Polyamide (PA)	Board Board or Cable	Square	General Purpose Industrial Medical Telecommunications	100 Ąin

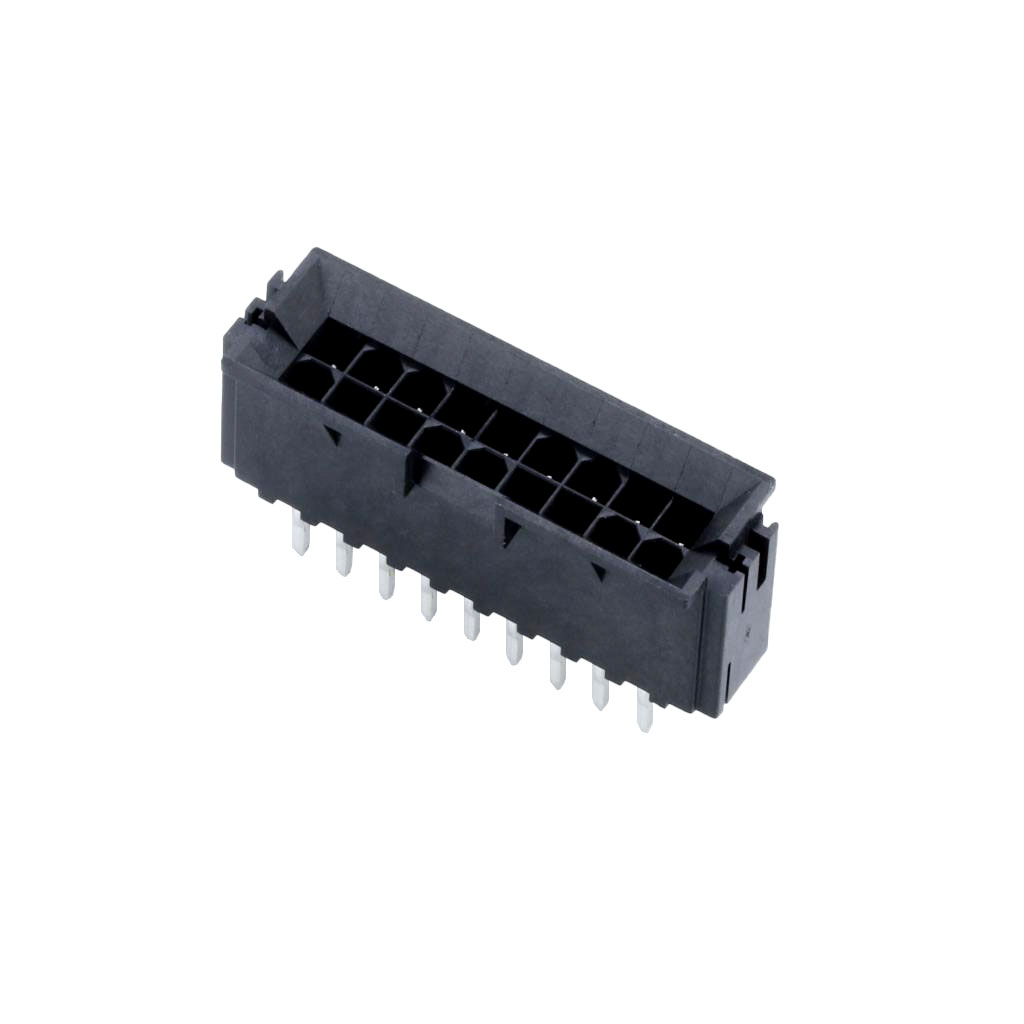

Molex 0438796035	Male Pin	Latch Holder	0.165 in	Shrouded - 4 Wall	UL94 V-0	Header	Tin	Press-Fit Solder	Through Hole	100 µin	Black	18	All	Blind Mating	2	0.587 in	0.165 in	0.246 in	Tin	Phosphor Bronze	Glass Filled Nylon Polyamide (PA)	Board Board or Cable	Square	General Purpose Industrial Medical Telecommunications	100 Ąin
Molex 0438796039	Male Pin	Latch Holder	0.165 in	Shrouded - 4 Wall	UL94 V-0	Header	Tin	Press-Fit Solder	Through Hole	100 µin	Black	10	All	Blind Mating	2	0.587 in	0.165 in	0.246 in	Tin	Phosphor Bronze	Glass Filled Nylon Polyamide (PA)	Board Board or Cable	Square	General Purpose Industrial Medical Telecommunications	100 Ąin
Molex 0438790038	Male Pin	Latch Holder	0.165 in	Shrouded - 4 Wall	UL94 V-0	Header	Tin	Press-Fit Solder	Through Hole	30 µin	Black	14	All	Blind Mating	2	0.587 in	0.165 in	0.229 in	Gold	Phosphor Bronze	Glass Filled Nylon Polyamide (PA)	Board Board or Cable	Square	General Purpose Industrial Medical Telecommunications	100 Ąin
