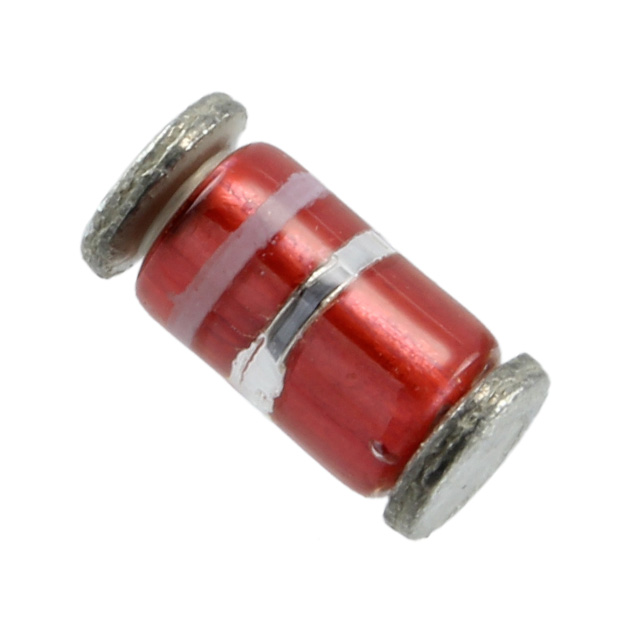

1N3017BUR-1
ActiveMicrochip Technology
VOLTAGE REGULATOR DO-213AB ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
1N3017BUR-1
ActiveMicrochip Technology
VOLTAGE REGULATOR DO-213AB ROHS COMPLIANT: YES
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 1N3017BUR-1 | 1N3017 Series |
|---|---|---|
| - | - | |
| Current - Reverse Leakage @ Vr | 100 µA | 100 - 150 µA |
| Grade | - | Military |
| Impedance (Max) (Zzt) [Max] | 4 Ohms | 4 Ohms |
| Mounting Type | Surface Mount | Through Hole, Surface Mount |
| Operating Temperature [Max] | 347 °F | 347 °F |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Package / Case | DO-213AB, MELF | DO-204AL, DO-41, Axial, DO-213AB, MELF (Glass), MELF |
| Power - Max [Max] | 1 W | 1 W |
| Qualification | - | MIL-PRF-19500/115 |
| Supplier Device Package | DO-213AB | DO-204AL (DO-41), DO-213AB (MELF, LL41), DO-213AB |
| Tolerance | 5 % | 1 - 5 % |
| Voltage - Forward (Vf) (Max) @ If | 1.2 V | 1.2 V |
| Voltage - Zener (Nom) (Vz) | 7.5 V | 7.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
1N3017 Series
Zener Diode Single 2-Pin 7.5V, 2%, 4Ohm, 1000mW DO-41 Bag
| Part | Voltage - Zener (Nom) (Vz) | Qualification | Power - Max [Max] | Impedance (Max) (Zzt) [Max] | Mounting Type | Supplier Device Package | Operating Temperature [Min] | Operating Temperature [Max] | Grade | Current - Reverse Leakage @ Vr | Package / Case | Tolerance | Voltage - Forward (Vf) (Max) @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Microchip Technology JAN1N3017D-1 | 7.5 V | MIL-PRF-19500/115 | 1 W | 4 Ohms | Through Hole | DO-204AL (DO-41) | -55 °C | 347 °F | Military | 150 µA | Axial, DO-204AL, DO-41 | 1 % | 1.2 V |
Microchip Technology 1N3017BUR-1 | |||||||||||||
Microchip Technology JANTXV1N3017B-1 | |||||||||||||
Microchip Technology JANTXV1N3017D-1 | 7.5 V | MIL-PRF-19500/115 | 1 W | 4 Ohms | Through Hole | DO-204AL (DO-41) | -55 °C | 347 °F | Military | 100 µA | Axial, DO-204AL, DO-41 | 1 % | 1.2 V |
Microchip Technology JANTXV1N3017CUR-1 | 7.5 V | MIL-PRF-19500/115 | 1 W | 4 Ohms | Surface Mount | DO-213AB (MELF, LL41) | -55 °C | 347 °F | Military | 100 µA | DO-213AB, MELF (Glass) | 2 % | 1.2 V |
Microchip Technology JANTX1N3017D-1 | |||||||||||||
Microchip Technology JAN1N3017BUR-1 | |||||||||||||
Microchip Technology JAN1N3017CUR-1 | 7.5 V | MIL-PRF-19500/115 | 1 W | 4 Ohms | Surface Mount | DO-213AB (MELF, LL41) | -55 °C | 347 °F | Military | 150 µA | DO-213AB, MELF (Glass) | 2 % | 1.2 V |
Microchip Technology JANTXV1N3017B-1 | 7.5 V | MIL-PRF-19500/115 | 1 W | 4 Ohms | Through Hole | DO-204AL (DO-41) | -55 °C | 347 °F | Military | 100 µA | Axial, DO-204AL, DO-41 | 5 % | 1.2 V |
Microchip Technology JANTX1N3017BUR-1 | |||||||||||||
Microchip Technology JANTX1N3017DUR-1 | 7.5 V | MIL-PRF-19500/115 | 1 W | 4 Ohms | Surface Mount | DO-213AB (MELF, LL41) | -55 °C | 347 °F | Military | 100 µA | DO-213AB, MELF (Glass) | 1 % | 1.2 V |
Microchip Technology JAN1N3017C-1 | 7.5 V | MIL-PRF-19500/115 | 1 W | 4 Ohms | Through Hole | DO-204AL (DO-41) | -55 °C | 347 °F | Military | 150 µA | Axial, DO-204AL, DO-41 | 2 % | 1.2 V |
Microchip Technology JANTX1N3017BUR-1 | 7.5 V | MIL-PRF-19500/115 | 1 W | 4 Ohms | Surface Mount | DO-213AB (MELF, LL41) | -55 °C | 347 °F | Military | 100 µA | DO-213AB, MELF (Glass) | 5 % | 1.2 V |
Microchip Technology 1N3017B-1 | |||||||||||||
Microchip Technology JANTXV1N3017DUR-1 | 7.5 V | MIL-PRF-19500/115 | 1 W | 4 Ohms | Surface Mount | DO-213AB (MELF, LL41) | -55 °C | 347 °F | Military | 100 µA | DO-213AB, MELF (Glass) | 1 % | 1.2 V |
Microchip Technology JANTX1N3017CUR-1 | 7.5 V | MIL-PRF-19500/115 | 1 W | 4 Ohms | Surface Mount | DO-213AB (MELF, LL41) | -55 °C | 347 °F | Military | 100 µA | DO-213AB, MELF (Glass) | 2 % | 1.2 V |
Microchip Technology JANTXV1N3017BUR-1 | 7.5 V | MIL-PRF-19500/115 | 1 W | 4 Ohms | Surface Mount | DO-213AB (MELF, LL41) | -55 °C | 347 °F | Military | 100 µA | DO-213AB, MELF (Glass) | 5 % | 1.2 V |
Microchip Technology JAN1N3017C-1 | |||||||||||||
Microchip Technology JAN1N3017BUR-1 | 7.5 V | MIL-PRF-19500/115 | 1 W | 4 Ohms | Surface Mount | DO-213AB (MELF, LL41) | -55 °C | 347 °F | Military | 150 µA | DO-213AB, MELF (Glass) | 5 % | 1.2 V |
Microchip Technology JANTX1N3017B-1 | 7.5 V | MIL-PRF-19500/115 | 1 W | 4 Ohms | Through Hole | DO-204AL (DO-41) | -55 °C | 347 °F | Military | 100 µA | Axial, DO-204AL, DO-41 | 5 % | 1.2 V |
Microchip Technology 1N3017B-1 | 7.5 V | 1 W | 4 Ohms | Through Hole | DO-204AL (DO-41) | -55 °C | 347 °F | 100 µA | Axial, DO-204AL, DO-41 | 5 % | 1.2 V | ||
Microchip Technology JANTXV1N3017C-1 | 7.5 V | MIL-PRF-19500/115 | 1 W | 4 Ohms | Through Hole | DO-204AL (DO-41) | -55 °C | 347 °F | Military | 100 µA | Axial, DO-204AL, DO-41 | 2 % | 1.2 V |
Microchip Technology JANTX1N3017C-1 | 7.5 V | MIL-PRF-19500/115 | 1 W | 4 Ohms | Through Hole | DO-204AL (DO-41) | -55 °C | 347 °F | Military | 100 µA | Axial, DO-204AL, DO-41 | 2 % | 1.2 V |
Microchip Technology 1N3017BUR-1 | 7.5 V | 1 W | 4 Ohms | Surface Mount | DO-213AB | -55 °C | 347 °F | 100 µA | DO-213AB, MELF | 5 % | 1.2 V | ||
Microchip Technology JAN1N3017D-1 | |||||||||||||
Microchip Technology JANTX1N3017D-1 | 7.5 V | MIL-PRF-19500/115 | 1 W | 4 Ohms | Through Hole | DO-204AL (DO-41) | -55 °C | 347 °F | Military | 100 µA | Axial, DO-204AL, DO-41 | 1 % | 1.2 V |
Description
General part information
1N3017 Series
This well established Zener diode series for the 1N3016B-1 through 1N3045B-1 JEDEC registration in the glass DO-41 package provides a glass hermetic seal for 6.8 to 110 volts. It is also well suited for high-reliability applications where it is available in JAN, JANTX, and JANTXV military qualifications. Lower voltages are also available in the 1N3821 through 1N3828 series (3.3 V to 7.5 V) in the same package (see separate data sheet).
