ESS-101-T-05

Active

Samtec Inc.

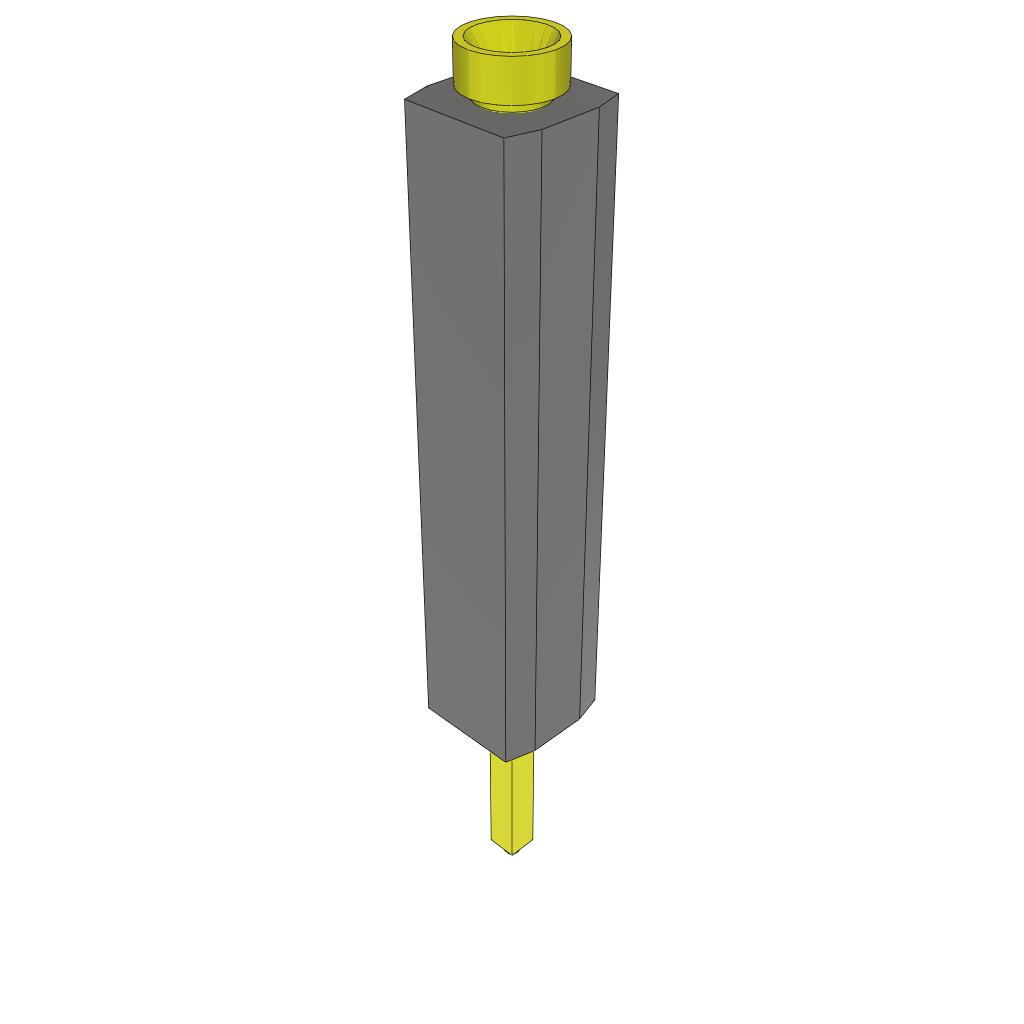

CONN SOCKET STRIP SKT 1 POS SOLDER ST TOP ENTRY THRU-HOLE BULK

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet ESS Datasheet

ESS-101-T-05

Active

Samtec Inc.

CONN SOCKET STRIP SKT 1 POS SOLDER ST TOP ENTRY THRU-HOLE BULK

Deep-Dive with AI

DocumentsDatasheet ESS Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ESS-101-T-05

Connector Type	Elevated Socket
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Length - Post	0.173 in
Contact Length - Post	4.4 mm
Contact Material	Beryllium Copper
Contact Shape	Circular
Contact Type	Female Socket
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.5 in
Insulation Height	12.7 mm
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	1
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Termination	Solder

ESS-101 Series

Part	Contact Length - Post [x]	Contact Length - Post [x]	Pitch - Mating	Pitch - Mating	Contact Finish - Mating	Number of Positions	Mounting Type	Insulation Color	Connector Type	Termination	Contact Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Height [z]	Insulation Height [z]	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions Loaded	Contact Type	Number of Rows	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Shape	Fastening Type	Insulation Material	Contact Finish - Post	Material Flammability Rating	Insulation Height	Insulation Height	Contact Length - Post	Contact Length - Post
Samtec Inc. ESS-101-G-03	3.12 mm	0.123 in	0.1 in	2.54 mm	Gold	1	Through Hole	Black	Elevated Socket	Solder	Beryllium Copper	10 çin	0.25 çm	0.3 in	7.62 mm	-55 °C	125 °C	All	Female Socket	1	10 çin	0.25 çm	Circular	Push-Pull	Liquid Crystal Polymer (LCP)	Gold	UL94 V-0
Samtec Inc. ESS-101-T-26	5.66 mm	0.223 in	0.1 in	2.54 mm	Gold	1	Through Hole	Black	Elevated Socket	Solder	Beryllium Copper	10 çin	0.25 çm	0.3 in	7.62 mm	-55 °C	125 °C	All	Female Socket	1			Circular	Push-Pull	Liquid Crystal Polymer (LCP)	Tin	UL94 V-0
Samtec Inc. ESS-101-TT-07			0.1 in	2.54 mm		1	Through Hole	Black	Elevated Socket	Solder	Beryllium Copper					-55 °C	125 °C	All	Female Socket	1			Circular	Push-Pull	Liquid Crystal Polymer (LCP)	Tin	UL94 V-0	0.4 in	10.16 mm	0.265 in	6.73 mm
Samtec Inc. ESS-101-G-05			0.1 in	2.54 mm	Gold	1	Through Hole	Black	Elevated Socket	Solder	Beryllium Copper	10 çin	0.25 çm			-55 °C	125 °C	All	Female Socket	1	10 çin	0.25 çm	Circular	Push-Pull	Liquid Crystal Polymer (LCP)	Gold	UL94 V-0	0.5 in	12.7 mm	0.173 in	4.4 mm
Samtec Inc. ESS-101-TT-25			0.1 in	2.54 mm		1	Through Hole	Black	Elevated Socket	Solder	Beryllium Copper					-55 °C	125 °C	All	Female Socket	1			Circular	Push-Pull	Liquid Crystal Polymer (LCP)	Tin	UL94 V-0	0.5 in	12.7 mm	0.173 in	4.4 mm
Samtec Inc. ESS-101-G-06			0.1 in	2.54 mm	Gold	1	Through Hole	Black	Elevated Socket	Solder	Beryllium Copper	10 çin	0.25 çm	0.3 in	7.62 mm	-55 °C	125 °C	All	Female Socket	1	10 çin	0.25 çm	Circular	Push-Pull	Liquid Crystal Polymer (LCP)	Gold	UL94 V-0			0.215 in	5.46 mm
Samtec Inc. ESS-101-TT-05			0.1 in	2.54 mm		1	Through Hole	Black	Elevated Socket	Solder	Beryllium Copper					-55 °C	125 °C	All	Female Socket	1			Circular	Push-Pull	Liquid Crystal Polymer (LCP)	Tin	UL94 V-0	0.5 in	12.7 mm	0.173 in	4.4 mm
Samtec Inc. ESS-101-G-25			0.1 in	2.54 mm	Gold	1	Through Hole	Black	Elevated Socket	Solder	Beryllium Copper	10 çin	0.25 çm			-55 °C	125 °C	All	Female Socket	1	10 çin	0.25 çm	Circular	Push-Pull	Liquid Crystal Polymer (LCP)	Gold	UL94 V-0	0.5 in	12.7 mm	0.173 in	4.4 mm
Samtec Inc. ESS-101-T-05			0.1 in	2.54 mm	Gold	1	Through Hole	Black	Elevated Socket	Solder	Beryllium Copper	10 çin	0.25 çm			-55 °C	125 °C	All	Female Socket	1			Circular	Push-Pull	Liquid Crystal Polymer (LCP)	Tin	UL94 V-0	0.5 in	12.7 mm	0.173 in	4.4 mm
Samtec Inc. ESS-101-G-26	5.66 mm	0.223 in	0.1 in	2.54 mm	Gold	1	Through Hole	Black	Elevated Socket	Solder	Beryllium Copper	10 çin	0.25 çm	0.3 in	7.62 mm	-55 °C	125 °C	All	Female Socket	1	10 çin	0.25 çm	Circular	Push-Pull	Liquid Crystal Polymer (LCP)	Gold	UL94 V-0

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Arrow	N/A	1	$ 0.55
		50	$ 0.42
		100	$ 0.34
Digikey	Bulk	1	$ 0.86

Description

General part information

ESS-101 Series

1 Position Elevated Socket Connector 0.100" (2.54mm) Through Hole Gold

Documents

Technical documentation and resources

Datasheet

ESS Datasheet

Datasheet
