1241768-1
ActiveTE Connectivity AMP Connectors

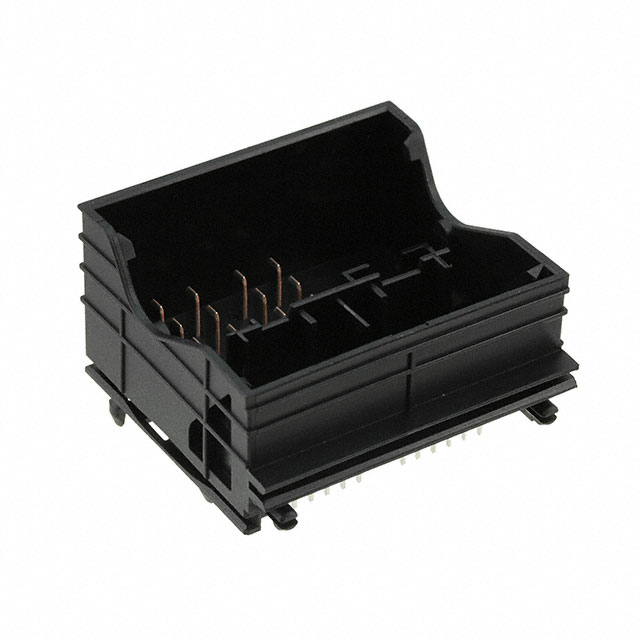

CONN HEADER VERT 40POS
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1241768-1
ActiveTE Connectivity AMP Connectors
CONN HEADER VERT 40POS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 1241768-1 |
|---|---|
| Applications | Automotive |
| Connector Type | Header |
| Contact Finish - Post | Tin |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Fastening Type | Latch Holder |
| Features | Board Guide, Board Lock |
| Insulation Color | Black |
| Insulation Height | 28.3 mm |
| Insulation Height | 1.114 in |
| Insulation Material | Polyamide (PA66), Nylon 6/6, Glass Filled |
| Mounting Type | Through Hole |
| Number of Positions [custom] | 40 |
| Number of Positions [custom] | 24 |
| Number of Positions [custom] | 16 |
| Number of Positions Loaded | 24 |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -40 °C |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Cable/Wire |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 6.21 | |
| 10 | $ 5.41 | |||
| 120 | $ 5.01 | |||
1241768 Series
CONN HEADER VERT 40POS
| Part | Insulation Color | Insulation Height | Insulation Height | Number of Positions Loaded | Features | Termination | Contact Finish - Post | Fastening Type | Contact Shape | Mounting Type | Shrouding | Connector Type | Operating Temperature [Min] | Operating Temperature [Max] | Contact Type | Applications | Insulation Material | Style | Number of Positions [custom] | Number of Positions [custom] | Number of Positions [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 1241768-1 | Black | 28.3 mm | 1.114 in | 24 | Board Guide, Board Lock | Solder | Tin | Latch Holder | Square | Through Hole | Shrouded - 4 Wall | Header | -40 °C | 80 C | Male Pin | Automotive | Polyamide (PA66), Nylon 6/6, Glass Filled | Board to Cable/Wire | 40 | 24 | 16 |
Description
General part information
1241768 Series
Connector Header Through Hole 40 (24 + 16 Power) position
