153246-2000-RB-WF

Active

80000903882 153246-2000-RB-WF=46/2MM/BMSKT/SMT/THRU-BRD/30U/ROHS/T&R

Search across all available documentation for this part.

Active

80000903882 153246-2000-RB-WF=46/2MM/BMSKT/SMT/THRU-BRD/30U/ROHS/T&R

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	153246-2000-RB-WF	153246 Series

Connector Type	Receptacle, Bottom or Top Entry	Receptacle, Bottom or Top Entry
Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Tin	Tin, Tin-Lead
Contact Finish Thickness - Mating	30 Áin	30 Áin
Contact Finish Thickness - Mating	0.76 Ám	0.76 Ám
Contact Material	Copper Alloy	Copper Alloy
Contact Shape	Square	Square
Contact Type	Female Socket	Female Socket
Fastening Type	Push-Pull	Push-Pull
Features	Pick and Place	Pick and Place
Insulation Color	Black	Black
Insulation Height	0.129 in	0.129 in
Insulation Height	3.28 mm	3.28 mm
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Surface Mount	Surface Mount
Number of Positions	46	46
Number of Positions Loaded	All	All
Number of Rows	2	2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-55 °C	-55 °C
Pitch - Mating [x]	0.079 in	0.079 in
Pitch - Mating [x]	2 mm	2 mm
Row Spacing - Mating	0.079 in	0.079 in
Row Spacing - Mating	2 mm	2 mm
Style	Board to Board, Cable	Board to Board, Cable
Termination	Solder	Solder
Voltage Rating	500 V	500 V

80000903882 153246-2000-RB-WF=46/2MM/BMSKT/SMT/THRU-BRD/30U/ROHS/T&R

Part	Number of Positions	Fastening Type	Termination	Contact Finish - Mating	Mounting Type	Number of Positions Loaded	Material Flammability Rating	Pitch - Mating [x]	Pitch - Mating [x]	Contact Material	Voltage Rating	Contact Shape	Operating Temperature [Max]	Operating Temperature [Min]	Contact Type	Connector Type	Insulation Color	Style	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Row Spacing - Mating	Row Spacing - Mating	Features	Number of Rows	Contact Finish - Post	Insulation Height	Insulation Height
3M 153246-2000-RB-WF	46	Push-Pull	Solder	Gold	Surface Mount	All	UL94 V-0	0.079 in	2 mm	Copper Alloy	500 V	Square	105 ░C	-55 °C	Female Socket	Receptacle, Bottom or Top Entry	Black	Board to Board, Cable	30 Áin	0.76 Ám	0.079 in	2 mm	Pick and Place	2	Tin	0.129 in	3.28 mm
3M 153246-2000-TB-WF	46	Push-Pull	Solder	Gold	Surface Mount	All	UL94 V-0	0.079 in	2 mm	Copper Alloy	500 V	Square	105 ░C	-55 °C	Female Socket	Receptacle, Bottom or Top Entry	Black	Board to Board, Cable	30 Áin	0.76 Ám	0.079 in	2 mm	Pick and Place	2	Tin-Lead	0.129 in	3.28 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	2400	$ 3.59
Newark	Each	1000	$ 4.65
		1000	$ 4.65

General part information

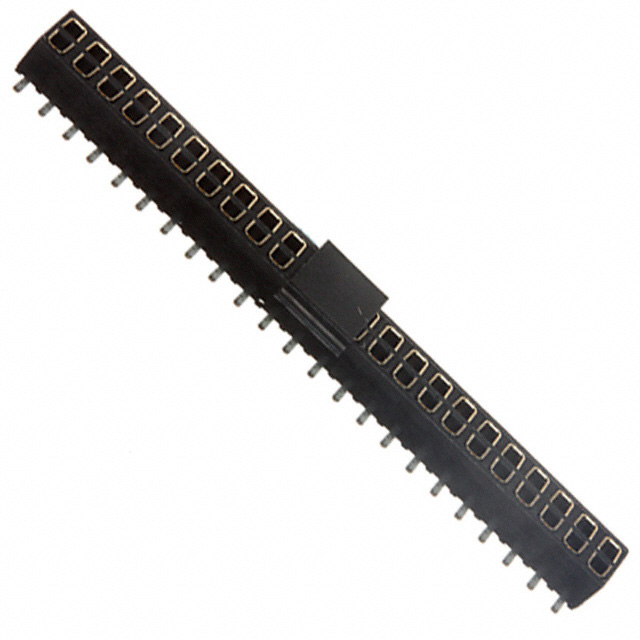

46 Position Receptacle, Bottom or Top Entry Connector 0.079" (2.00mm) Surface Mount Gold
