SSL-LX2573AD

Active

Lumex Opto/Components Inc.

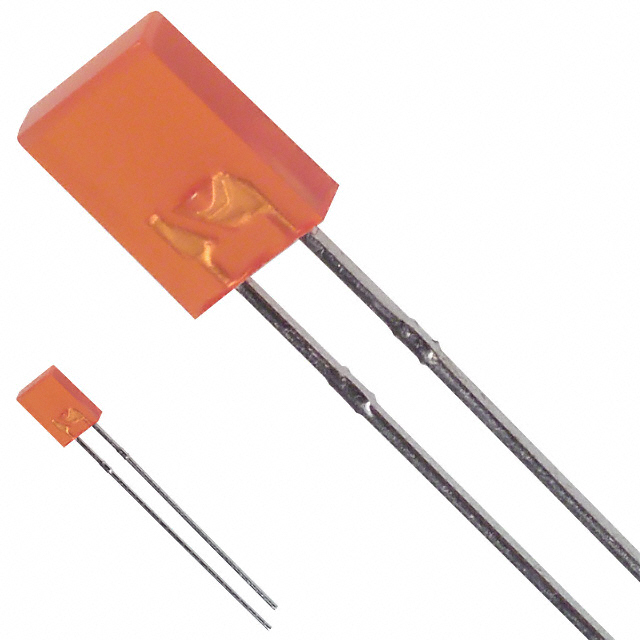

LED AMBER DIFF RECT 2MMX5MM T/H

Deep-Dive with AI

Search across all available documentation for this part.

SSL-LX2573AD

Active

Lumex Opto/Components Inc.

LED AMBER DIFF RECT 2MMX5MM T/H

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.29
		10	$ 0.19
		100	$ 0.13
		500	$ 0.09
		1000	$ 0.07
		2000	$ 0.07
		5000	$ 0.07

Description

General part information

SSL-LX2573 Series

Amber LED Indication - Discrete 2V Radial

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	SSL-LX2573AD	SSL-LX2573 Series

	-	-
Color	Amber	Green, Red, Amber, Blue, Yellow
Configuration	Standard	Standard, Independent
Current - Test	20 mA	20 mA
Height (Max) [Max] [z]	7 mm	7 mm
Lens Color	Amber	Green, Red, Amber, Blue, White, Yellow
Lens Size [x]	5 mm	5 mm
Lens Size [y]	2 mm	2 mm
Lens Style	Rectangle with Flat Top	Rectangle with Flat Top
Lens Transparency	Diffused	Diffused, Clear
Millicandela Rating	5 mcd	3 - 100 mcd
Mounting Type	Through Hole	Through Hole
Package / Case	Radial	Radial
Size / Dimension	-	2 mm
Size / Dimension	-	3 mm
Supplier Device Package	Rectangular 2mmx5mm	Rectangular 2mmx5mm, Rectangular 2mmx3mm
Viewing Angle	110 °	110 °
Viewing Angle	-	90 °
Voltage - Forward (Vf) (Typ)	2 V	1.7 - 4.5 V
Wavelength - Peak	605 nm	430 - 700 nm

SSL-LX2573 Series

LED GREEN DIFF RECT 2MMX5MM T/H

Part	Mounting Type	Wavelength - Peak	Lens Transparency	Color	Voltage - Forward (Vf) (Typ)	Millicandela Rating	Lens Style	Height (Max) [Max] [z]	Configuration	Current - Test	Lens Color	Package / Case	Lens Size [y]	Lens Size [x]	Viewing Angle	Supplier Device Package	Size / Dimension [y]	Size / Dimension [x]	Viewing Angle [custom]
Lumex Opto/Components Inc. SSL-LX2573PGD	Through Hole	555 nm	Diffused	Green	2.1 V	6 mcd	Rectangle with Flat Top	7 mm	Standard	20 mA	Green	Radial	2 mm	5 mm	110 °	Rectangular 2mmx5mm
Lumex Opto/Components Inc. SSL-LX2573HD	Through Hole	700 nm	Diffused	Red	2 V	3 mcd	Rectangle with Flat Top	7 mm	Standard	20 mA	Red	Radial	2 mm	5 mm	110 °	Rectangular 2mmx5mm
Lumex Opto/Components Inc. SSL-LX2573AD	Through Hole	605 nm	Diffused	Amber	2 V	5 mcd	Rectangle with Flat Top	7 mm	Standard	20 mA	Amber	Radial	2 mm	5 mm	110 °	Rectangular 2mmx5mm
Lumex Opto/Components Inc. SSL-LX2573ID	Through Hole	635 nm	Diffused	Red	2 V	10 mcd	Rectangle with Flat Top	7 mm	Standard	20 mA	Red	Radial	2 mm	5 mm	110 °	Rectangular 2mmx5mm
Lumex Opto/Components Inc. SSL-LX2573SUGD	Through Hole		Clear	Green	2.1 V	65 mcd	Rectangle with Flat Top	7 mm	Independent	20 mA	Green	Radial	2 mm	5 mm		Rectangular 2mmx3mm	2 mm	3 mm	90 °
Lumex Opto/Components Inc. SSL-LX2573USBD	Through Hole		Diffused	Blue	3.5 V	70 mcd	Rectangle with Flat Top	7 mm	Standard	20 mA	Blue	Radial	2 mm	5 mm	110 °	Rectangular 2mmx5mm
Lumex Opto/Components Inc. SSL-LX2573SID	Through Hole	636 nm	Diffused	Red	2 V	100 mcd	Rectangle with Flat Top	7 mm	Standard	20 mA	Red	Radial	2 mm	5 mm	110 °	Rectangular 2mmx5mm
Lumex Opto/Components Inc. SSL-LX2573GD	Through Hole	565 nm	Diffused	Green	2.2 V	10 mcd	Rectangle with Flat Top	7 mm	Standard	20 mA	Green	Radial	2 mm	5 mm	110 °	Rectangular 2mmx5mm
Lumex Opto/Components Inc. SSL-LX2573SBD/A	Through Hole	430 nm	Diffused	Blue	4.5 V	3 mcd	Rectangle with Flat Top	7 mm	Standard	20 mA	Blue	Radial	2 mm	5 mm	110 °	Rectangular 2mmx5mm
Lumex Opto/Components Inc. SSL-LX2573PGW-TD	Through Hole	555 nm	Diffused	Green	2.1 V	6 mcd	Rectangle with Flat Top	7 mm	Standard	20 mA	White	Radial	2 mm	5 mm	110 °	Rectangular 2mmx5mm
