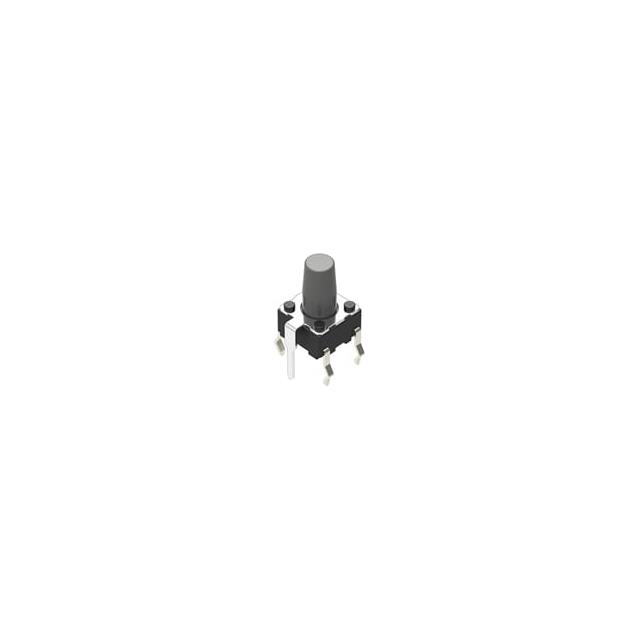

SKHHPPA010

Active

Alps Alpine

SWITCH TACTILE N.O. SPST ROUND BUTTON PC PINS 0.05A 12VDC 1.57N THRU-HOLE BULK

Search across all available documentation for this part.

Active

Alps Alpine

SWITCH TACTILE N.O. SPST ROUND BUTTON PC PINS 0.05A 12VDC 1.57N THRU-HOLE BULK

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Tactile Switch SPST-NO Top Actuated Through Hole

Technical documentation and resources

Specification	SKHHPPA010	SKHHP Series

Actuator Height off PCB, Vertical	9.5 mm	5 - 9.5 mm
Actuator Orientation	Top Actuated	Top Actuated
Actuator Type	Standard	Standard
Circuit	SPST-NO	SPST-NO
Contact Rating @ Voltage	0.05 A, 12 VDC	0.05 - 12 A
Illumination	Non-Illuminated	Non-Illuminated
Mechanical Life	500000 Cycles	500000 - 1000000 Cycles
Mounting Type	Through Hole	Through Hole
Operating Force	-	100 gf
Operating Temperature [Max]	90 °C	90 °C
Operating Temperature [Min]	-40 °C	-40 °C
Outline [x]	6 mm	6 mm
Outline [y]	6 mm	6 mm
Switch Function	Off-Mom	Off-Mom
Switch Travel	0.25 mm	0.25 mm
Termination Style	PC Pin	PC Pin

Part	Switch Function	Outline [y]	Outline [x]	Illumination	Mechanical Life	Actuator Height off PCB, Vertical	Switch Travel	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Orientation	Circuit	Termination Style	Contact Rating @ Voltage	Actuator Type	Operating Force
Alps Alpine SKHHPPA010	Off-Mom	6 mm	6 mm	Non-Illuminated	500000 Cycles	9.5 mm	0.25 mm	Through Hole	90 °C	-40 °C	Top Actuated	SPST-NO	PC Pin	0.05 A, 12 VDC	Standard
Alps Alpine SKHHPMA010	Off-Mom	6 mm	6 mm	Non-Illuminated	500000 Cycles	5 mm	0.25 mm	Through Hole	90 °C	-40 °C	Top Actuated	SPST-NO	PC Pin	0.05 A, 12 VDC	Standard
Alps Alpine SKHHPKA010	Off-Mom	6 mm	6 mm	Non-Illuminated	1000000 Cycles	5 mm	0.25 mm	Through Hole	90 °C	-40 °C	Top Actuated	SPST-NO	PC Pin	0.05 A, 12 VDC	Standard	100 gf
Alps Alpine SKHHPNA010	Off-Mom	6 mm	6 mm	Non-Illuminated	1000000 Cycles	9.5 mm	0.25 mm	Through Hole	90 °C	-40 °C	Top Actuated	SPST-NO	PC Pin	0.05 A, 12 VDC	Standard	100 gf
