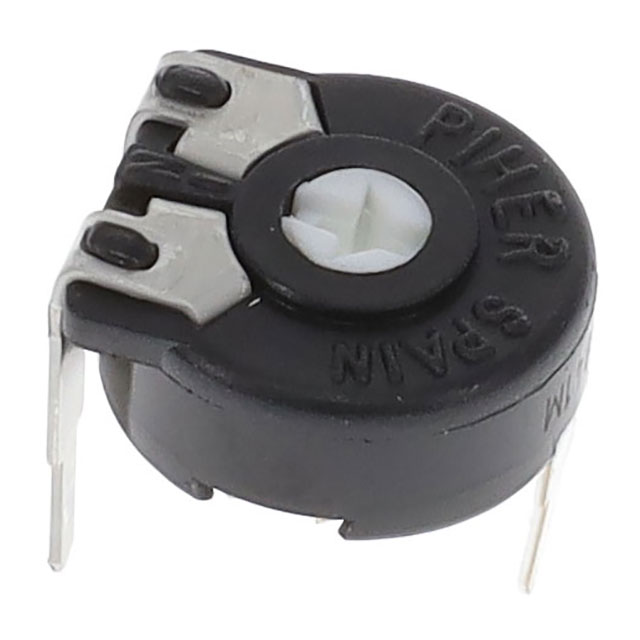

Specification	PT10LV10-202A2020-PM-S

Adjustment Type	Top Adjustment
Mounting Type	Through Hole
Number of Turns	1 turns
Power (Watts)	150 mW
Resistance	2 kOhm
Resistive Material	Carbon
Size / Dimension Diameter	0.406 in
Size / Dimension Shape	Round
Temperature Coefficient	300 ppm/°C
Termination Style	PC Pins
Tolerance	20 %

PT10LV10 Series

Part	Power (Watts)	Temperature Coefficient	Number of Turns	Termination Style	Size / Dimension Diameter	Size / Dimension Shape	Resistance	Mounting Type	Tolerance	Resistive Material	Adjustment Type
Amphenol Piher Sensing Systems PT10LV10-104A2020-I-PM-S	150 mW	300 ppm/°C	1 turns	PC Pins	0.406 in	Round	100 kOhm	Through Hole	20 %	Carbon	Top Adjustment
Amphenol Piher Sensing Systems PT10LV10-102A2020-S	150 mW	300 ppm/°C	1 turns	PC Pins	0.406 in	Round	1 kOhm	Through Hole	20 %	Carbon	Top Adjustment
Amphenol Piher Sensing Systems PT10LV10-203A2020-S	150 mW	300 ppm/°C	1 turns	PC Pins	0.406 in	Round	20 kOhm	Through Hole	20 %	Carbon	Top Adjustment
Amphenol Piher Sensing Systems PT10LV10-252A2020-PM-S	150 mW	300 ppm/°C	1 turns	PC Pins	0.406 in	Round	2.5 kOhm	Through Hole	20 %	Carbon	Top Adjustment
Amphenol Piher Sensing Systems PT10LV10-253A2020-PM-S	150 mW	300 ppm/°C	1 turns	PC Pins	0.406 in	Round	25 kOhm	Through Hole	20 %	Carbon	Top Adjustment
Amphenol Piher Sensing Systems PT10LV10-253A2020-S	150 mW	300 ppm/°C	1 turns	PC Pins	0.406 in	Round	25 kOhm	Through Hole	20 %	Carbon	Top Adjustment
Amphenol Piher Sensing Systems PT10LV10-223A2020-PM-S	150 mW	300 ppm/°C	1 turns	PC Pins	0.406 in	Round	22 kOhm	Through Hole	20 %	Carbon	Top Adjustment
Amphenol Piher Sensing Systems PT10LV10-102A2020-PM-S	150 mW	300 ppm/°C	1 turns	PC Pins	0.406 in	Round	1 kOhm	Through Hole	20 %	Carbon	Top Adjustment
Amphenol Piher Sensing Systems PT10LV10-205A3030-S	150 mW	300 ppm/°C	1 turns	PC Pins	0.406 in	Round	2 MOhm	Through Hole	30 %	Carbon	Top Adjustment
Amphenol Piher Sensing Systems PT10LV10-103A2020-S	150 mW	300 ppm/°C	1 turns	PC Pins	0.406 in	Round	10 kOhm	Through Hole	20 %	Carbon	Top Adjustment

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

PT10LV10-202A2020-PM-S | Datasheet
