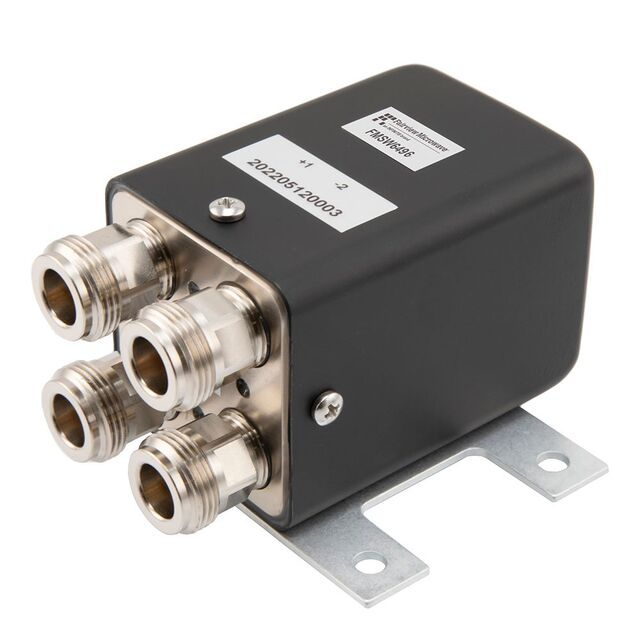

FMSW6496
ActiveFairview Microwave
EM RELAY SWITCH 12.4 GHZ 28 V TY
FMSW6496
ActiveFairview Microwave
EM RELAY SWITCH 12.4 GHZ 28 V TY
Description
General part information
FMSW6496
RF Switch IC General Purpose 50Ohm
Technical Specifications
Parameters and characteristics for this part
| Specification | FMSW6496 |
|---|---|
| Frequency Range (Max) | 12.4 GHz |
| Frequency Range (Min) | 0 Hz |
| Impedance | 50 Ohm |
| Insertion Loss | 0.2 dB |
| Isolation | 70 dB |
| Mounting Type | Chassis Mount |
| Operating Temperature (Max) | 65 °C |
| Operating Temperature (Min) | -25 °C |
| RF Type | General Purpose |
| Test Frequency | 12 GHz |
| Topology | Reflective |
| Voltage - Supply | 28 V |
