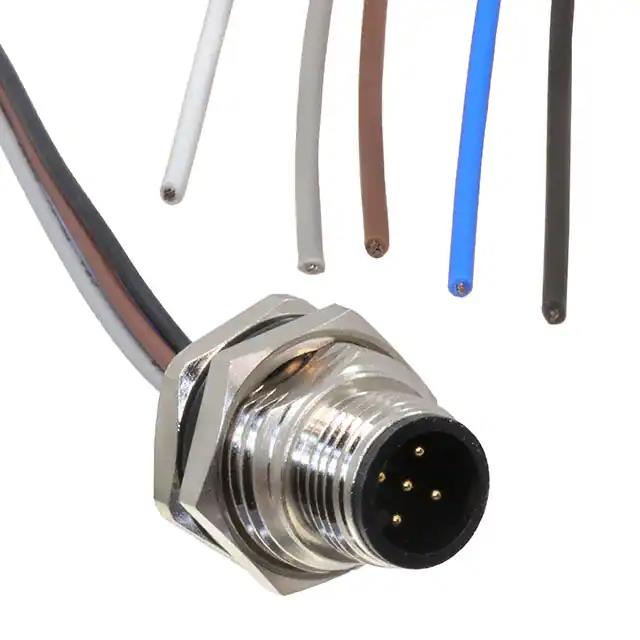

MPM12A05I12DR01
ActiveMH Connectors
CIRC CBL 5POS RCPT TO WIRE 1'
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MPM12A05I12DR01
ActiveMH Connectors
CIRC CBL 5POS RCPT TO WIRE 1'
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MPM12A05I12DR01 |
|---|---|
| 1st Connector Gender | Male Pins |
| 1st Connector Mounting Type | Panel Mount |
| 1st Connector Number of Positions | 5 |
| 1st Connector Number of Positions Loaded | All |
| 1st Connector Orientation [custom] | Keyed |
| 1st Connector Shell Size - Insert | M12 |
| 1st Connector Type | Receptacle |
| 2nd Connector Type | Wire Leads |
| Assembly Configuration | Standard |
| Cable Type | Individual |
| Color | Multiple |
| Ingress Protection | IP67/IP68 - Dust Tight, Waterproof |
| Length | 1 ft |
| Length | 304.8 mm |
| Shielding | Unshielded |
| Usage | Industrial Environments |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 17.50 | |
| 10 | $ 16.65 | |||
Description
General part information
MPM12A05I12DR01
Circular Cable Assembly Unshielded 1.00' (304.80mm)
Documents
Technical documentation and resources
