1-103648-1
ActiveTE Connectivity AMP Connectors

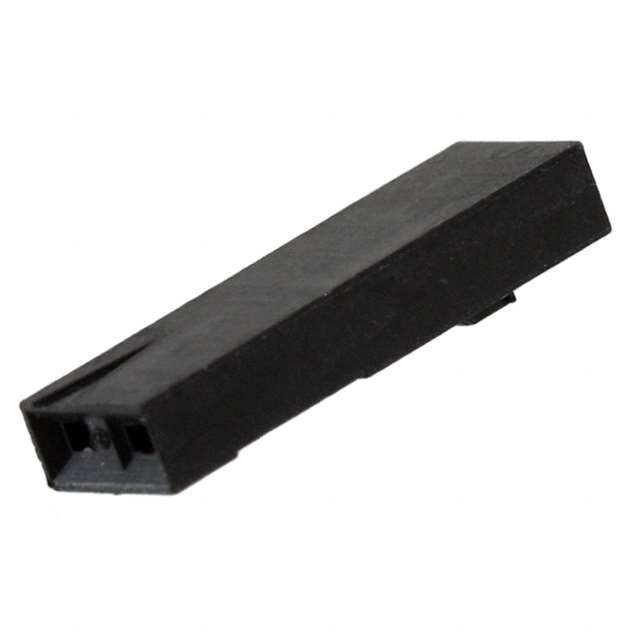

CONN RCPT HSG 12POS 2.54MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1-103648-1
ActiveTE Connectivity AMP Connectors
CONN RCPT HSG 12POS 2.54MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 1-103648-1 | 103648 Series |
|---|---|---|
| Color | Black | Black |
| Connector Type | Receptacle | Receptacle |
| Contact Termination | Crimp | Crimp |
| Contact Type | Female Socket | Female Socket |
| Insulation Material | Thermoplastic | Thermoplastic |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Note | Contacts Not Included | Contacts Not Included |
| Number of Positions | 12 | 4 - 23 |
| Number of Rows | 1 | 1 |
| Operating Temperature [Max] | 105 ░C | 105 ░C |
| Operating Temperature [Min] | -65 ░C | -65 ░C |
| Pitch [x] | 2.54 mm | 2.54 mm |
| Pitch [x] | 0.1 in | 0.1 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 500 | $ 1.54 | |
103648 Series
CONN RCPT HSG 13POS 2.54MM
| Part | Number of Rows | Contact Type | Insulation Material | Color | Number of Positions | Connector Type | Pitch [x] | Pitch [x] | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Contact Termination | Note |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 1-103648-2 | 1 | Female Socket | Thermoplastic | Black | 13 | Receptacle | 2.54 mm | 0.1 in | -65 ░C | 105 ░C | Free Hanging (In-Line) | Crimp | Contacts Not Included |
TE Connectivity AMP Connectors 2-103648-2 | 1 | Female Socket | Thermoplastic | Black | 23 | Receptacle | 2.54 mm | 0.1 in | -65 ░C | 105 ░C | Free Hanging (In-Line) | Crimp | Contacts Not Included |
TE Connectivity AMP Connectors 1-103648-4 | 1 | Female Socket | Thermoplastic | Black | 15 | Receptacle | 2.54 mm | 0.1 in | -65 ░C | 105 ░C | Free Hanging (In-Line) | Crimp | Contacts Not Included |
TE Connectivity AMP Connectors 2-103648-0 | 1 | Female Socket | Thermoplastic | Black | 21 | Receptacle | 2.54 mm | 0.1 in | -65 ░C | 105 ░C | Free Hanging (In-Line) | Crimp | Contacts Not Included |
TE Connectivity AMP Connectors 103648-6 | 1 | Female Socket | Thermoplastic | Black | 7 | Receptacle | 2.54 mm | 0.1 in | -65 ░C | 105 ░C | Free Hanging (In-Line) | Crimp | Contacts Not Included |
TE Connectivity AMP Connectors 2-103648-1 | 1 | Female Socket | Thermoplastic | Black | 22 positions | Receptacle | 2.54 mm | 0.1 in | -65 ░C | 105 ░C | Free Hanging (In-Line) | Crimp | Contacts Not Included |
TE Connectivity AMP Connectors 1-103648-1 | 1 | Female Socket | Thermoplastic | Black | 12 | Receptacle | 2.54 mm | 0.1 in | -65 ░C | 105 ░C | Free Hanging (In-Line) | Crimp | Contacts Not Included |
TE Connectivity AMP Connectors 103648-3 | 1 | Female Socket | Black | 4 | Receptacle | 2.54 mm | 0.1 in | Free Hanging (In-Line) | Crimp | Contacts Not Included | |||
TE Connectivity AMP Connectors 103648-2 | 1 | Female Socket | Thermoplastic | Black | Receptacle | 2.54 mm | 0.1 in | -65 ░C | 105 ░C | Free Hanging (In-Line) | Crimp | Contacts Not Included | |
TE Connectivity AMP Connectors 103648-4 | 1 | Female Socket | Thermoplastic | Black | Receptacle | 2.54 mm | 0.1 in | -65 ░C | 105 ░C | Free Hanging (In-Line) | Crimp | Contacts Not Included |
Description
General part information
103648 Series
12 Rectangular Connectors - Housings Receptacle Black 0.100" (2.54mm)
Documents
Technical documentation and resources
