BR1002SG-G

Active

Comchip Technology

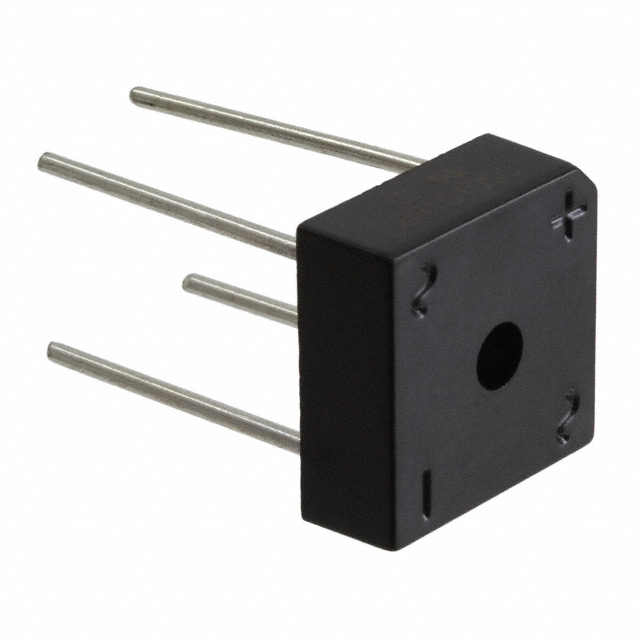

BRIDGE RECT 1PHASE 200V 10A BR-8

Search across all available documentation for this part.

Active

Comchip Technology

BRIDGE RECT 1PHASE 200V 10A BR-8

Technical Specifications

Parameters and characteristics for this part

Specification	BR1002SG-G

Current - Average Rectified (Io)	10 A
Current - Reverse Leakage @ Vr	10 µA
Diode Type	Single Phase
Mounting Type	Chassis Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C
Package / Case	4-Square, BR-8
Supplier Device Package	BR-8
Technology	Standard
Voltage - Forward (Vf) (Max) @ If	1.1 V
Voltage - Peak Reverse (Max) [Max]	200 V

BRIDGE RECT 1PHASE 200V 10A BR-8

Part	Current - Reverse Leakage @ Vr	Operating Temperature [Min]	Operating Temperature [Max]	Supplier Device Package	Diode Type	Mounting Type	Package / Case	Voltage - Forward (Vf) (Max) @ If	Technology	Voltage - Peak Reverse (Max) [Max]	Current - Average Rectified (Io)
Comchip Technology BR1002SG-G	10 µA	-55 °C	150 °C	BR-8	Single Phase	Chassis Mount	4-Square, BR-8	1.1 V	Standard	200 V	10 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	2000	$ 0.98

General part information

Bridge Rectifier Single Phase Standard 200 V Chassis Mount BR-8
