TSH511CF
ActiveSTMicroelectronics
RF RX FM 2.3MHZ/2.8MHZ 44TQFP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TSH511CF
ActiveSTMicroelectronics
RF RX FM 2.3MHZ/2.8MHZ 44TQFP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TSH511CF |
|---|---|
| Antenna Connector | PCB, Surface Mount |
| Current - Receiving | 15 mA |
| Data Interface | Surface Mount, PCB |
| Frequency [Max] | 2.8 MHz |
| Frequency [Min] | 2.3 MHz |
| Modulation or Protocol | FM |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |

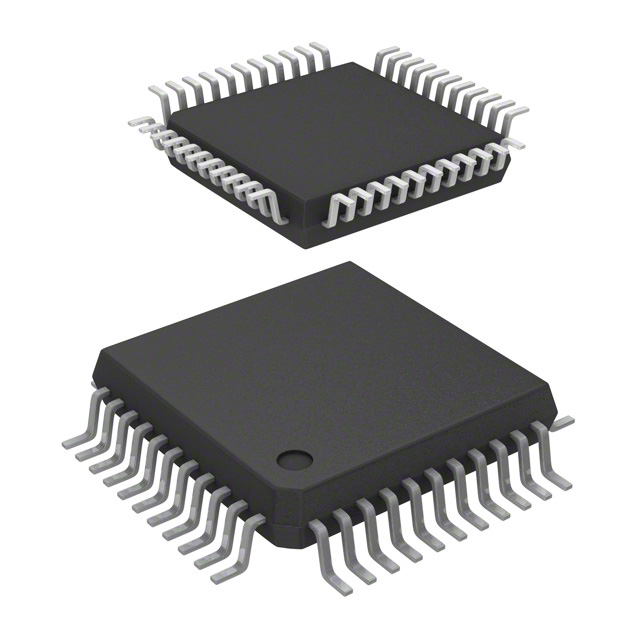

| Package / Case | 44-LQFP |
| Sensitivity | -95 dBm |
| Supplier Device Package | 44-TQFP (10x10) |
| Voltage - Supply [Max] | 5.5 V |
| Voltage - Supply [Min] | 2.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
TSH511 Series
RF RX FM 2.3MHZ/2.8MHZ 44TQFP
| Part | Package / Case | Data Interface | Operating Temperature [Max] | Operating Temperature [Min] | Antenna Connector | Supplier Device Package | Current - Receiving | Frequency [Min] | Frequency [Max] | Sensitivity | Voltage - Supply [Min] | Voltage - Supply [Max] | Modulation or Protocol | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
STMicroelectronics TSH511CF | 44-LQFP | PCB, Surface Mount | 85 °C | -40 °C | PCB, Surface Mount | 44-TQFP (10x10) | 15 mA | 2.3 MHz | 2.8 MHz | -95 dBm | 2.3 V | 5.5 V | FM | Surface Mount |
Description
General part information
TSH511 Series
- RF Receiver FM 2.3MHz ~ 2.8MHz -95dBm PCB, Surface Mount 44-TQFP (10x10)
Documents
Technical documentation and resources
