8325-6000

Unknown

3M (TC)

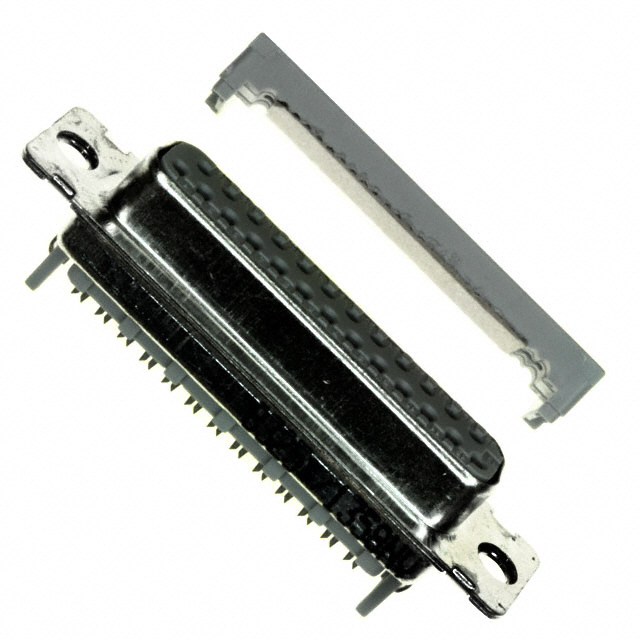

D SUB CONNECTOR, DB25, 25 CONTACTS, RECEPTACLE, IDC / IDT, DB, 8300 SERIES, STEEL BODY

Deep-Dive with AI

DocumentsDatasheet Interconnect Catalog +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	8325-6000

Color	Gray
Connector Style	D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Copper Alloy
Contact Type	Signal
Dielectric Material	Glass Filled, Polybutylene Terephthalate (PBT), Polyester
Features	Feed Through
Flange Feature	Housing/Shell (Unthreaded)
Material Flammability Rating	UL94 V-0
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Shell Size, Connector Layout [custom]	DB, B
Shell Size, Connector Layout [custom]	3
Termination	IDC, Ribbon Cable

8325 Series

Part	Connector Type	Connector Style	Contact Finish Thickness	Contact Finish Thickness	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Operating Temperature [Max]	Operating Temperature [Min]	Number of Rows	Dielectric Material	Termination	Flange Feature	Contact Finish	Material Flammability Rating	Color	Contact Type	Contact Material	Features
3M (TC) 8325-7009	Receptacle Female Sockets	D-Sub	0.76 Ám	30 Áin	B DB	3	105 ░C	-55 °C	2	Glass Filled Polybutylene Terephthalate (PBT) Polyester	IDC Ribbon Cable	Housing/Shell (Unthreaded)	Gold	UL94 V-0	Gray	Signal	Copper Alloy
3M (TC) 8325-7003	Receptacle Female Sockets	D-Sub	0.76 m	30 in	B DB	3	105 ░C	-55 °C	2	Glass Filled Polybutylene Terephthalate (PBT) Polyester	IDC Ribbon Cable	Housing/Shell (4-40)	Gold	UL94 V-0	Gray	Signal	Copper Alloy
3M (TC) 8325-6000	Receptacle Female Sockets	D-Sub	0.76 Ám	30 Áin	B DB	3	105 ░C	-55 °C	2	Glass Filled Polybutylene Terephthalate (PBT) Polyester	IDC Ribbon Cable	Housing/Shell (Unthreaded)	Gold	UL94 V-0	Gray	Signal	Copper Alloy	Feed Through
