FMCA2337-60
ActiveFairview Microwave
CBL ASSY 4.3-10PLUG-4.3-10JACK 6
FMCA2337-60
ActiveFairview Microwave
CBL ASSY 4.3-10PLUG-4.3-10JACK 6
Description
General part information
FMCA2337-60

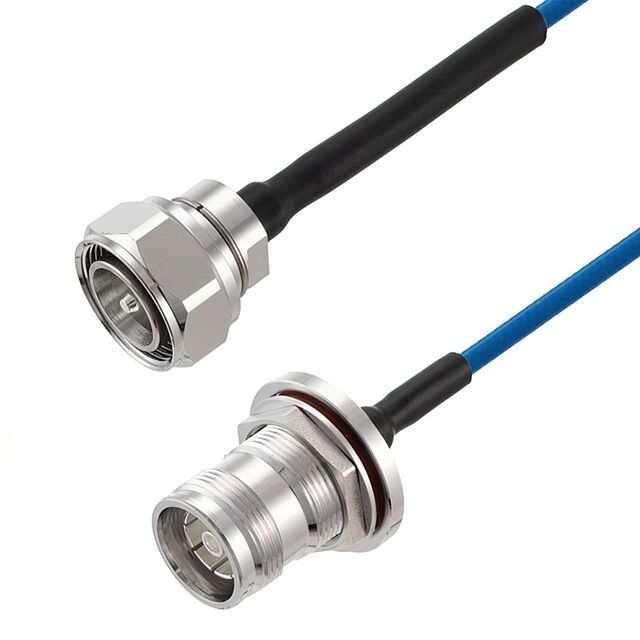

Cable Assembly Coaxial 4.3/10 to 4.3/10 TFT-402LF 60.0" (1.5m) 5.0'
Technical Specifications
Parameters and characteristics for this part
| Specification | FMCA2337-60 |
|---|---|
| 1st Connector | 4.3/10 Jack |
| 1st Connector - Type | Jack |
| 1st Connector Dimension (1) | 4.3 mm, 4.3 |
| 1st Connector Dimension (2) | 10, 10 mm |
| 1st Connector Mounting Feature | Front Side Nut, Bulkhead |
| 1st Connector Mounting Type | Panel Mount |
| 1st Connector Size (Dimension 1) | 4.3 mm |
| 1st Connector Size (Dimension 2) | 10 mm |
| 1st Connector Type | Jack |
| 1st Contact Gender | Female |
| 2nd Connector | 4.3/10 Plug |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 50 Ohms |
| Cable Type | 402LF, TFT |
| Color | Blue |
| Connector Impedance | 50 Ohms |
| Frequency - Max | 5.8 GHz |
| Length | 1524 mm |
| Length (ft) | 5 ft |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -55 °C |
| Overall Impedance | 50 Ohms |
| Style | 4.3/10 to 4.3/10 |
